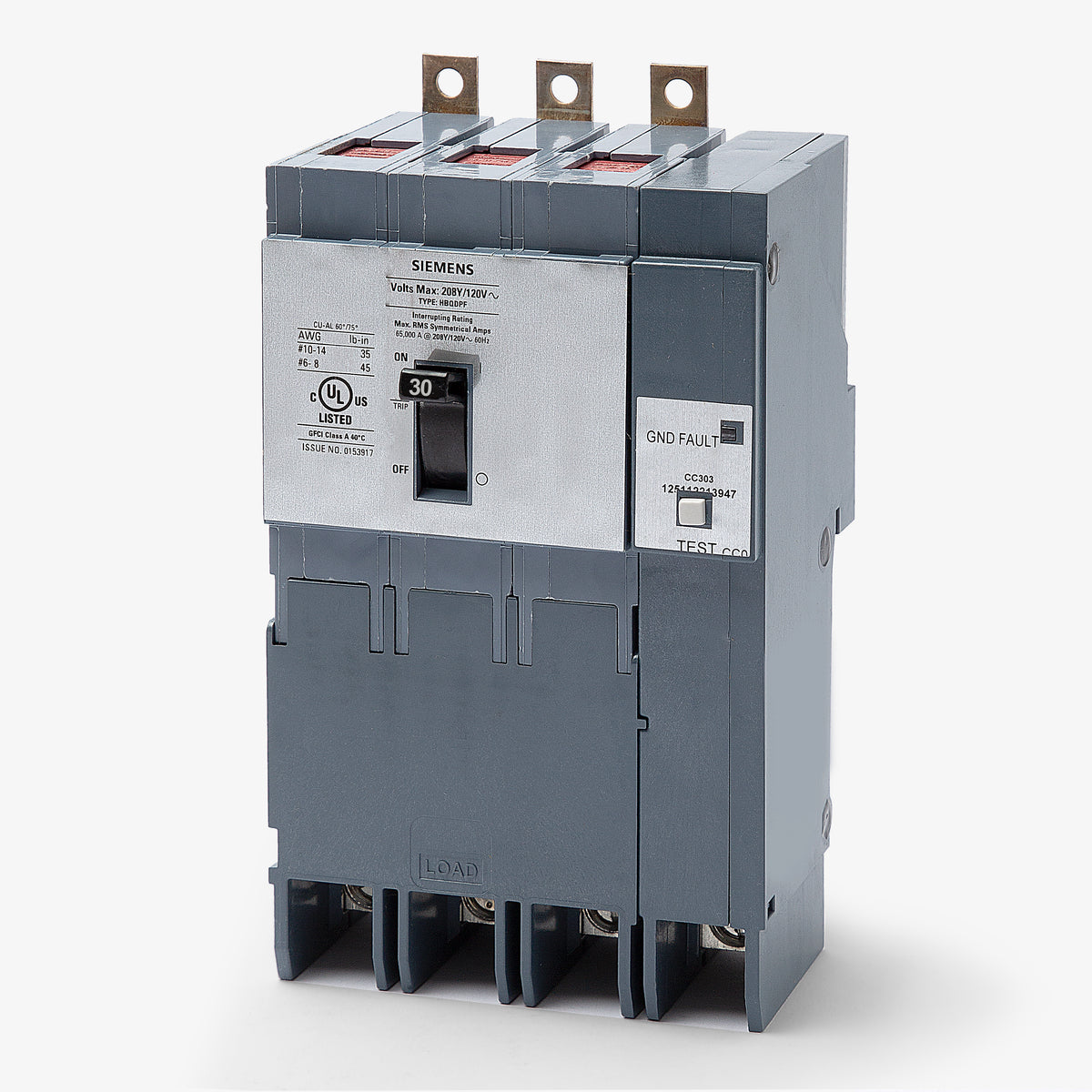

Siemens B330GFHH GFCI Molded Case Circuit Breaker
- 30A
- 3 Pole

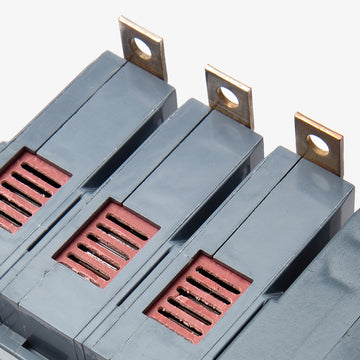

- Bolt-On
Quantity
Siemens B330GFHH - 30A GFCI Molded Case Circuit Breaker
New
Quantity
Description
Engineered for personnel safety, the Siemens B330GFHH provides 5mA ground fault protection for 30A, 208Y/120VAC commercial and industrial circuits. It ensures compliance with NEC standards for areas requiring GFCI protection. Designed with a secure bolt-on connection, this 3-pole breaker mounts into Siemens P1 panelboards.Specifications
| Brand | Siemens |
|---|---|
| Series | B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
7 answersCan the B330GFHH be used in standard residential load centers?
No. The B330GFHH is a bolt-on circuit breaker intended for commercial and industrial Siemens P1 panelboards. It will not fit in standard plug-on residential load centers.
Does the Siemens B330GFHH provide Class A personnel protection or equipment protection?
This breaker provides Class A 5mA ground fault circuit interruption (GFCI) designed specifically for personnel safety. It trips when leakage current exceeds the 5mA threshold.
Does the B330GFHH require balanced loads across all three phases to prevent false ground fault tripping?
No. Siemens 3-pole GFCI breakers monitor residual differential current to detect leakage. They do not require a perfectly balanced phase load for the ground fault detection to operate correctly.
How is the neutral connection configured on the B330GFHH?

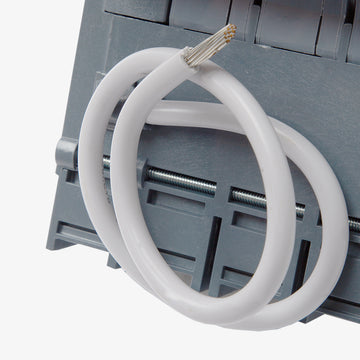

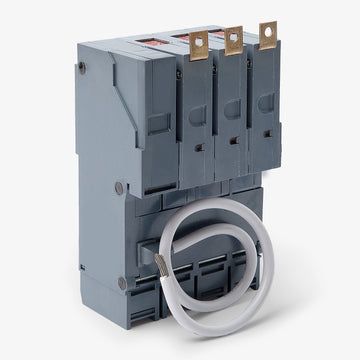

This GFCI breaker comes equipped with a pigtail neutral wire. The pigtail must be terminated at the panel neutral bar to provide a reference point and power the internal ground fault sensing circuitry.
What is the Siemens breaker type designation for the B330GFHH?
The B330GFHH is classified as a Type HBQDPF breaker within the Siemens B-frame family.
What does the HH suffix indicate on the B330GFHH catalog number?
The HH designation signifies a high interrupting rating. For the Siemens B-frame GFCI line, the HH suffix specifically indicates a maximum interrupting capacity of 65kAIC at 240VAC.
Does the B330GFHH include a self-testing feature?
Yes. To comply with UL 943 standards for Class A GFCI devices, this breaker includes an automated self-test function that continuously verifies the internal ground fault circuitry is operating correctly.
