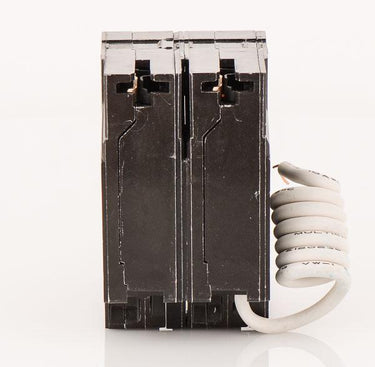

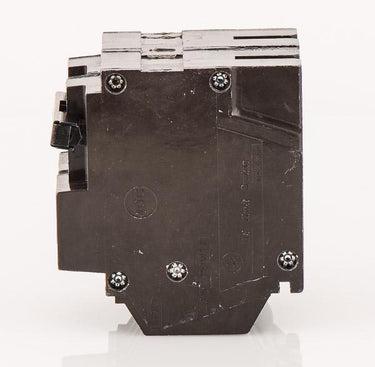

ABB / General Electric THQL2130GF1 GFCI Molded Case Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Quantity
ABB / General Electric THQL2130GF1 - 30A GFCI Molded Case Circuit Breaker
New
Quantity
Description
Providing continuous safety monitoring, the GE THQL2130GF1 is a 30-amp, two-pole GFCI breaker equipped with self-test functionality. It delivers 5mA Class A ground fault protection for damp or wet locations. This plug-on breaker features a pigtail neutral connection and installs into GE PowerMark Gold and ABB ReliaHome load centers. It serves as a predecessor to the THQL2130GFT model. With a 10 kAIC rating at 120/240VAC, the unit includes an internal common trip and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2130GF1 |
| Series | THQL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Class A GFCI (5mA), Common Trip, Self-Test, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich electrical panels are compatible with the THQL2130GF1?
This plug-on breaker is compatible with legacy GE PowerMark Gold load centers and the newer ABB ReliaHome series panels.
What level of ground fault protection does this breaker provide?
The THQL2130GF1 provides Class A 5mA ground fault protection. This level of protection is designed to detect low-level current leaks and shut off power to prevent severe electrical shock, making it suitable for damp or wet locations.
How do I connect the neutral for this GFCI breaker?

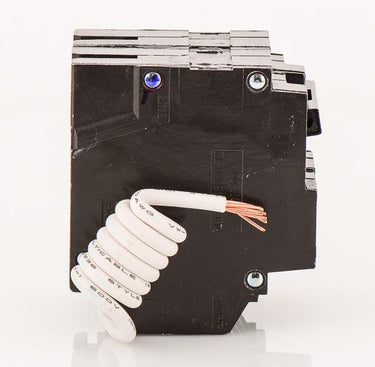

This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in your panel to power the breaker's internal ground fault circuitry.
Can I use this 2-pole GFCI breaker for a 240V load that does not have a neutral wire?
Yes. When supplying a 240V-only load without a load neutral, you leave the breaker's load neutral terminal empty. However, you must still connect the breaker's white pigtail wire to the panel's neutral bus bar for the GFCI protection to function.
Why is this breaker listed under both ABB and General Electric?
Following ABB's acquisition of GE Industrial Solutions, legacy GE residential electrical products are transitioning to the ABB brand. The THQL2130GF1 is part of this transition and is fully compatible with both GE and ABB Q-Line systems.
What is the difference between the THQL2130GF1 and the THQL2130GFT?
The THQL2130GF1 is the direct predecessor to the THQL2130GFT. Both are 30A, 2-pole Class A GFCI breakers that fit the same panels, but the GFT model represents the newer ABB-branded version.
Does the THQL2130GF1 have a self-test feature?

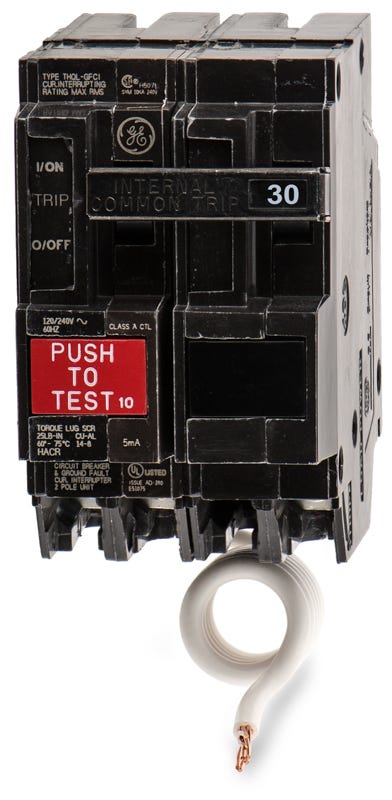

Yes, it includes a push-button self-test mechanism and an LED indicator. This allows users to periodically validate that the ground fault detection capability is working properly.
