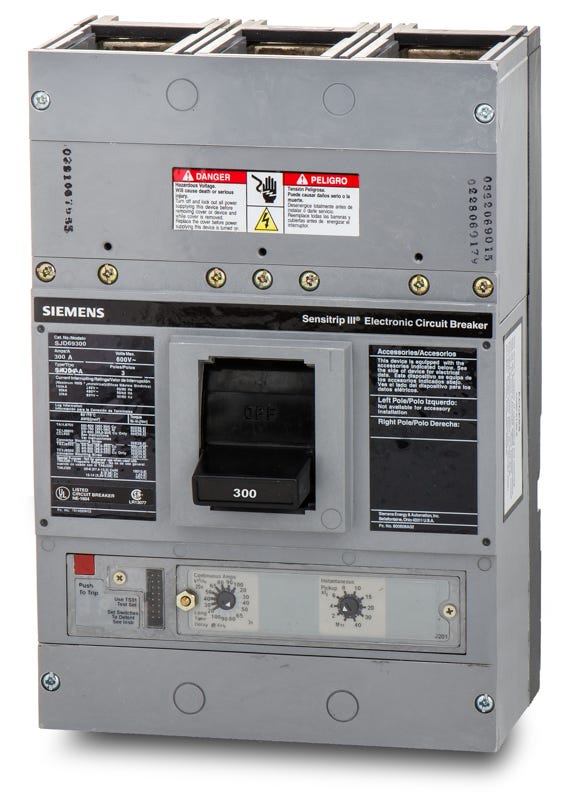

Siemens SJD69300 Molded Case Circuit Breaker
- 300A
- 3 Pole
- Unit Mount
Quantity
Siemens SJD69300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens SJD69300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | SJD69300 |
| Series | SJD6 |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 60-300A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Type P4, P5, SPP), Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Visual Trip Indicator |
Quantity
Siemens SJD69300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | SJD6 |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 60-300A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Type P4, P5, SPP), Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Visual Trip Indicator |
Description
The Siemens SJD69300 is a 3-pole, 300A molded case circuit breaker from the Sentron family. Designed for industrial applications, this JD Frame device delivers reliable power distribution. This unit mount breaker installs into Siemens Sentron P4, P5, and SPP panelboards. For modern upgrades, it can be replaced by the 3VA Series using a retrofit kit. Rated for 35 kAIC at 480VAC, it utilizes a Sensitrip III electronic trip unit with adjustable long-time and instantaneous (LI) settings.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SJD69300 |
| Series | SJD6 |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 60-300A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Type P4, P5, SPP), Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Visual Trip Indicator |
Product FAQs
6 answersWhat enclosures are compatible with the Siemens SJD69300 circuit breaker?
The SJD69300 fits Siemens JD-frame enclosures, including the J6N1 (NEMA 1 indoor), J6N3R (NEMA 3R outdoor), and J6N12 (NEMA 12 dust-tight).
What is the difference between the Siemens JD63B300 and the SJD69300?
Both breakers share the same 300A, 3-pole JD frame footprint. However, the JD63B300 uses a standard thermal-magnetic trip unit, while the SJD69300 features a Sensitrip III solid-state electronic trip unit for more precise, adjustable protection.
What is the difference between the SJD69300 and the SJD69300NT?
The standard SJD69300 features Long-Time and Instantaneous (LI) trip functions. The SJD69300NT includes a Short-Time trip function, providing Long-Time, Short-Time, and Instantaneous (LSI) protection for enhanced coordination.
What does the "G" stand for in the SJD69300G catalog number?
The "G" suffix indicates that the breaker includes integral ground fault protection (LIG trip functions) in addition to the standard long-time and instantaneous protection found on the base SJD69300.
Can the Siemens SJD69300 be reverse fed?
Yes. Because the SJD69300 is built with a non-interchangeable electronic trip unit, it meets UL 489 requirements for reverse feeding applications.
Which lug kits are standard for the SJD69300 breaker?
The standard line and load lug kit for this JD-frame breaker is the TA2J6500. This aluminum body lug accepts two wires per phase ranging from 3/0 AWG to 500 kcmil.
