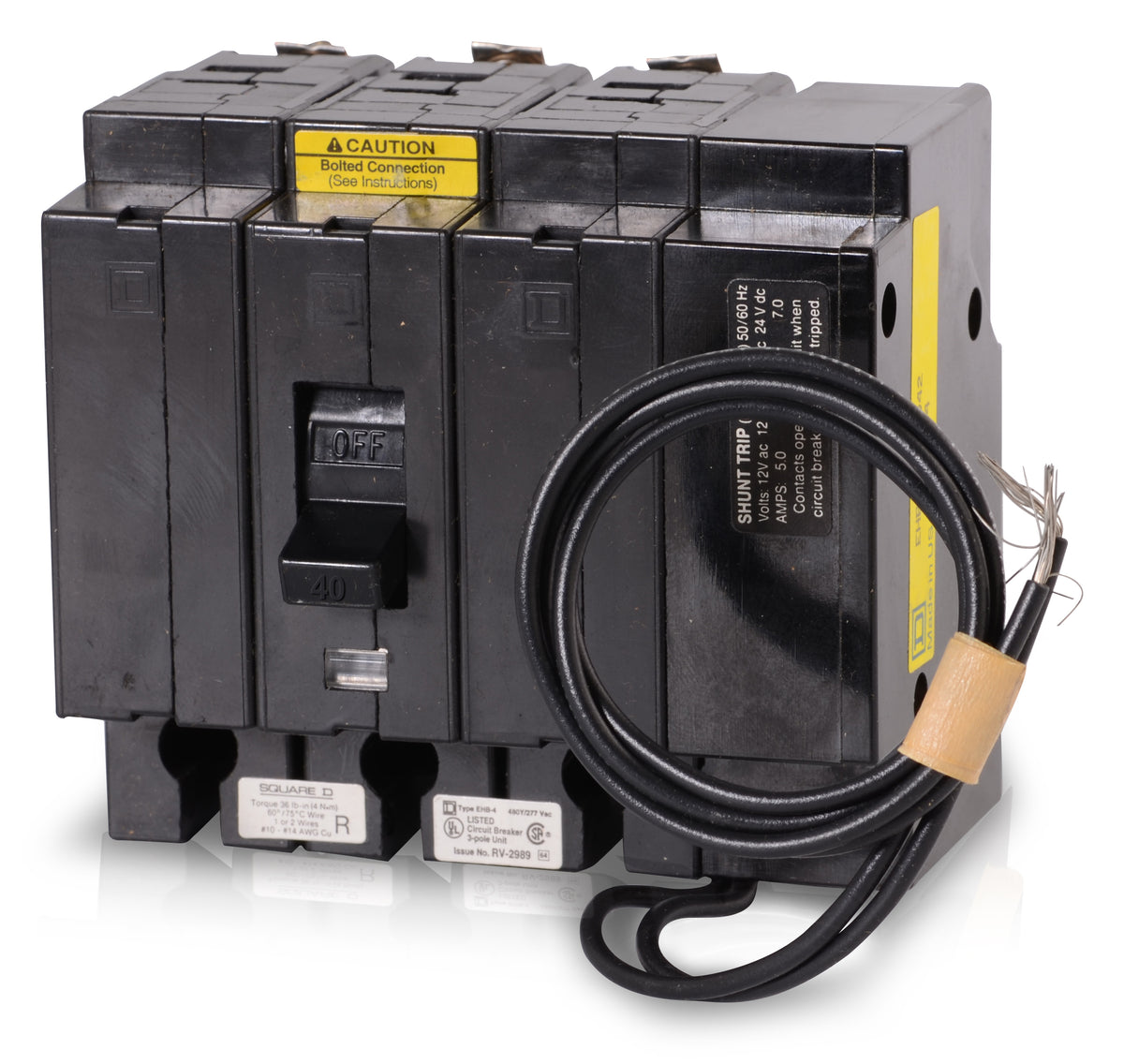

Square D EHB34040-1042 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Quantity
Square D EHB34040-1042 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for commercial and industrial facilities, the Square D EHB34040-1042 features a factory-installed 24VDC shunt trip for remote power disconnection. This 3-pole, 40A molded case circuit breaker provides reliable thermal-magnetic protection with a 14kAIC rating at 480Y/277VAC. The breaker installs into Square D NEHB panelboards via a standard bolt-on connection. If upgrading your system, note that this model is replaced by the EDB34040, which operates exclusively within NF panelboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34040-1042 |
| Series | EHB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 12-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat does the -1042 suffix mean on the EHB34040-1042?
The -1042 suffix indicates that this circuit breaker includes a factory-installed 12-24V AC/DC shunt trip. This accessory allows the breaker to be tripped remotely when a voltage signal is applied.
Which panelboards are compatible with the EHB34040-1042?
This legacy E-Frame breaker is designed exclusively for Square D NEHB panelboards. It will not fit in newer NF series panelboards or standard NQO/NQOD enclosures.
What is the modern replacement for the EHB34040-1042?
The EHB series is obsolete. The modern equivalent is the EDB34040 equipped with a shunt trip accessory. However, EDB breakers require an NF series panelboard and cannot be installed in older NEHB enclosures.
Can the EHB34040-1042 be used on a 480V ungrounded delta system?
No. This breaker has a 480Y/277V slash rating. It is only suitable for solidly grounded wye systems where the voltage to ground does not exceed 277V. It cannot be used on 480V ungrounded or corner-grounded delta systems.
How does the shunt trip function operate on this breaker?
The factory-installed shunt trip requires an external 12-24V AC or DC power source. When the coil receives a voltage signal from a remote switch or emergency stop relay, it mechanically trips the breaker to open the circuit.
Can I install this breaker in a Square D I-Line panelboard?
No. The EHB34040-1042 is a bolt-on miniature circuit breaker designed specifically for NEHB lighting panelboards. It lacks the plug-on jaw connections required for I-Line distribution panels.
What does the LI trip function indicate on this model?
LI stands for Long-Time and Instantaneous trip functions. The Long-Time element provides thermal overload protection, while the Instantaneous element provides magnetic short-circuit protection. Both settings are fixed and cannot be adjusted in the field.
Does the EHB34040-1042 feature a visual trip indicator?
Yes. This breaker includes a Visi-Trip indicator, which provides a highly visible red flag when the breaker has tripped, allowing for rapid fault identification in the panelboard.
