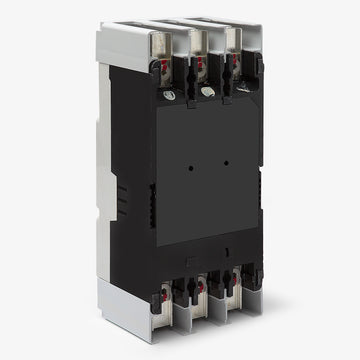

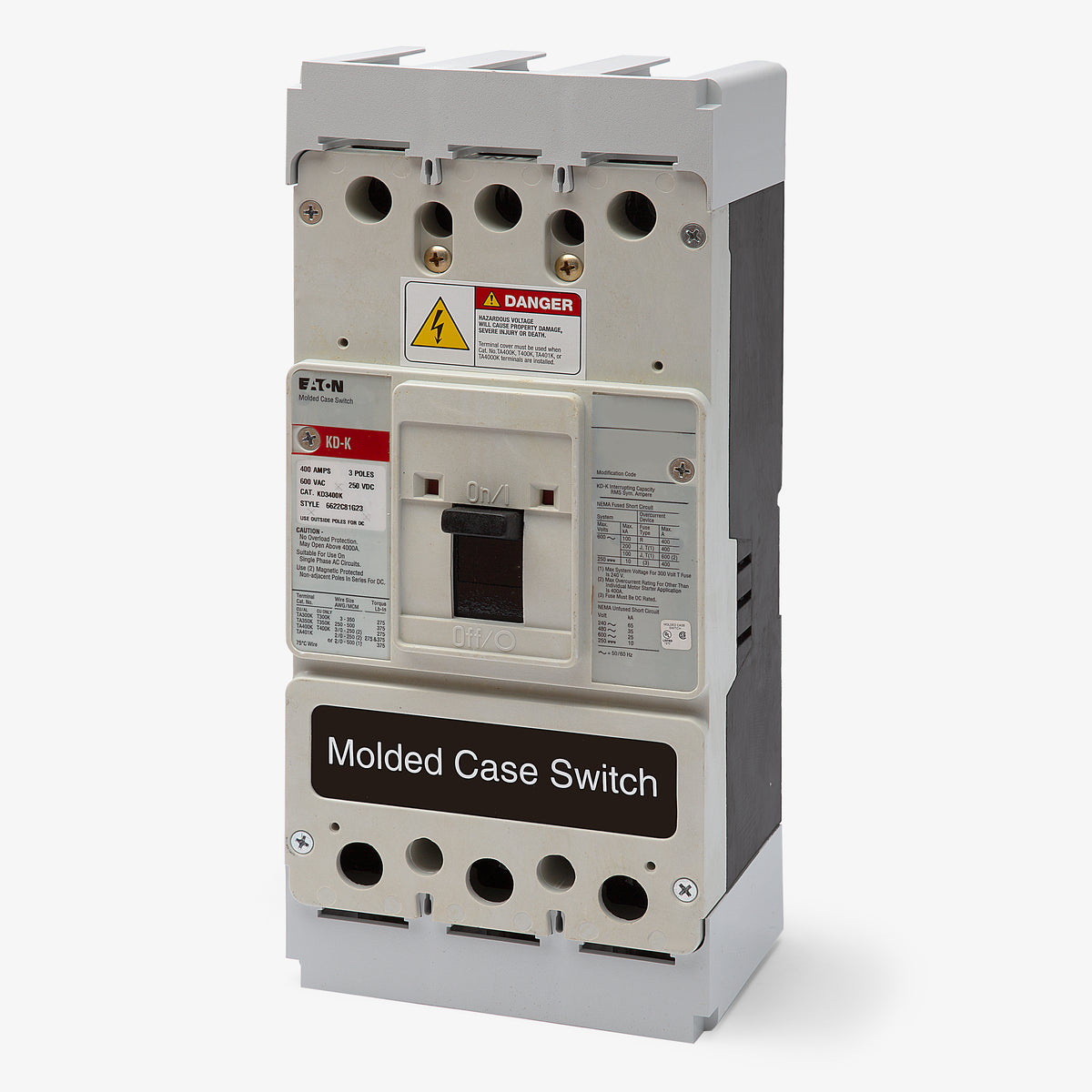

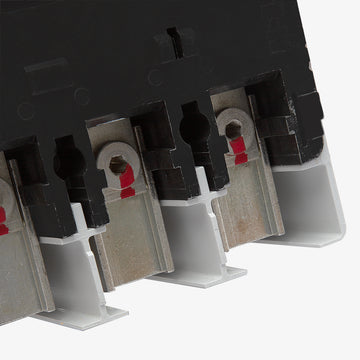

Eaton / Cutler-Hammer KD3400K Molded Case Switch
Quantity
Core Specs
See full specs
Eaton / Cutler-Hammer KD3400K - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer KD3400K - 400A 3 Pole Molded Case Switch
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3400K |
| Series | KD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 3/0 AWG - 250 kcmil (Al/Cu) or (1) 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer KD3400K - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 3/0 AWG - 250 kcmil (Al/Cu) or (1) 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
Description

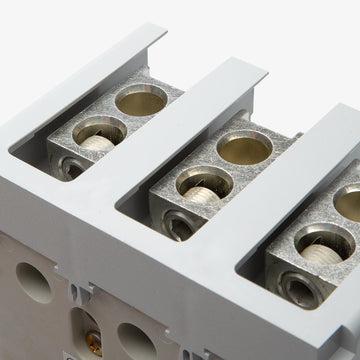

Built for industrial use, the KD3400K is a 3-pole, 400A molded case switch from Eaton's Series C K-Frame family. It operates as a non-automatic disconnect for equipment isolation. This unit-mount switch fits Eaton Series C panelboards and motor control centers. It includes factory-installed line and load lugs that accept up to 500 kcmil wire. Capable of reverse feed setups, it features a high magnetic withstand of 65 kAIC at 240V, allowing flexible integration into commercial systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | KD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 3/0 AWG - 250 kcmil (Al/Cu) or (1) 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
