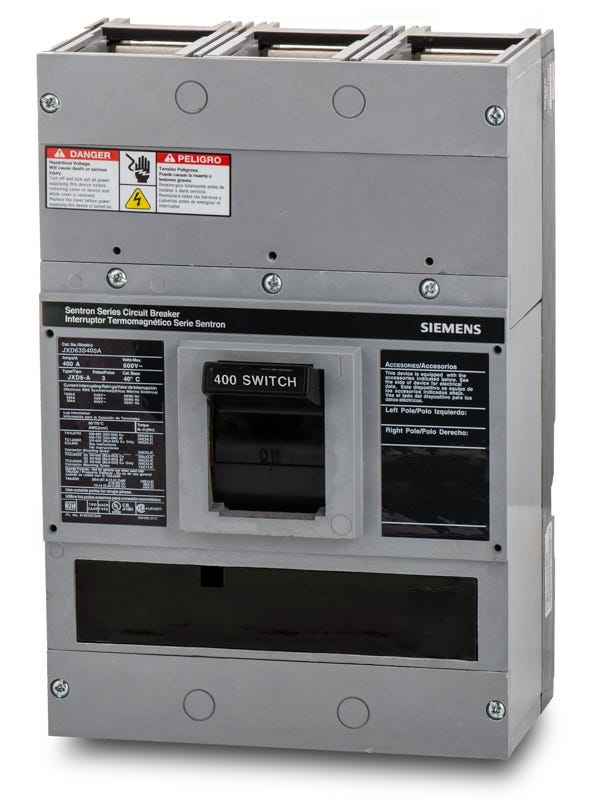

Siemens JXD63S400A Molded Case Switch
Quantity
Core Specs
See full specs
Siemens JXD63S400A - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
Siemens JXD63S400A - 400A 3 Pole Molded Case Switch
New
Quantity
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic, Molded Case Switch, Non-Interchangeable Trip, HACR Rated |
Quantity
Siemens JXD63S400A - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic, Molded Case Switch, Non-Interchangeable Trip, HACR Rated |
Description
Built for commercial isolation, the JXD63S400A is a 400A, three-pole molded case switch from the Siemens Sentron series. It serves as a non-automatic disconnect with a fixed magnetic trip for high-level fault self-protection. This unit-mount JD frame device installs into Siemens panelboards and switchboards. This legacy model is officially replaced by the 3VA5340-1BB31-0AA0 (requires mounting kit). Rated for 600VAC and 250VDC, it is HACR rated and accepts standard JD frame accessories.Specifications
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic, Molded Case Switch, Non-Interchangeable Trip, HACR Rated |
