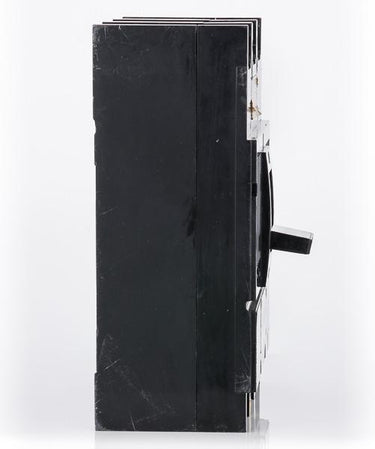

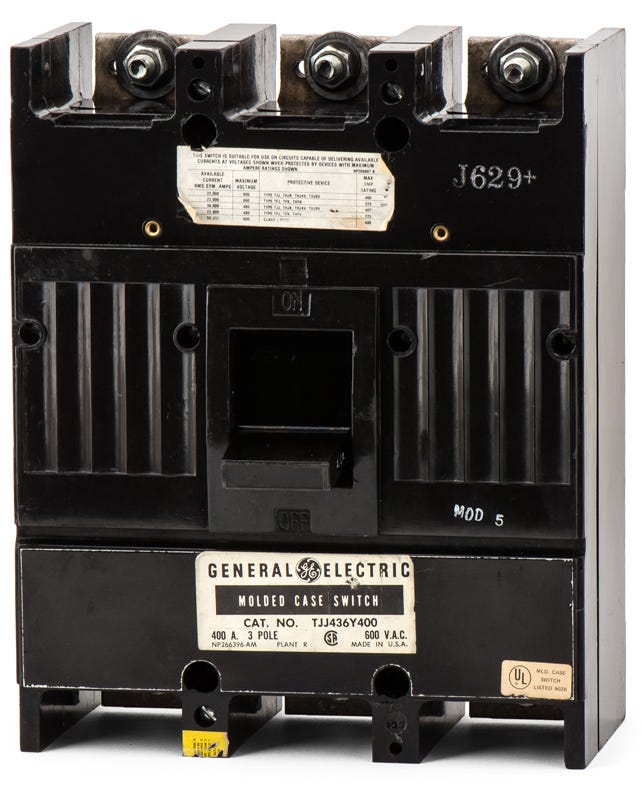

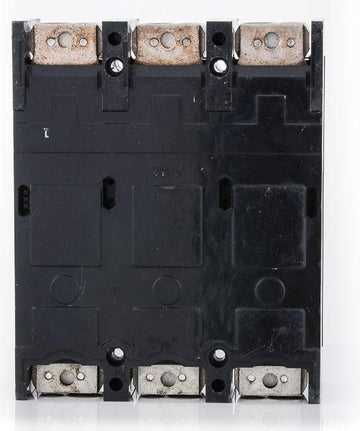

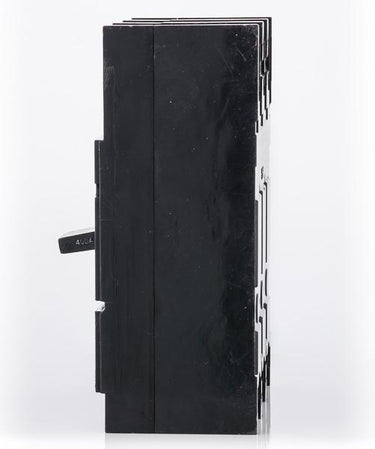

ABB / General Electric TJJ436Y400 Molded Case Switch
Quantity
Core Specs
See full specs
ABB / General Electric TJJ436Y400 - 400A 3 Pole Molded Case Switch
New
Quantity
Quantity
ABB / General Electric TJJ436Y400 - 400A 3 Pole Molded Case Switch
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436Y400 |
| Series | TJJ |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 30kA @ 480VAC |
| Frame Type | TJJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, UL 1087, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TJJ436Y400 - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436Y400-R |
| Series | TJJ |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 30kA @ 480VAC |
| Frame Type | TJJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, UL 1087, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Designed for heavy-duty isolation, the GE TJJ436Y400 is a 400A, 3-pole molded case switch rated for 480VAC. As a non-automatic disconnect, it lacks thermal overload protection but utilizes a high instantaneous withstand to open safely during short circuits. The bolt-on switch installs into GE A-Series panelboards, Spectra switchboards, and motor control centers. Featuring a 30kAIC rating and reverse-feed capability, it can be replaced by a Tmax XT5 switch via a retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJJ436Y400 |
| Series | TJJ |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480VAC |
| Phase | 3 |
| AIC Rating | 30kA @ 480VAC |
| Frame Type | TJJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures, GE Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, UL 1087, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
