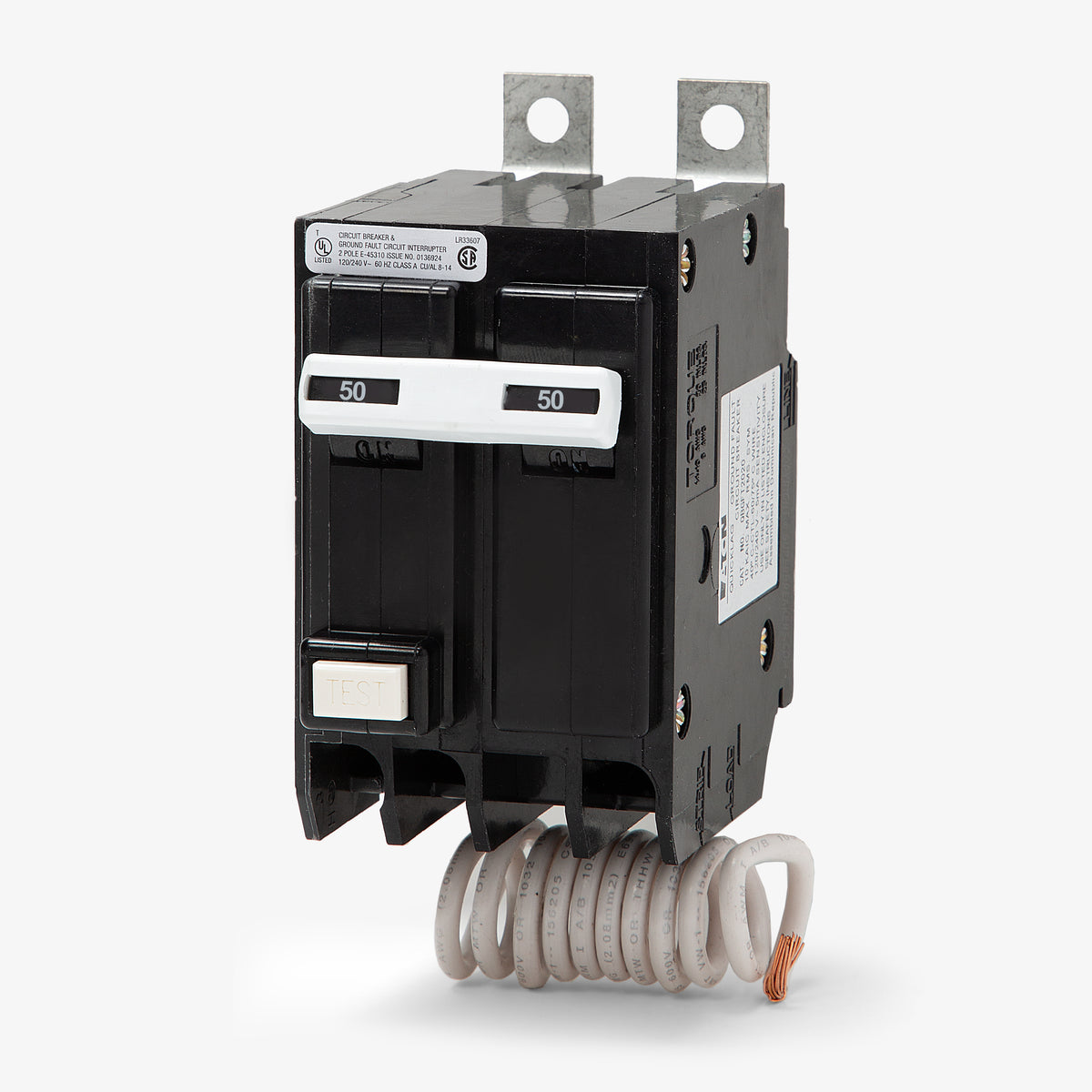

Eaton / Cutler-Hammer QBGFT2050 GFCI Miniature Circuit Breaker
- 50A
- 2 Pole

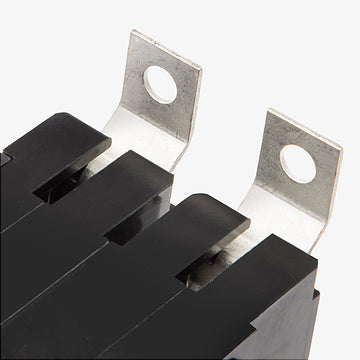

- Bolt-On
Eaton / Cutler-Hammer
QBGFT2050
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFT2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFT2050 - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFT2030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT2025
25A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT2020
20A GFCI Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Eaton QBGFT2050 provides reliable ground-fault protection with a 5mA trip sensitivity. This 50A, two-pole miniature circuit breaker features a 10kAIC rating at 120/240VAC and utilizes thermal-magnetic trip technology. It mounts into Eaton Pow-R-Line panelboards using a secure bolt-on connection. Designed as a direct replacement for the legacy QBGF2050, this HACR-rated breaker includes a self-test feature to ensure ongoing safety compliance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFT2050 |
| Series | QBGFT |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 6-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Self-Test |
Product FAQs
7 answersDoes the Eaton QBGFT2050 provide personnel protection or equipment protection?
The QBGFT2050 features a 5mA trip sensitivity, providing Class A ground fault protection for personnel.
What is the difference between the QBGFT2050 and the QBGF2050?
The QBGFT2050 is the current generation and direct replacement for the obsolete QBGF2050 catalog number. Both share the same physical footprint and bolt-on panelboard compatibility.
Which specific Eaton panelboards accept the QBGFT2050?
This bolt-on Quicklag breaker is designed for use in Eaton Cutler-Hammer Pow-R-Line 1, Pow-R-Line 1a, Pow-R-Line 2, and Pow-R-Line 2a panelboards.
Can the QBGFT2050 be installed in standard residential loadcenters?
No. The QBGFT2050 utilizes a bolt-on connection designed strictly for commercial and industrial panelboards. It will not fit in plug-on residential loadcenters such as the BR or CH series.

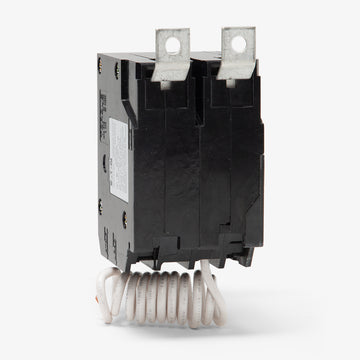

How does the QBGFT2050 connect to the neutral in the panelboard?
The breaker is equipped with a coiled pigtail neutral wire. This wire must be landed directly on the neutral bar of the panelboard to supply power to the internal ground fault sensing circuitry.
How much mounting space does the QBGFT2050 require?
This 2-pole breaker requires two adjacent 1-inch breaker spaces on the panelboard chassis.

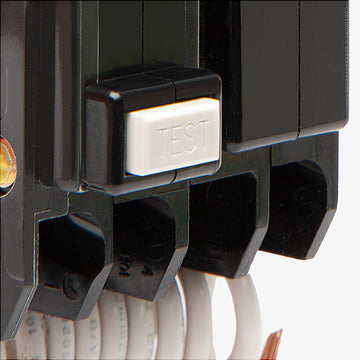

Does the QBGFT2050 have self-testing capabilities?
Yes, current QBGFT series ground fault breakers include internal periodic self-testing functions to verify that the GFCI protection remains active, complying with modern UL 943 standards.
