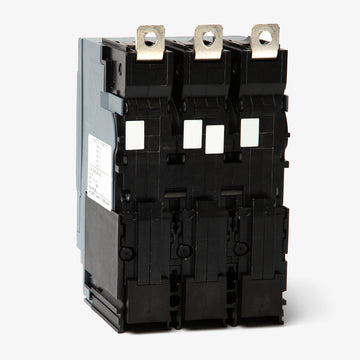

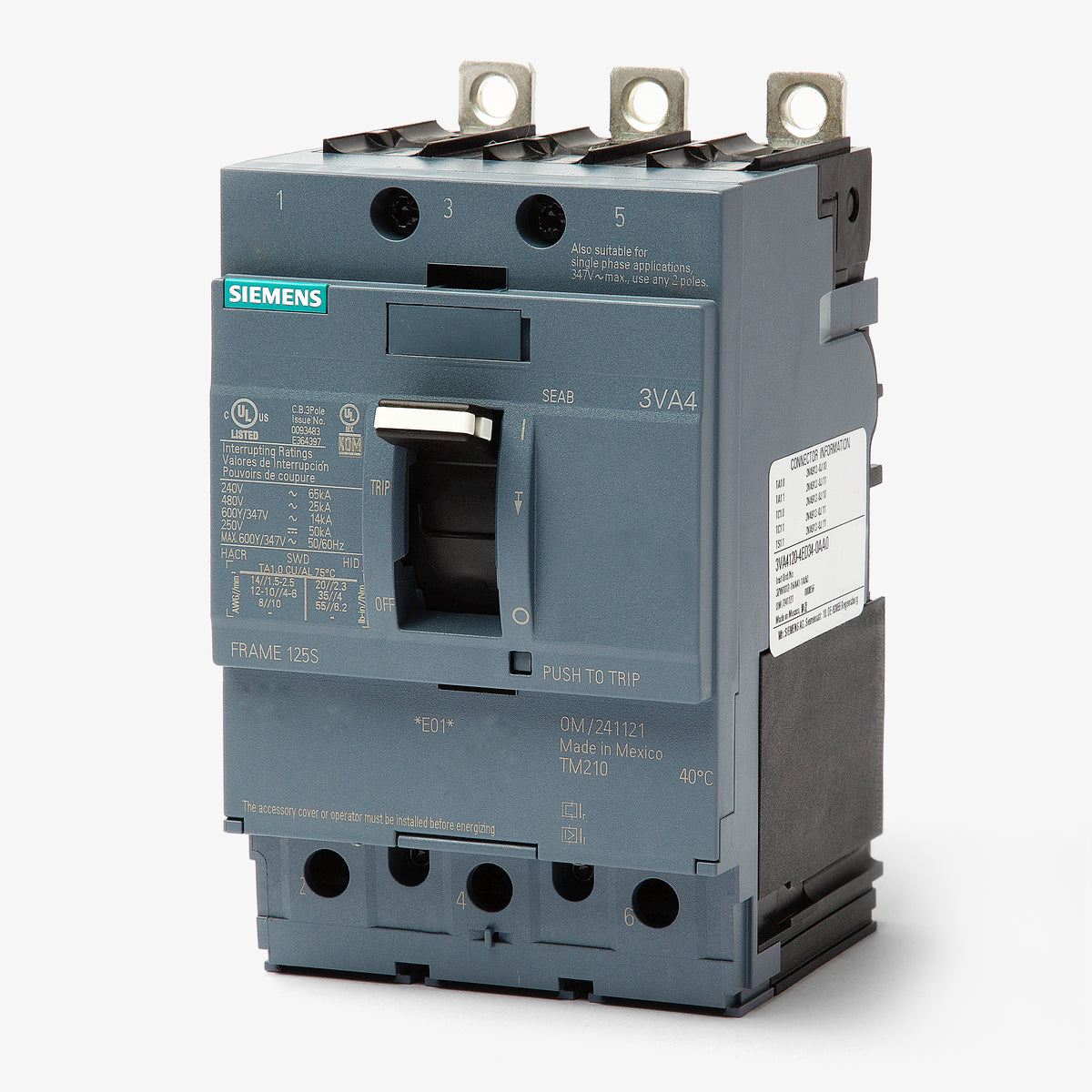

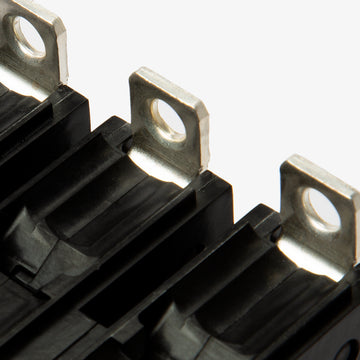

Siemens 3VA4160-4ED34-0AA0 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Quantity
Siemens 3VA4160-4ED34-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the advanced 3VA4 frame lineup, this three-pole 60A molded case circuit breaker provides fixed long-time and instantaneous (LI) trip functions. It integrates seamlessly into Siemens P1 through P5 panelboards and commercial switchboards requiring robust power distribution. Offering a 25kAIC rating at 480VAC, it effectively replaces older ED43B060 units while bringing modern current-limiting capabilities and reverse feed operation to industrial electrical systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4160-4ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated |
Product FAQs
6 answersDoes the Siemens 3VA4160-4ED34-0AA0 replace any legacy circuit breakers?
Yes. The 3VA4160-4ED34-0AA0 is a direct replacement for the legacy Siemens ED43B060 molded case circuit breaker. It provides identical 60A, 3 pole capabilities while utilizing the current 3VA41 frame architecture.
Which Siemens panelboards are compatible with the 3VA4160-4ED34-0AA0?
This breaker is approved for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as Siemens switchboards.
Are specific strap kits required to install this breaker in P2 through P5 panelboards?
Yes. While mounting in P1 panels is generally direct, integrating the 3VA4160-4ED34-0AA0 into other systems requires specific strap kits. A BBKVA4P2P3 kit is used for P2 and P3 panels, while S3VA41T or S3VA41TD twin mount kits are required for P4 and P5 power panels respectively.

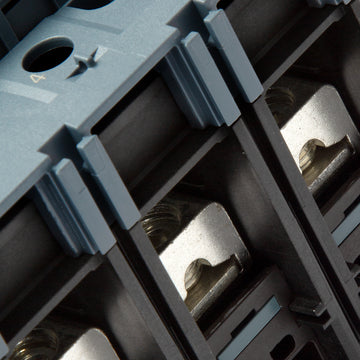

What wire sizes are accepted by the terminal lugs on the 3VA4160-4ED34-0AA0?
The factory installed lugs accept copper (Cu) or aluminum (Al) wire ranging from 14 AWG up to 3/0 AWG.
Can the thermal or magnetic trip points on the 3VA4160-4ED34-0AA0 be adjusted?
No. This breaker is equipped with a thermal magnetic trip unit that features fixed thermal overload and fixed magnetic instantaneous short circuit protection settings.
Is the Siemens 3VA4160-4ED34-0AA0 suitable for DC voltage applications?
Yes. In addition to its standard AC ratings, this breaker is rated for 250VDC systems, delivering a 50kAIC interrupting capacity for direct current applications.
