Siemens 3VA4190-6ED34-0AA0 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Quantity

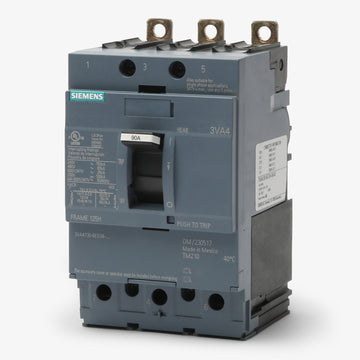

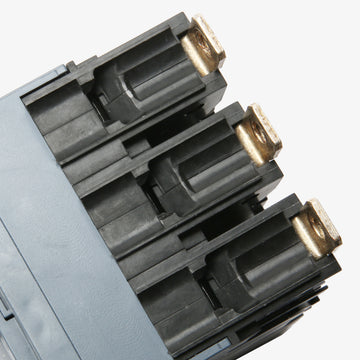

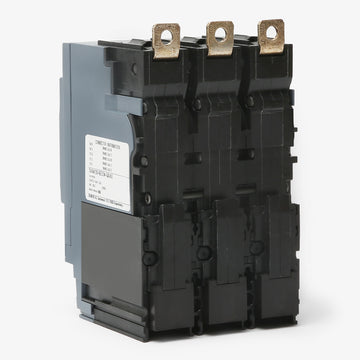

Siemens 3VA4190-6ED34-0AA0 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
A high-performance solution for industrial power systems, the Siemens 3VA4190-6ED34-0AA0 is a 3-pole, 90A bolt-on molded case circuit breaker. It boasts a Class H interrupting rating of 65kA at 480VAC, utilizing a TM210 fixed thermal-magnetic trip unit to ensure precise long-time and instantaneous protection. Designed to replace older HHED63B090 (HHED6 Frame) models, this breaker mounts securely into Siemens P1, P2, and P3 panelboards. It is HACR rated and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4190-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersCan the 3VA4190-6ED34-0AA0 be used to replace older Siemens ED frame breakers?
Yes, this 3VA4 series breaker is designed to replace older HHED6 frame models, specifically the HHED63B090. It mounts directly into the same Siemens panelboard infrastructure.
Which Siemens panelboards are compatible with this 3VA41 frame breaker?
This bolt-on breaker is fully compatible with Siemens P1, P2, and P3 panelboards, as well as standard Siemens switchboards.
Is the 3VA4190-6ED34-0AA0 suitable for reverse feed applications?
Yes, this breaker supports reverse feed applications, allowing flexibility in wiring configurations for industrial power systems without compromising the trip unit functionality.
What does the Class H interrupting rating mean for this breaker?
The Class H designation indicates a high interrupting capacity. For this specific model, it provides a 65kA rating at 480VAC and 100kA at 240VAC, making it suitable for commercial and industrial systems with high available fault currents.

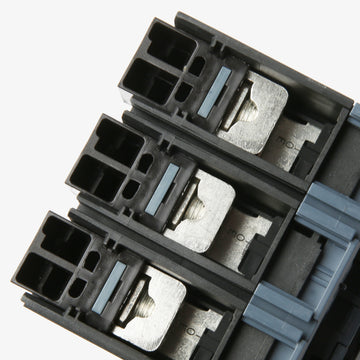

What wire sizes are accepted by the lugs on this 90A breaker?
The factory-installed lugs accept wire gauges from 14 AWG up to 3/0 AWG. They are rated for terminating both copper and aluminum conductors.
Are the thermal and magnetic trip settings adjustable on the TM210 trip unit?
No, the TM210 trip unit features fixed thermal and fixed magnetic settings for long-time and instantaneous protection. If your application requires adjustable trip curves, you will need a breaker equipped with an electronic trip unit.
Can this breaker be used to protect HVAC equipment?
Yes, the 3VA4190-6ED34-0AA0 is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
