Square D BDL36090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
BDL36090
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL36090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

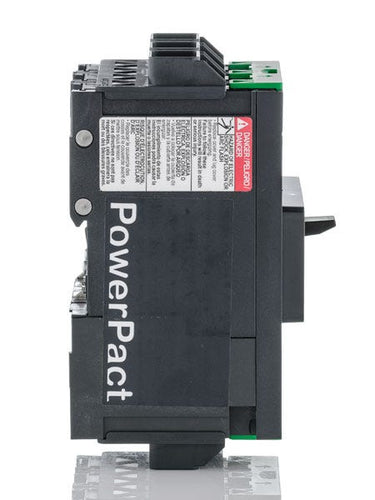

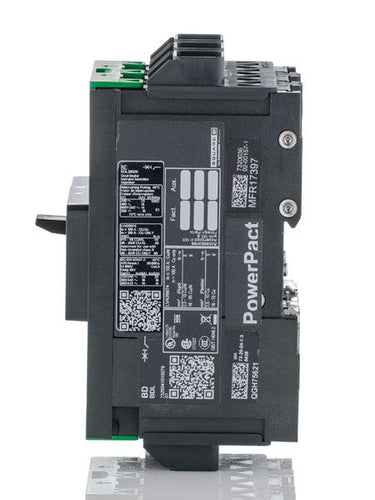

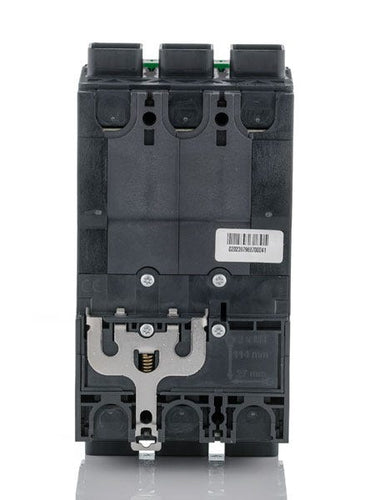

Square D BDL36090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Delivering precise long-time and instantaneous protection, this 90A D-interrupting class breaker handles 18kAIC faults at 480VAC. The compact PowerPacT B-frame footprint fits standard switchboards and industrial control panels, offering a straightforward replacement for legacy FAL36090 devices. Built-in DIN rail mounting capability and factory-installed EverLink creep-compensating lugs streamline the wiring process and maintain tight connections over time.Specifications
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Electrical Distribution Equipment, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
9 answersWhat wire types and sizes are compatible with the factory lugs?
The factory-installed EverLink lugs on this breaker are dual-rated for both copper (Cu) and aluminum (Al) conductors. They accept wire sizes ranging from 14 AWG up to 3/0 AWG.
Can I use the BDL36090 to replace a legacy FAL36090 circuit breaker?
Yes. The PowerPacT B-frame series is the modern replacement for obsolete Square D F-Frame breakers, including the FAL36090. Because physical dimensions and mounting footprints differ between the two frames, verify space and mounting compatibility within your panel before installation.
How does this breaker mount inside a panel?
The BDL36090 is a unit-mount circuit breaker. It can be installed using traditional back-pan mounting with screws or mounted directly onto a standard DIN rail for installation flexibility.
Can the BDL36090 be reverse fed?
Yes. Standard unit-mount PowerPacT B-frame circuit breakers feature sealed trip units and are suitable for reverse feeding. They can be supplied from either the top or bottom lugs without reducing their protective performance.
Can I add auxiliary contacts or a shunt trip to this breaker?
Yes. The front cover of the PowerPacT B-frame can be removed to accommodate field-installable accessories, including auxiliary switches, alarm contacts, undervoltage releases, and shunt trips, without voiding the UL listing.
Is this circuit breaker 100% rated?
No, the BDL36090 is a standard 80% rated breaker. Per the National Electrical Code (NEC), it should only be loaded continuously (for three hours or more) to a maximum of 80% of its 90A rating.
Is this breaker approved for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is tested and approved for the overcurrent protection of heating, air conditioning, and refrigeration equipment.
Can the BDL36090 be used in direct current (DC) systems?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is certified for use on DC electrical systems up to 250V DC, where it provides a 10 kA interrupting capacity.
What does the "LI" trip function indicate?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits. Both the thermal and magnetic trip thresholds are fixed on this model.
