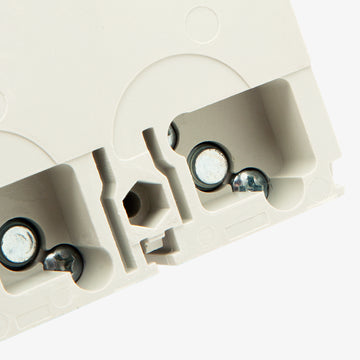

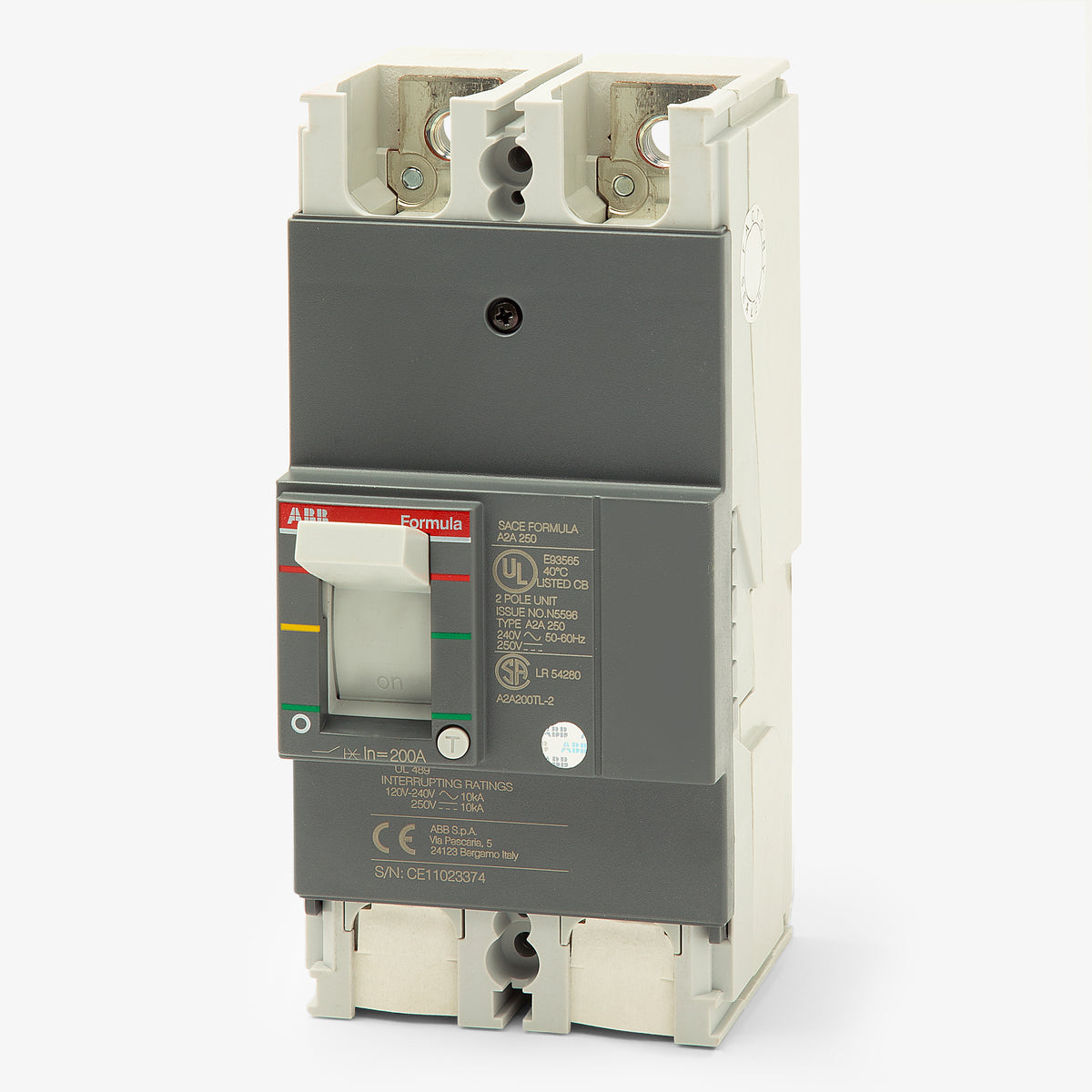

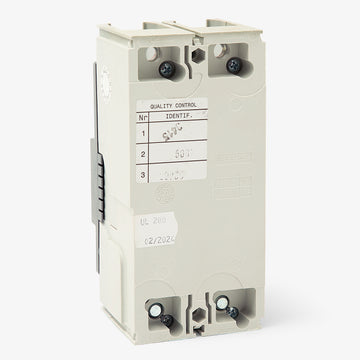

ABB A2A200TL-2 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Quantity
ABB A2A200TL-2 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Delivering robust overcurrent protection, the ABB A2A200TL-2 is a 2-pole, 200A MCCB. It operates within the Formula A2 frame family, securing 240VAC systems against short circuits. This unit-mount MCCB integrates into ABB Formula and ReliaGear panels. It also functions as a functional replacement for discontinued GE TQD22200 breakers in legacy enclosures. Equipped with a 10kAIC rating, it features a fixed thermal-magnetic trip mechanism and is HACR rated.Specifications
| Brand | ABB |
|---|---|
| Series | Formula |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | A2A |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB Formula Panelboards, ReliaGear Panelboards, OEM Enclosures, DIN Rail |
| Wire Gauge | 1 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL, cULus |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersCan the ABB A2A200TL-2 replace discontinued General Electric breakers?
Yes, this ABB Formula A2 frame breaker serves as a direct functional replacement for obsolete GE TQD22200 circuit breakers in legacy enclosures and panels.
What panelboards accept the A2A200TL-2 circuit breaker?
This unit-mount breaker integrates directly into ABB Formula and ReliaGear panelboards. It is also suitable for custom OEM enclosures and DIN rail mounting configurations.
What are the wire size requirements for the terminals on this breaker?

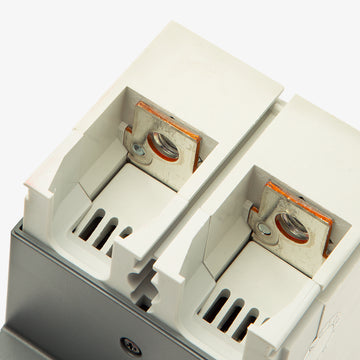

The factory-installed lugs are rated for either copper or aluminum conductors, accepting wire sizes from 1 AWG up to 250 kcmil.
How does the trip unit function on the A2A200TL-2?
It utilizes a fixed thermal-magnetic (TMF) trip mechanism. This provides reliable, non-adjustable long-time and instantaneous (LI) protection against overloads and short circuits.
Can this ABB Formula breaker be used in DC systems?
Yes, in addition to its standard 240VAC rating, this breaker is fully rated for 250VDC applications, delivering a 10kA interrupting capacity for direct current circuits.
Is the A2A200TL-2 suitable for reverse-feed wiring?
Yes, this breaker is reverse-feed capable, allowing electricians to safely land the line power on either the top or bottom terminals based on enclosure layout.
Is this 200A breaker approved for HVAC equipment?
Yes, the A2A200TL-2 carries an HACR rating, meaning it is certified for the specific inrush currents and safety requirements of heating, air conditioning, and refrigeration circuits.
