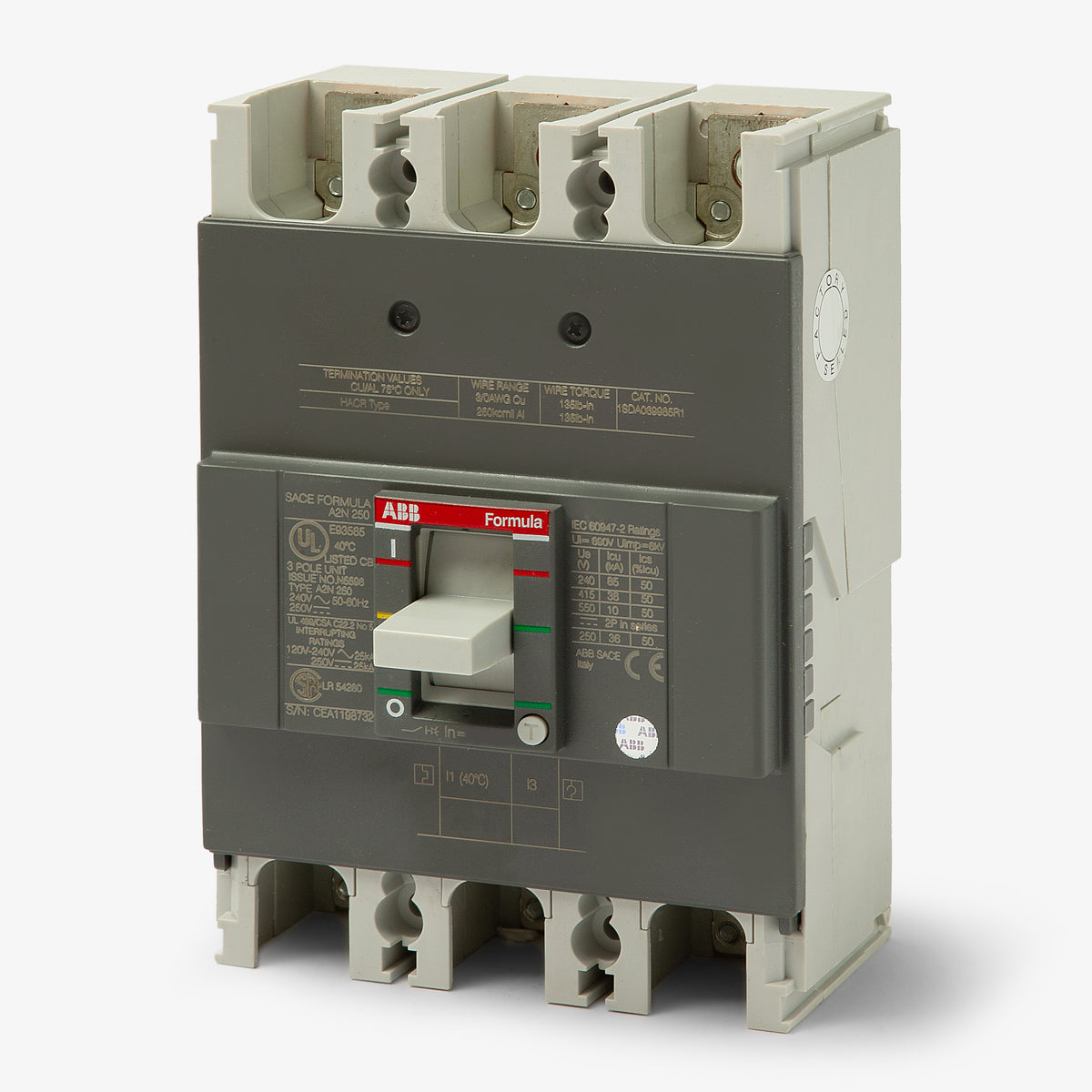

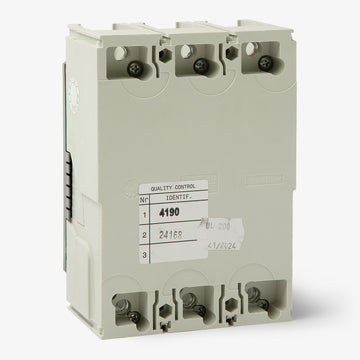

ABB A2N225TW Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Quantity
ABB A2N225TW - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for high-density power distribution, the ABB A2N225TW is a 3-pole, 225A molded case circuit breaker from the Formula A2 series. It features a fixed thermal-magnetic trip unit and delivers a 25kAIC rating at 240VAC. This unit-mount breaker is compatible with ABB Formula panelboards, ReliaGear enclosures, and DIN rail adapters. It is the official functional replacement for the legacy GE THQD32225, offering modern performance in a space-saving design.Specifications
| Brand | ABB |
|---|---|
| Series | Formula |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 25kA @ 250VDC |
| Frame Type | A2N |
|---|---|

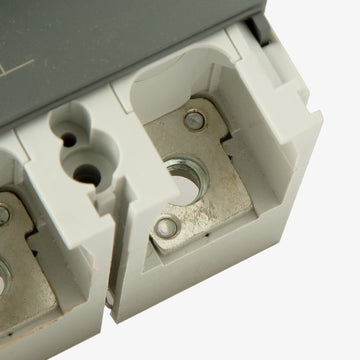

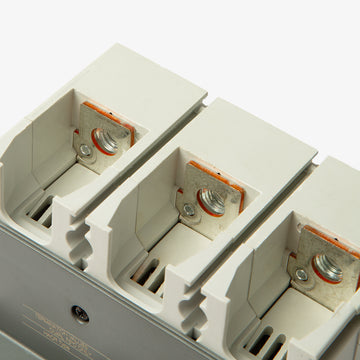

| Terminal Type | Lugs |
| For Use With | ABB Formula Panelboards, ReliaGear Panelboards, OEM Enclosures, DIN Rail |
| Wire Gauge | 1 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Rotary Handle, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Front Terminals Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed |
Product FAQs
7 answersWhat legacy GE circuit breaker does the ABB A2N225TW replace?
The ABB A2N225TW serves as a functional replacement for the discontinued GE THQD32225 and TQD32225 3-pole breakers. Retrofitting or mounting hardware modifications may be required when installing it into older legacy GE panelboards.
Which panelboards are compatible with the A2N225TW breaker?
This Formula A2 frame breaker is designed for installation in ABB Formula panelboards and ABB ReliaGear RQ panelboards. It can also be utilized in OEM enclosures or DIN rail applications with the correct adapter.
Are the thermal and magnetic trip settings adjustable on the A2N225TW?
No, this breaker is equipped with a fixed thermal-magnetic trip unit (TMF). Both the long-time overload and instantaneous short-circuit protection settings are factory-fixed and cannot be adjusted in the field.
Can the ABB A2N225TW breaker be reverse fed?
Yes, this breaker supports reverse feeding. This allows electricians to land the incoming line power on either the top or bottom terminals without compromising the breaker's protective functions.
Is the A2N225TW breaker HACR rated for HVAC equipment?
Yes, this Formula A2 series breaker is HACR rated, making it fully compliant for use with heating, air conditioning, and refrigeration equipment.
What field-installable accessories are compatible with the A2N225TW?
This Formula A2 breaker supports a range of accessories, including shunt trips, undervoltage releases, auxiliary contacts, rotary handles, and padlock attachments.
Can the A2N225TW be mounted directly to a DIN rail?
The breaker features a unit-mount design for chassis or panel installation. To mount it on a DIN rail, a specific ABB Formula A2 DIN rail adapter bracket is required.
