ABB E200DU-200 Overload Relay
Quantity
Core Specs
See full specs
ABB E200DU-200 Overload Relay
New
Quantity
Description

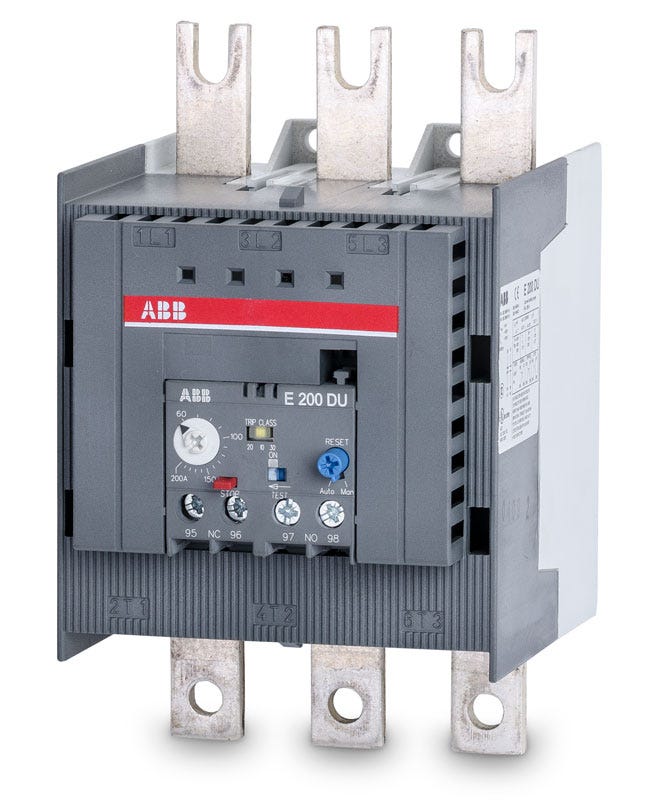

ABB E200DU-200 Overload Relay
The New ABB E200DU-200 3 Pole Electronic Overload Relay is a self-supplied electronic overload relay device that offers effective protection against overload or phase failure. Compatible with standard motor applications, this E-200 Series overload relay is easy to use just like a thermal overload relay. It is designed for use with A-Line, A145 & A185 frame contactors and in 3-phase applications only. The ABB E200DU-200 features high accuracy, high operational temperature range as well as a wide setting range. This 60-200 Amp electronic overload relay is selectable 10, 20 or 30 trip class. Based on trip-free mechanism, this electronic overload relay provides temperature compensation, trip contact (NC) and signal contact (NO). It also has stop- and test function along with a trip indication.
Specifications
| Amperage | 200 A |
|---|---|
| Voltage | 600 VAC |
| Poles | 3 |
| Mounting Type | A-Line |
| Voltage Protection Rating | 690V |
|---|
| Terminal Connection | IP00 |
|---|---|
| Length (in) | 4.78 |
| Width (in) | 4.13 |
| Height (in) | 6.73 |
| For Use With | A-Line, A145 & A185 Frame Contactors |
| Temperature Rating | 25 To 70 DEG C |
|---|
| Series | E200DU200 |
|---|---|
| Brand | ABB |
| UPC | 662019844008 |
