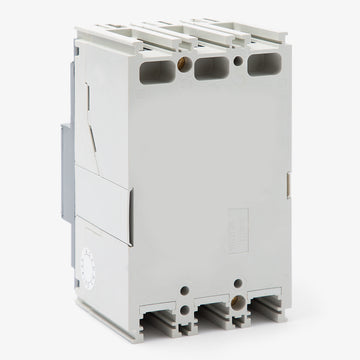

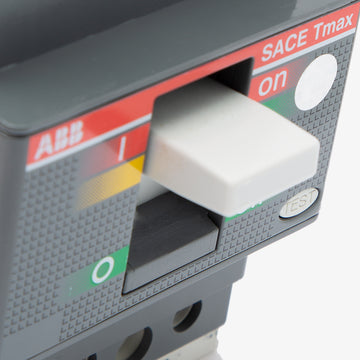

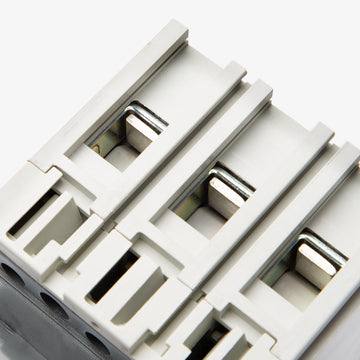

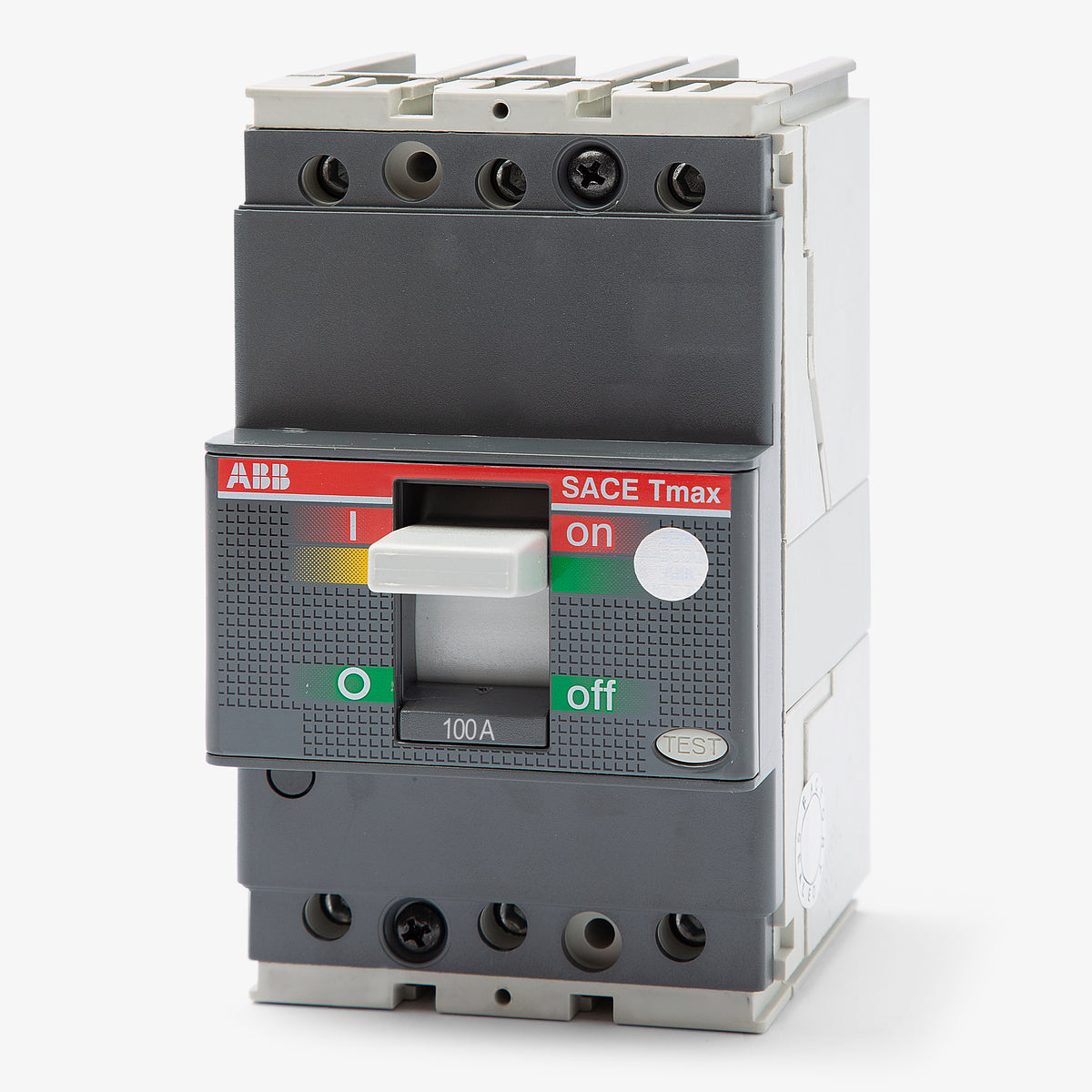

ABB T1N-100TL T1N100TL - 100A 3 Pole Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Quantity
ABB T1N100TL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for commercial and industrial power distribution, the ABB T1N-100TL is a 3-pole, 100A molded case circuit breaker. It belongs to the SACE Tmax T1N series, offering fixed thermal and magnetic trip functions for long-time and instantaneous (LI) protection. This panel-mount breaker is engineered specifically for use with ABB Spectra and ReliaGear panelboards, as well as Tmax enclosures.Specifications
| Brand | ABB |
|---|---|
| Series | T1N |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 22kA @ 480VAC, 10kA @ 600Y/347VAC, 25kA @ 250VDC, 25kA @ 500VDC |
| Frame Type | T1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB Spectra Panelboards, ABB ReliaGear Panelboards, ABB Tmax Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, DIN Rail Adapter, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Double Insulation, Positive Operation, Reverse Feed, HACR Rated |
Product FAQs
5 answersAre line and load lugs included with the T1N-100TL?
Yes, this breaker includes factory-installed lugs on both the line and load sides.
Which panelboards accept the T1N-100TL breaker?
This breaker is designed for use in ABB Spectra panelboards, ABB ReliaGear panelboards, and ABB Tmax enclosures.
Can this breaker be reverse fed?
Yes, the T1N-100TL is suitable for reverse feed applications.
What is the magnetic trip setting for this 100A breaker?
This breaker features a fixed thermal-magnetic trip unit with an instantaneous magnetic trip point set at 1500A.
Can I use aluminum conductors with the T1N-100TL?
No, the standard lugs provided with this breaker are rated for copper (Cu) wire only, sized from 14 AWG to 1/0 AWG.
