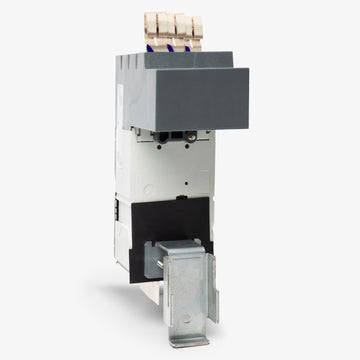

ABB XT1NU3080AYD000XXX Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
ABB
XT1NU3080AYD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3080AYD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3080AYD000XXX - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Optimized for modern power distribution, the ABB XT1NU3080AYD000XXX is a 3-pole molded case circuit breaker with a fixed thermal-magnetic trip unit. It delivers reliable long-time and instantaneous (LI) protection for commercial facilities. This specific configuration includes line-side panel connectors and load-side lugs, making it purpose-built for installation into ReliaGear neXT panelboards. It can also replace legacy Tmax T1 series units.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 35kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ReliaGear neXT Panelboards |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line Side Panel Connectors, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Double Insulated |
Product FAQs
6 answersWhat panelboards are compatible with the XT1NU3080AYD000XXX circuit breaker?
This breaker is designed for installation in ABB and GE ReliaGear neXT panelboards.
What does the N in the XT1N frame designation indicate?
The N signifies the Normal interrupting capacity tier for the ABB Tmax XT line, providing a 25kA rating at 480VAC and 50kA at 240VAC.
Can the XT1NU3080AYD000XXX replace older Tmax breakers?
Yes, the Tmax XT1 frame is an upgraded replacement for legacy ABB and GE Tmax T1 series circuit breakers.
Are lugs and panel connectors included with this breaker?
Yes, this specific configuration includes load-side lugs and line-side panel connectors for direct installation into ReliaGear neXT panelboards.
What wire material is compatible with the lugs on this breaker?
The included lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 10 AWG to 2/0 AWG.
Can the trip settings on the XT1NU3080AYD000XXX be adjusted?
No, this breaker features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. The trip curve cannot be adjusted in the field.
