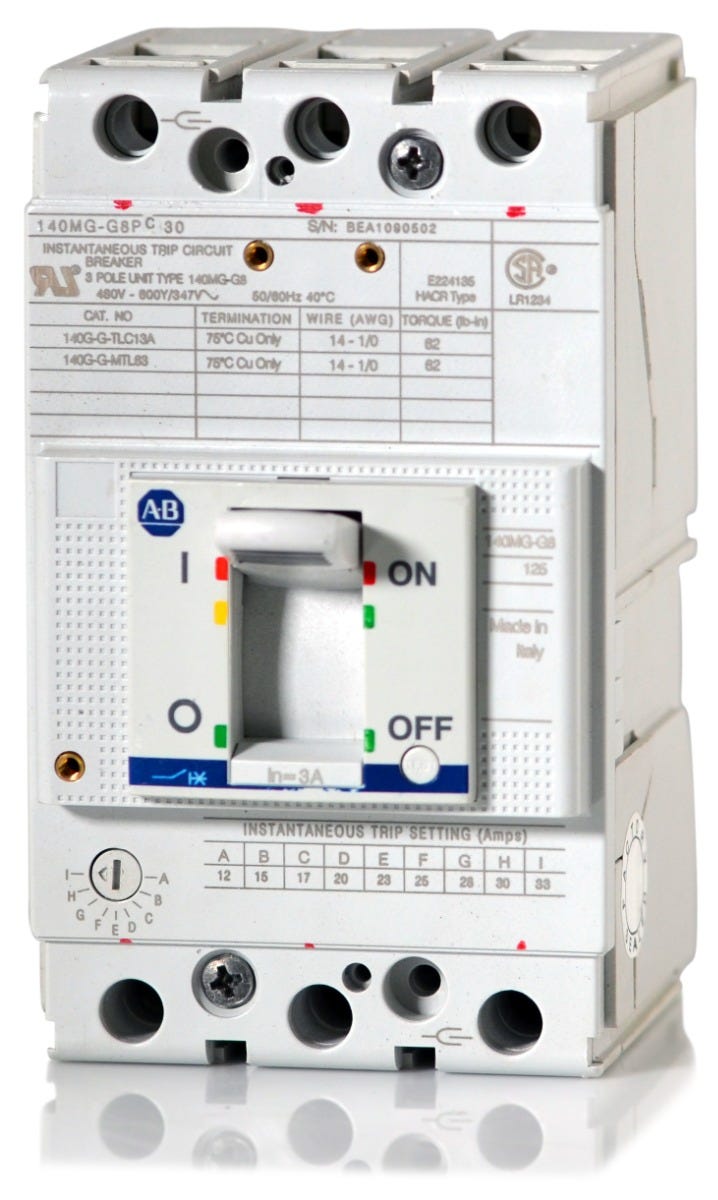

Allen Bradley 140MG-G8P-C30 Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Quantity
Allen Bradley 140MG-G8P-C30 - 30A 3 Pole Motor Circuit Protector
New
Quantity
Description
Rated at 65 kAIC at 480VAC, this Allen Bradley 30A motor circuit protector delivers robust magnetic-only protection. It features an adjustable magnetic trip to handle instantaneous short-circuit currents without nuisance tripping during motor startup. The G-frame device utilizes unit mounting with included line and load lugs, making it ideal for industrial control panels. It serves as a reliable substitute for HMCPE030H1C and 3VL2730-1DK33-0AA0 protectors, ensuring optimal three-phase safety.Specifications
| Brand | Allen Bradley |
|---|---|
| Part Number | 140MG-G8P-C30 |
| Series | 140MG |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, UL, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, High Break |
