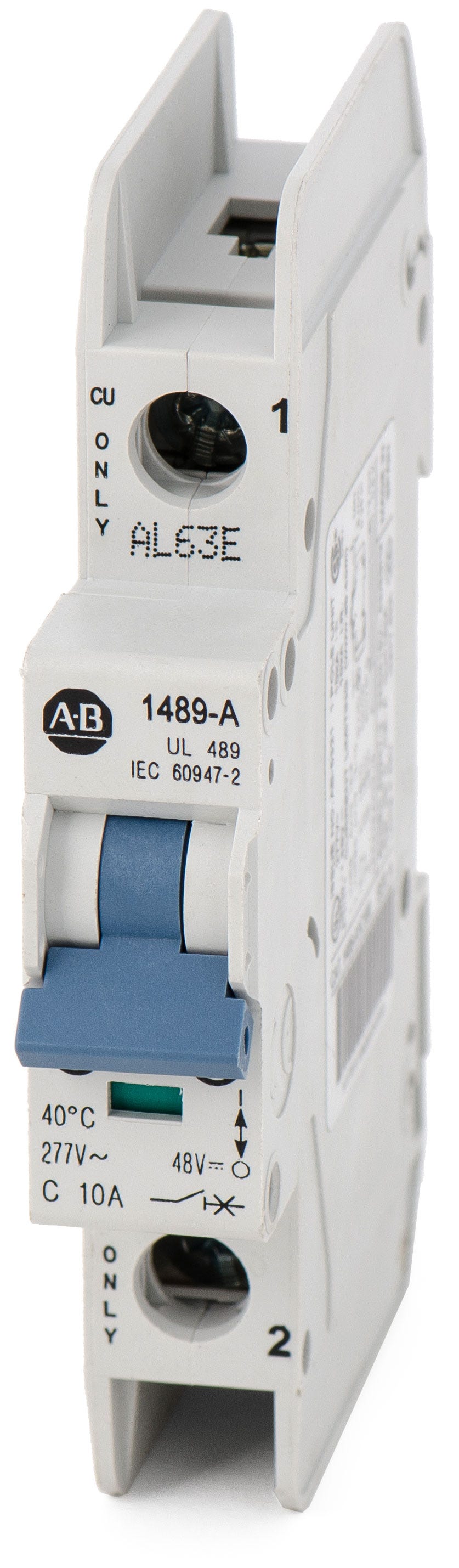

Allen Bradley 1489A1C100 1489-A1C100 - 10A 1 Pole Miniature Circuit Breaker
- 10A
- 1 Pole
- DIN Rail
Quantity
Allen Bradley 1489-A1C100 - 10A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Built for industrial control panels, this 10A miniature circuit breaker provides essential branch circuit protection. The C-curve trip profile is optimized for loads with moderate inrush currents, ensuring stable operation across commercial applications. The device mounts seamlessly onto standard DIN rails, offering a compact footprint for high-density panel layouts. Note that this legacy model has been replaced by the newer 1489-M1C100. This breaker features a 10kAIC rating at 480Y/277VAC.Specifications
| Brand | Allen Bradley |
|---|---|
| Part Number | 1489A1C100 |
| Series | 1489 |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 480Y/277VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 480Y/277VAC, 10kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Signal Contact |
|---|---|
| Standards | CSA C22.2 No. 5.1, EN 60947-2, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, SWD, UL, VDE |
| Temp Rating | -30C to 60C |
| Construction Features | Current Limiting, SWD Rated |
Product FAQs
5 answersWhat is the direct replacement for the legacy 1489-A1C100 circuit breaker?
The 1489-A1C100 has been superseded by the Allen Bradley 1489-M1C100. The updated 1489-M series maintains the same UL 489 branch circuit rating, 10A capacity, and C-curve trip profile for seamless integration into existing panels.
What type of trip curve does the 1489-A1C100 feature?
This breaker utilizes a C-curve trip profile. It is engineered to handle moderate inrush currents without nuisance tripping, which is typical for small control circuits, lighting loads, and auxiliary equipment.
Does the 1489-A1C100 provide branch circuit protection or supplementary protection?
As part of the Bulletin 1489-A series, this device is UL 489 listed for branch circuit protection. It can be used as a primary overcurrent protective device, unlike UL 1077 breakers which are limited to supplementary protection.
What type of enclosures or panels are compatible with the 1489-A1C100?
This miniature circuit breaker is designed for high-density industrial control panels and motor control centers. It snaps directly onto standard 35mm DIN rails, making it ideal for space-constrained modular assemblies.
How does the thermal-magnetic trip mechanism function on this breaker?
The fixed thermal-magnetic design provides two layers of protection. The thermal element offers delayed tripping for sustained overloads, while the magnetic element provides instantaneous tripping to quickly isolate short circuits and prevent equipment damage.
