Allen Bradley 1492GH010 1492-GH010 - 1A 1 Pole Supplementary Protector
Quantity
Core Specs
See full specs

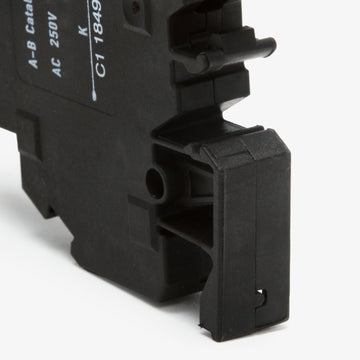

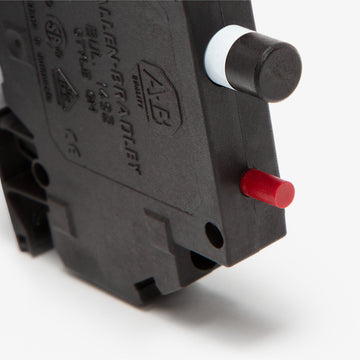

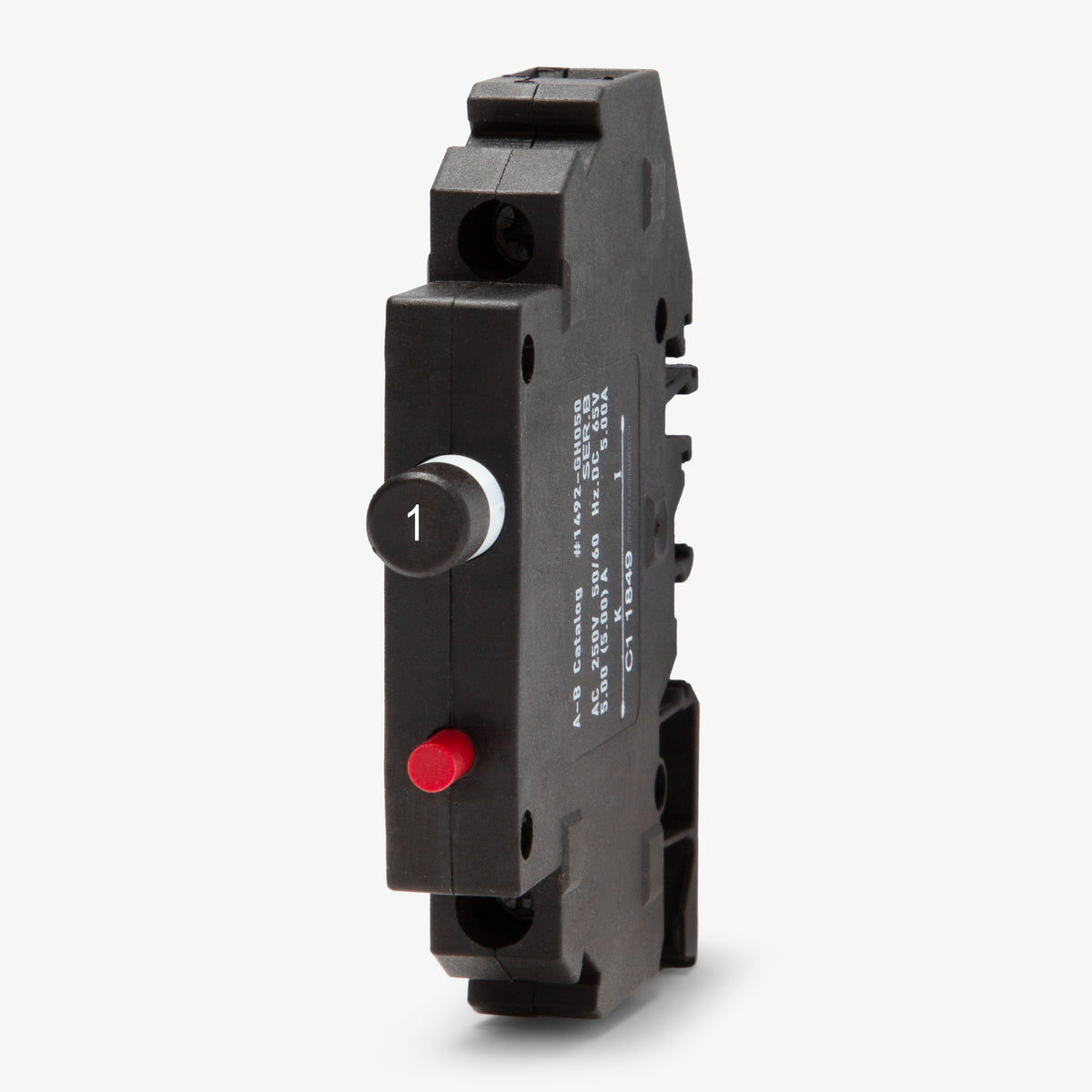

Allen Bradley 1492-GH010 - 1A 1 Pole Supplementary Protector
New
Quantity
Description
Engineered for precise control circuit protection, the Allen Bradley 1492GH010 is a 1A high-density supplementary protector. Rated for 250VAC and 65VDC, it delivers reliable thermal-magnetic defense for sensitive industrial equipment. Designed to maximize space, this single-pole device mounts onto standard DIN rail, allowing up to 24 breakers per foot. It is ideal for compact industrial control panels. Built to UL 1077 standards, it features a positively trip-free push-to-set mechanism.Specifications
| Brand | Allen Bradley |
|---|---|
| Series | 1492 |
| Amperage | 1A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 250VAC, 65VDC |
| Phase | 1 |
| AIC Rating | 0.1kA @ 250VAC, 0.1kA @ 65VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 22-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 22 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | G |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | CSA C22.2 No. 235, EN 60934, UL 1077 |
|---|---|
| Approval | CE, CSA, RoHS, UR, VDE |
| Temp Rating | -40C to 65C |
| Construction Features | High Density, Push-to-Set |
