Eaton A1X5PK Auxiliary Switch
Quantity
Core Specs
See full specs
Eaton A1X5PK Auxiliary Switch
New
Quantity
Description
Eaton A1X5PK Auxiliary Switch

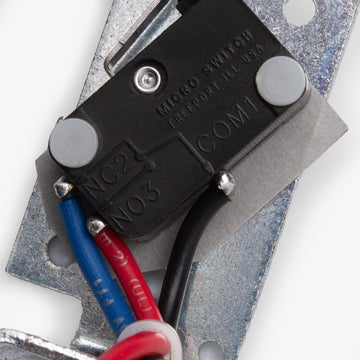

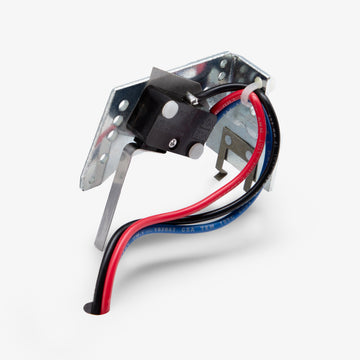

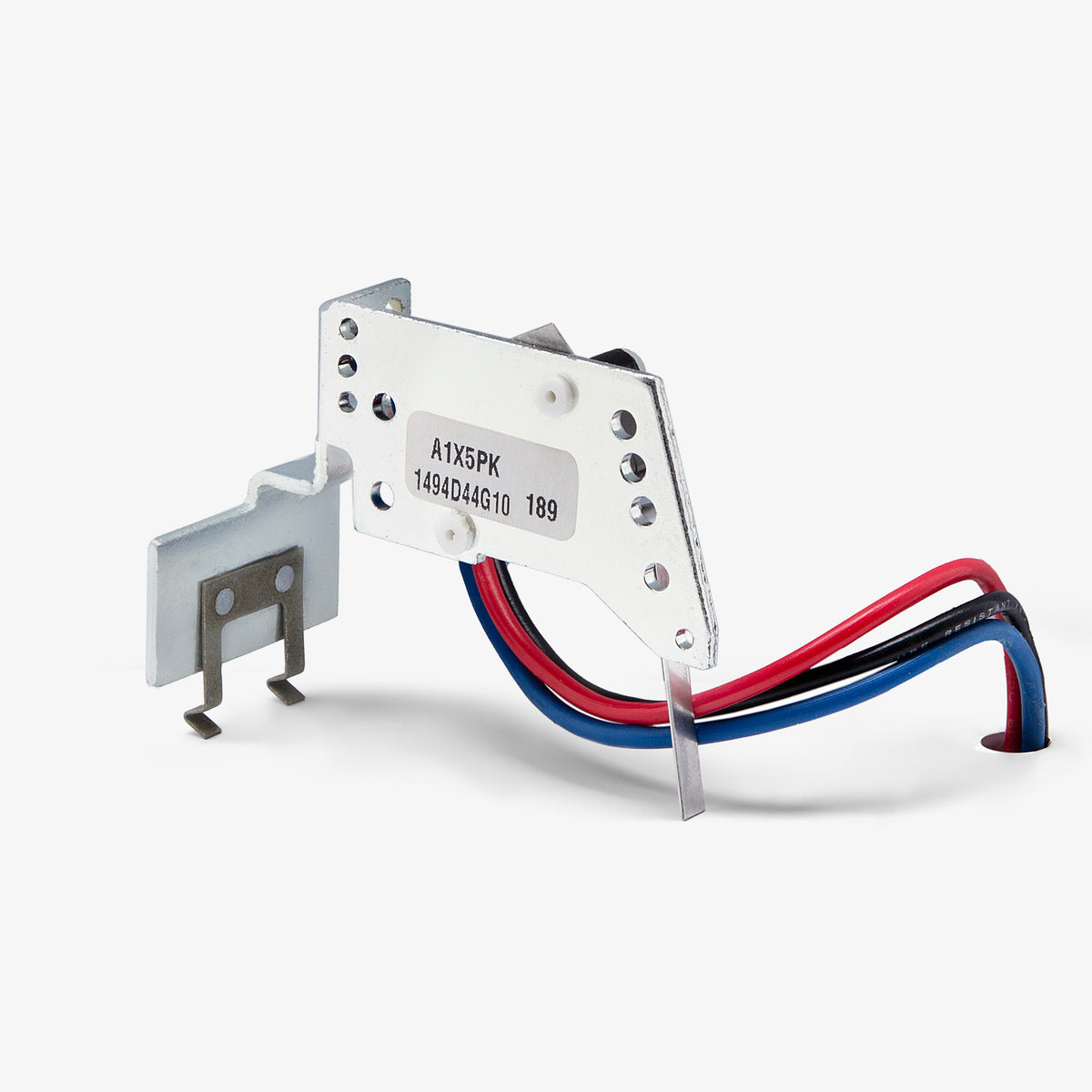

The Eaton A1X5PK is a circuit breaker auxiliary switch with a voltage rating of 600VAC. It has pigtail leads connection type. The A1X5PK is used for NGS, NGH, NGC, NGU, NG, E2N, E2NM frame molded case circuit breakers and type N-frame HMCP breakers.
Specifications
| Voltage | 600VAC |
|---|---|
| Series | C |
| Mounting Type | Left, Right Side |
| For Use With | NGS, NGH, NGC, NGU, NG, E2N, E2NM Frame Molded Case Circuit Breakers and Type N-Frame HMCP Breakers |
| Frame Type | NGS, NGH, NGC, NGU, NG, E2N, E2NM |
|---|---|

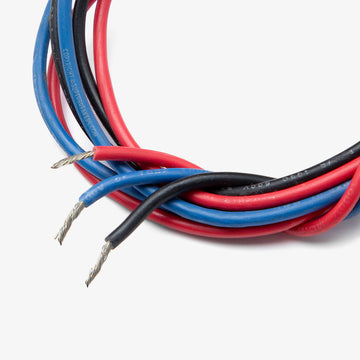

| Connection Type | Pigtail Leads |
| Length (in) | 5.5 |
| Width (in) | 3.2 |
| Height (in) | 3 |
| Contact Configuration | 1A, 1B |
|---|
| Approval | UL |
|---|
| Brand | Eaton |
|---|---|
| MPN | A1X5PK |
| UPC | 786679048481 |
