Eaton QCGFEP1025 Ground fault Circuit Breaker
- 30
- 1 Pole
- Panel
Quantity

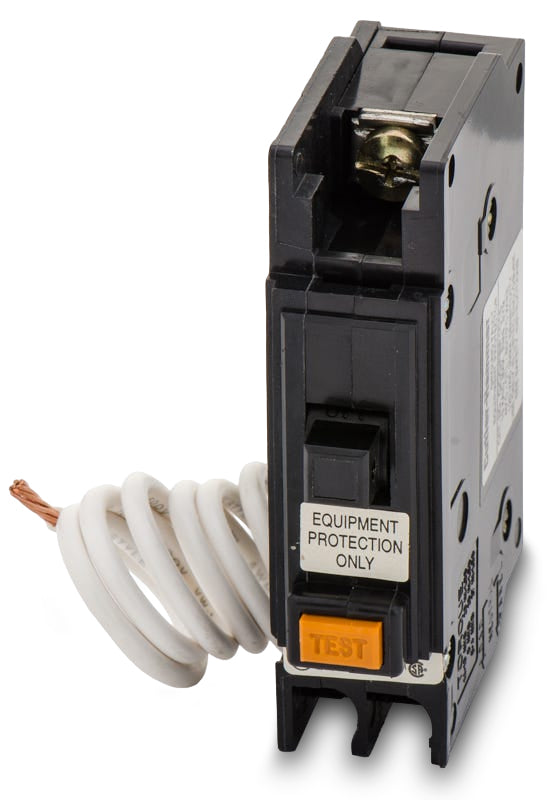

Eaton QCGFEP1025 1 Pole Ground fault Circuit Breaker
New
Quantity
Description
Eaton QCGFEP1025 1 Pole Ground Fault Circuit Breaker
The Eaton QCGFEP1025 is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The QCGFEP1025 has a panel mounting type and includes LI - long time and instantaneous functions.
Specifications
| Brand | Eaton |
|---|---|
| Series | QC |
| Amperage | 30 A |
| Poles | 1 |
| Mounting Style | Panel |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kAIC at 120V |
| Frame Type | QC |
|---|---|
| Terminal Type | Line and Load Side Lug |
| Wire Gauge | AWG 14 to AWG 10, AWG 14 to AWG 4, Aluminum/Copper |
| Trip Technology | Thermal Magnetic |
|---|
| Standards | HACR |
|---|---|
| Approval | UL, CSA |
Product FAQs
6 answersWhat is the ground fault trip sensitivity for the QCGFEP1025?
This breaker is an Equipment Protection (EP) device with a 30mA ground fault trip sensitivity. It is designed to protect equipment from damaging ground faults, rather than providing the 5mA personnel protection of a standard Class A GFCI.
Can I use this breaker for personnel ground fault protection?
No. The QCGFEP series provides 30mA equipment protection (GFEP), which is intended to protect machinery and heat tracing cables. For personnel protection, a Class A GFCI breaker with a 5mA trip threshold is required.
How does the QCGFEP1025 mount in a panel?
The QCGFEP1025 features a cable-in/cable-out connection type. It is designed for panel mounting using line and load side lugs rather than snapping or bolting directly onto a busbar.
What wire sizes are compatible with the lugs on this breaker?
The line and load lugs accept 14 AWG to 4 AWG aluminum or copper wire. Always torque connections to the manufacturer specifications during installation.
What does the LI function mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-time (overload) and Instantaneous (short-circuit) protection, which is standard for miniature circuit breakers.
Is the QCGFEP1025 a direct replacement for older Cutler-Hammer breakers?
Yes, Eaton manufactures the QC series as a direct replacement for legacy Cutler-Hammer and Westinghouse QC breakers with the same specifications.
