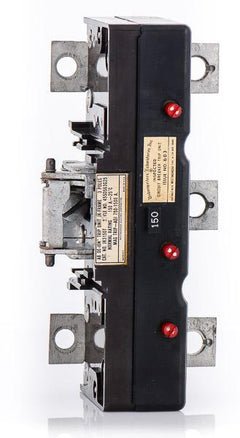

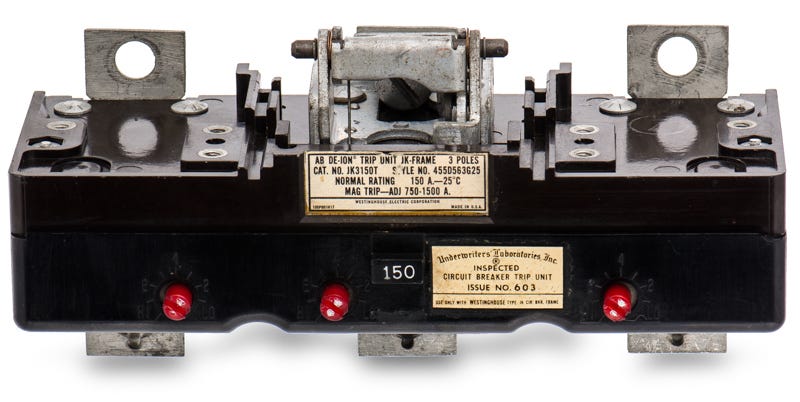

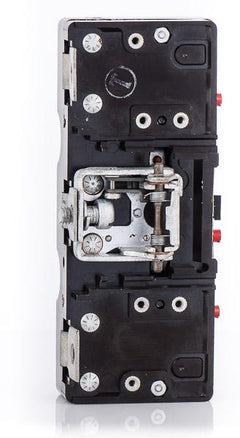

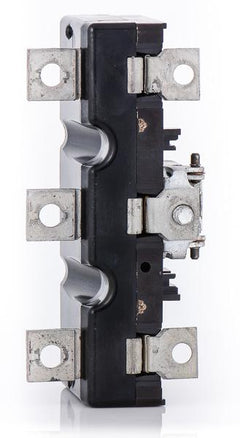

Westinghouse JK3150T Trip Unit
The Westinghouse JK3150T is a 3 Pole circuit breaker trip unit with a current rating of 150 Amps and a voltage rating of 600V. It has an interrupting rating of 30kAIC at 480V. The JK3150T has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Amperage | 150 A |
|---|---|
| Voltage | 600V |
| Functions | Long Time and Instantaneous Trip |
| Protection | Thermal Magnetic |
| Poles | 3 |
|---|---|
| Interrupting Rating | 30kAIC at 480V |
| Frame Type | JK |
|---|---|
| Connection Type | Bolt-On |
| Terminal Connection | Load Side Lug |
| Series | JK |
|---|---|
| Brand | Westinghouse |
| MPN | JK3150T-R |
