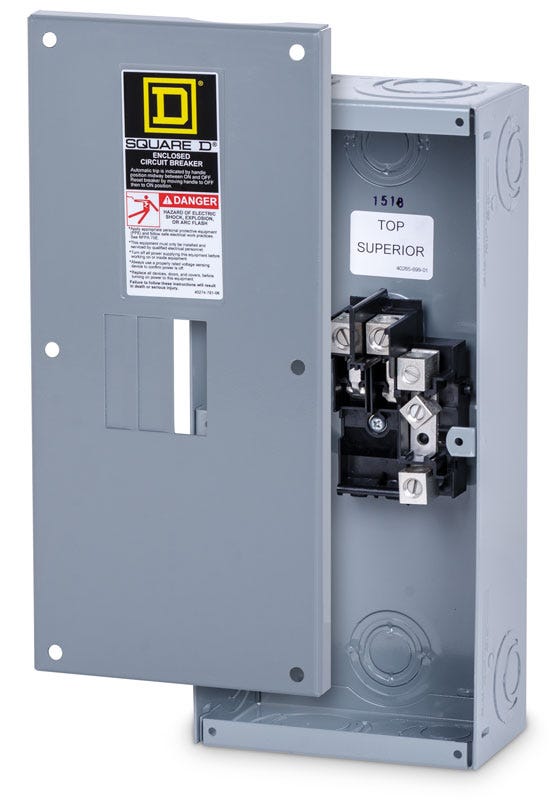

Square D QO2100BNS Enclosure
The Square D QO2100BNS is a panel board enclosure with a current rating of 100 Amps and a voltage rating of 120/240V. It has a surface mounting type and it is used for QO frame, 2 Pole molded case circuit breakers.
Specifications
| Amperage | 100 A |
|---|---|
| Voltage | 120/240V |
| Series | QO |
| Poles | 2 |
| Phase | 1 |
|---|---|
| Interrupting Rating | 22kAIC |
| Mounting Type | Surface |
|---|---|
| Frame Type | QO |
| Length (in) | 3.4 |
| Width (in) | 5.9 |
| Height (in) | 13.1 |
| Wire Gauge | AWG 14 to AWG 1, Copper AWG 12 to AWG 1, Aluminum |
| For Use With | QO Frame, 2 Pole Molded Case Circuit Breakers |
| Number Of Wires | 3 |
| Approval | UL |
|---|---|
| NEMA Rating | 1 |
| Standards | RoHS, REACh |
| Temperature Rating | 23 to 104 °F |
| Enclosure Material | Steel |
| Brand | Square D |
|---|---|
| Color | Gray |
| MPN | QO2100BNS |
| UPC | 785901051732 |
