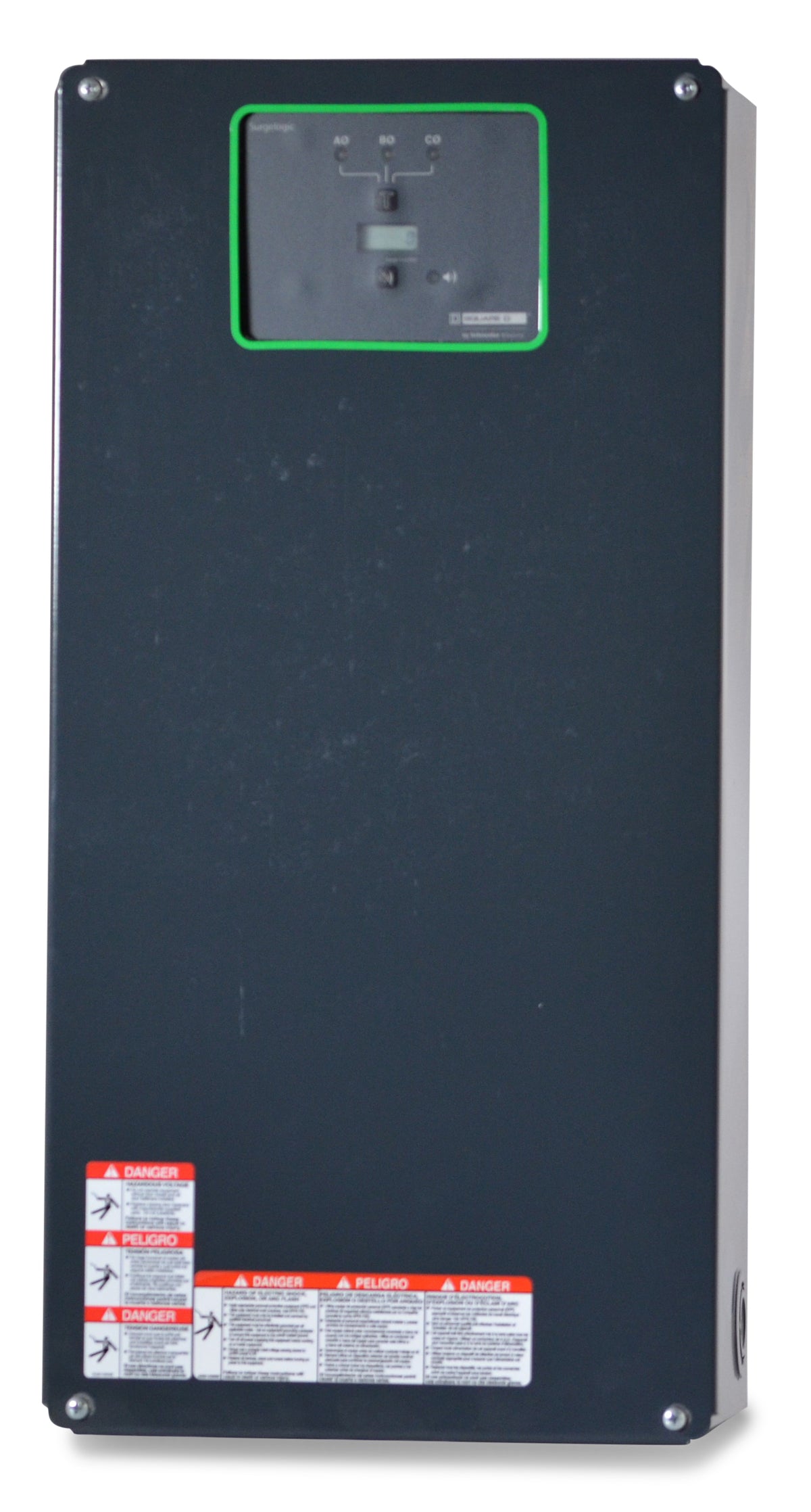

Square D SSP02EMA32 Surge Protection Device
The Square D SSP02EMA32 is a surge protection device with a current rating of 320000 Amps and a voltage rating of 208Y/120VAC. It features with QO frame type. The SSP02EMA32 has a surface mounting type and it consists of 4 wires.
Specifications
| Amperage | 320000 A |
|---|---|
| Voltage | 208Y/120VAC |
| Series | EMA |
| Mounting Type | Surface |
| Phase | 3 |
|---|
| Frame Type | QO |
|---|---|
| Terminal Connection | Lug |
| Wire Gauge | AWG 10 to AWG 2 Copper |
| Number Of Wires | 4 |
| Approval | UL, CSA, ANSI, IEEE |
|---|---|
| NEMA Rating | 1 |
| Standards | RoHS |
| Temperature Rating | 65 °C |
| Enclosure Material | Painted Sheet Steel |
| Brand | Square D |
|---|---|
| Color | Gray |
| MPN | SSP02EMA32 |
| GTIN | 785901972334 |
