Schneider Electric GVAN20 Contact Block
Quantity
Core Specs
See full specs
Schneider Electric GVAN20 Contact Block
New
Quantity
Description

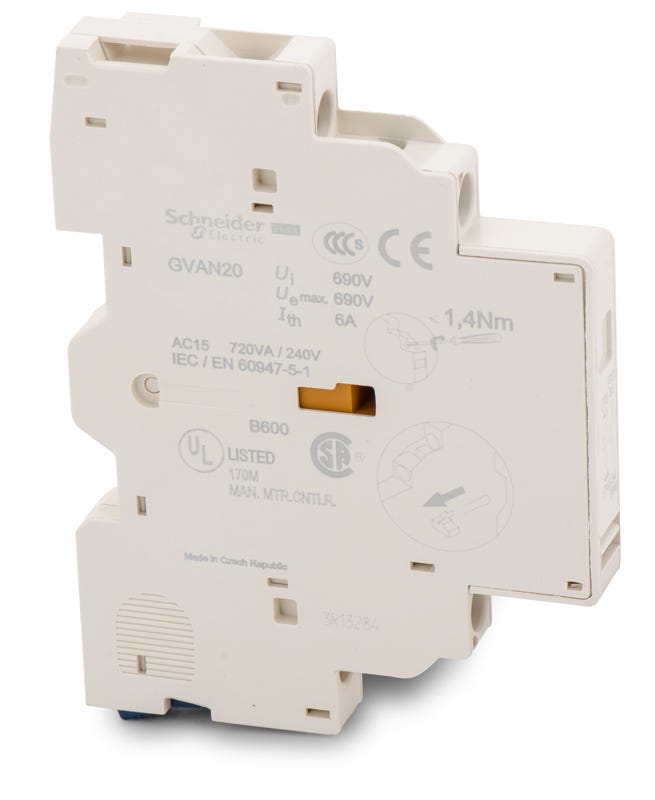

Schneider Electric GVAN20 Auxiliary Contact Block
The Schneider Electric GVAN20 is a 1 Pole auxiliary contact block with a current rating of 6 Amps and a voltage rating of 690VAC, 240VDC. It has a contact configuration of 2NO. The GVAN20 has a screw clamp terminal connection and it has a side mounting type.
Specifications
| Contact Configuration | 2NO |
|---|---|
| Terminal Connection | Screw Clamp |
| Mounting Type | Side |
| Amperage | 6 A |
| Poles | 2 |
|---|---|
| Voltage | 690VAC, 240VDC |
| Length (in) | 2.59 |
|---|---|
| Width (in) | 0.36 |
| Height (in) | 3.5 |
| Series | GV |
|---|---|
| Brand | Schneider Electric |
| Color | Dark Gray |
| MPN | GVAN20 |
| UPC | 785901212454 |
