Eaton A202K1CA Contactor
Quantity
Core Specs
See full specs
Eaton A202K1CA Contactor
New
Quantity
Description

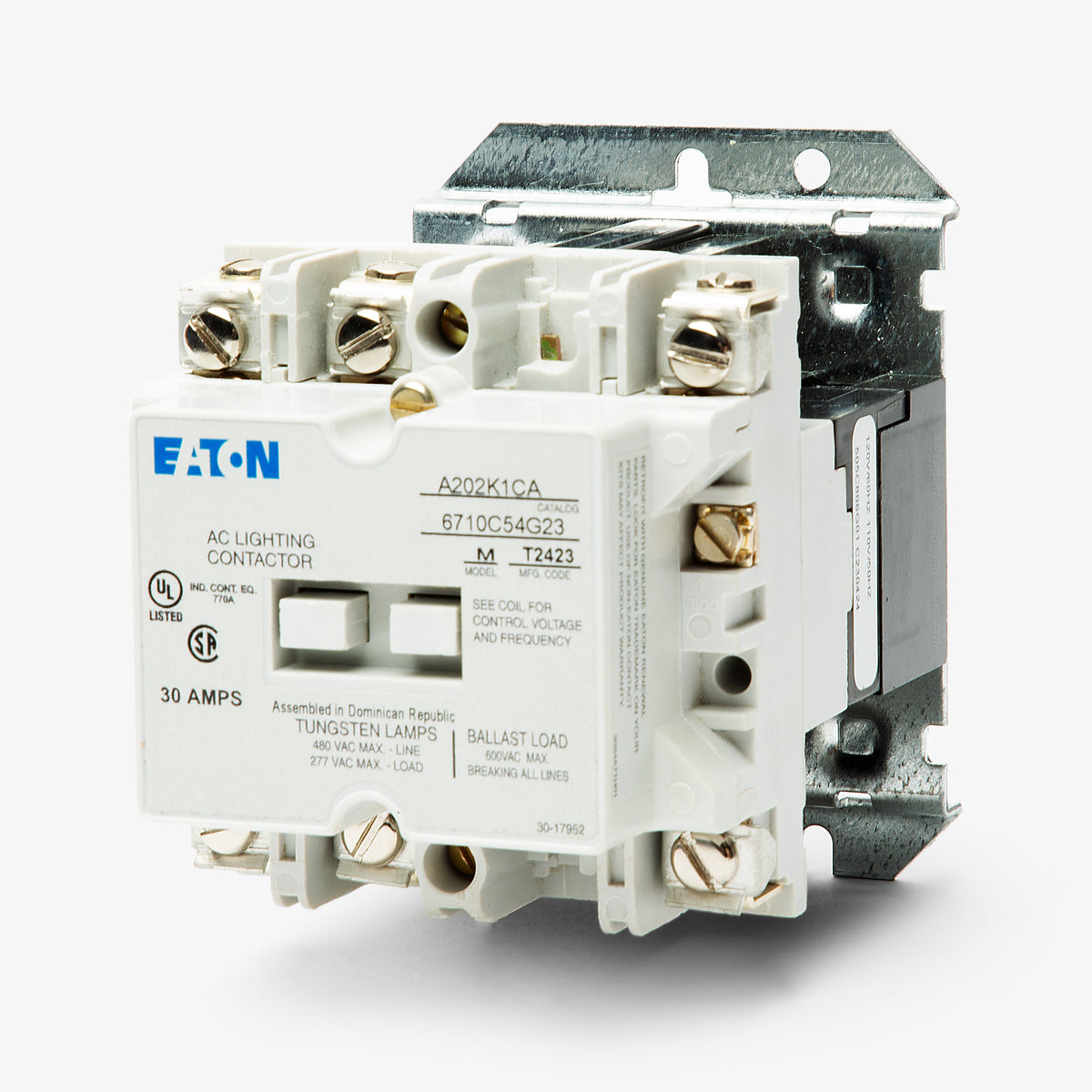

Eaton A202K1CA Contactor
The Eaton A202K1CA is a 3 Pole contactor with a current rating of 30 Amps and a voltage rating of 600VAC. It has a coil volts of 110VAC at 50Hz, 120VAC at 60Hz. The A202K1CA has a surface mounting type and it is used for structures - commercial, institutional buildings, lighting controls, electrical assemblies, panels and EOEMs applications.
Specifications
| Amperage | 30 A |
|---|---|
| Poles | 3 |
| Voltage | 600VAC |
| Phase | 3 |
| Mounting Type | Surface |
|---|---|
| Frame Type | A202 |
| Terminal Connection | Box Lug |
| NEMA Size | 1 |
| Protection | Magnetic |
|---|
| Approval | UL, CSA |
|---|
| Series | A202 |
|---|---|
| Brand | Eaton |
| MPN | A202K1CA |
| UPC | 786678231815 |
