Eaton C25DNJ350A Contactor
Quantity
Core Specs
See full specs
Eaton C25DNJ350A Contactor
New
Quantity
Description

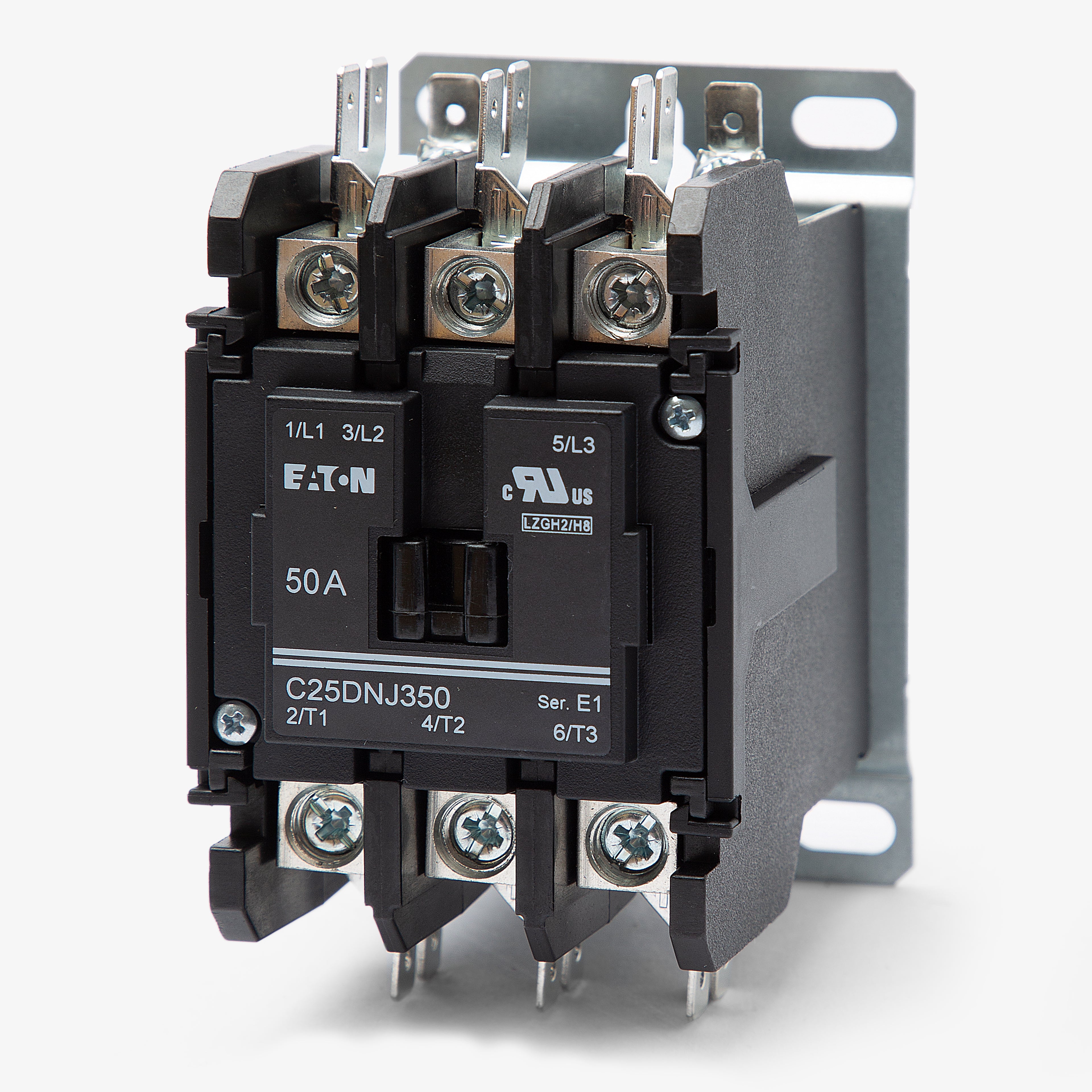

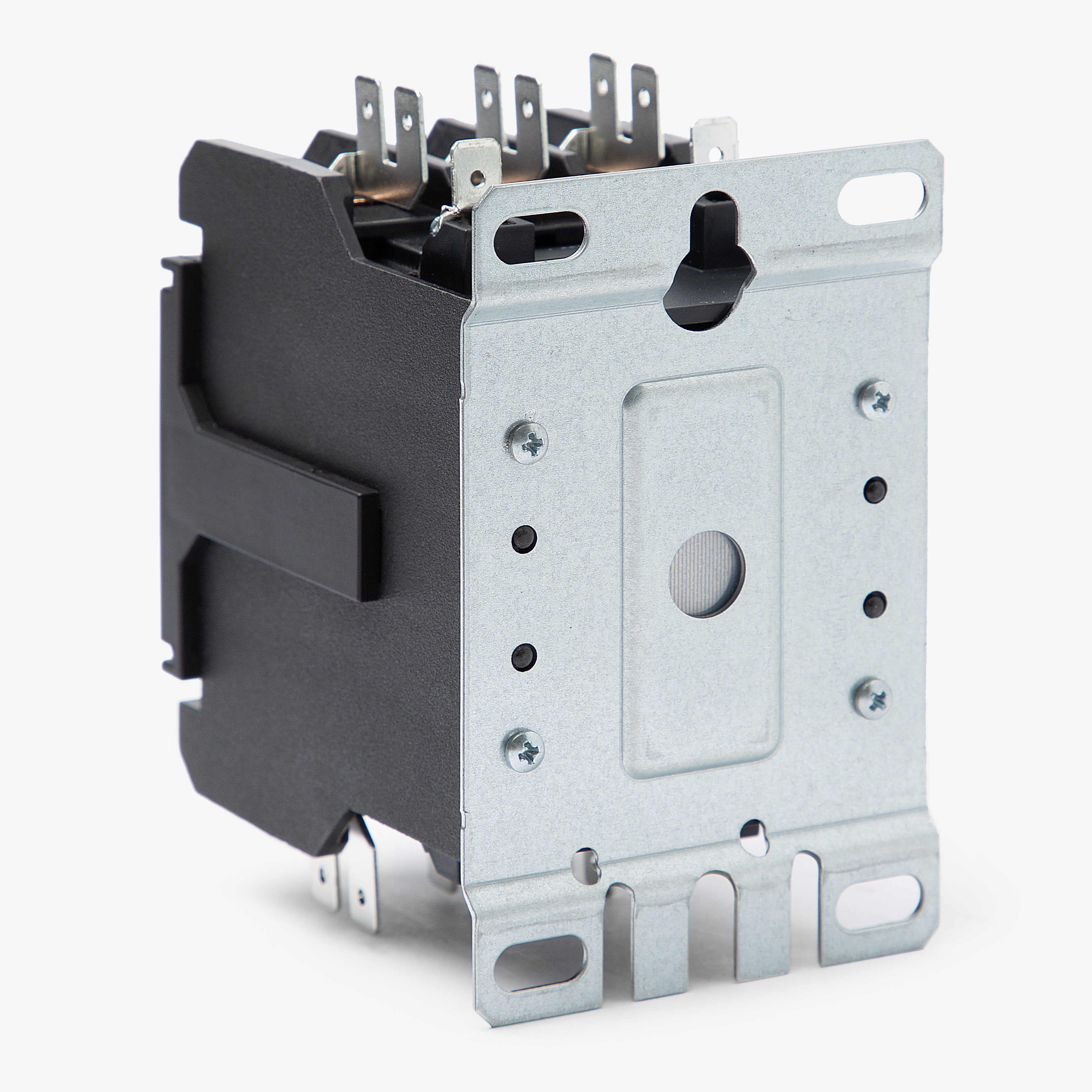

Eaton C25DNJ350A Contactor
The Eaton C25DNJ350A is a 3 Pole contactor with a current rating of 50 Amps and a voltage rating of 600/690VAC. It has a coil volts of 110/120VAC at 50/60Hz. The C25DNJ350A used for Cutler Hammer definite purpose motor control systems.
Specifications
| Amperage | 50 A |
|---|---|
| Coil Volts | 110/120VAC at 50/60Hz |
| Poles | 3 |
| Voltage | 600/690VAC |
| Phase | 3 |
|---|
| Mounting Type | Panel |
|---|---|
| Frame Type | C25 |

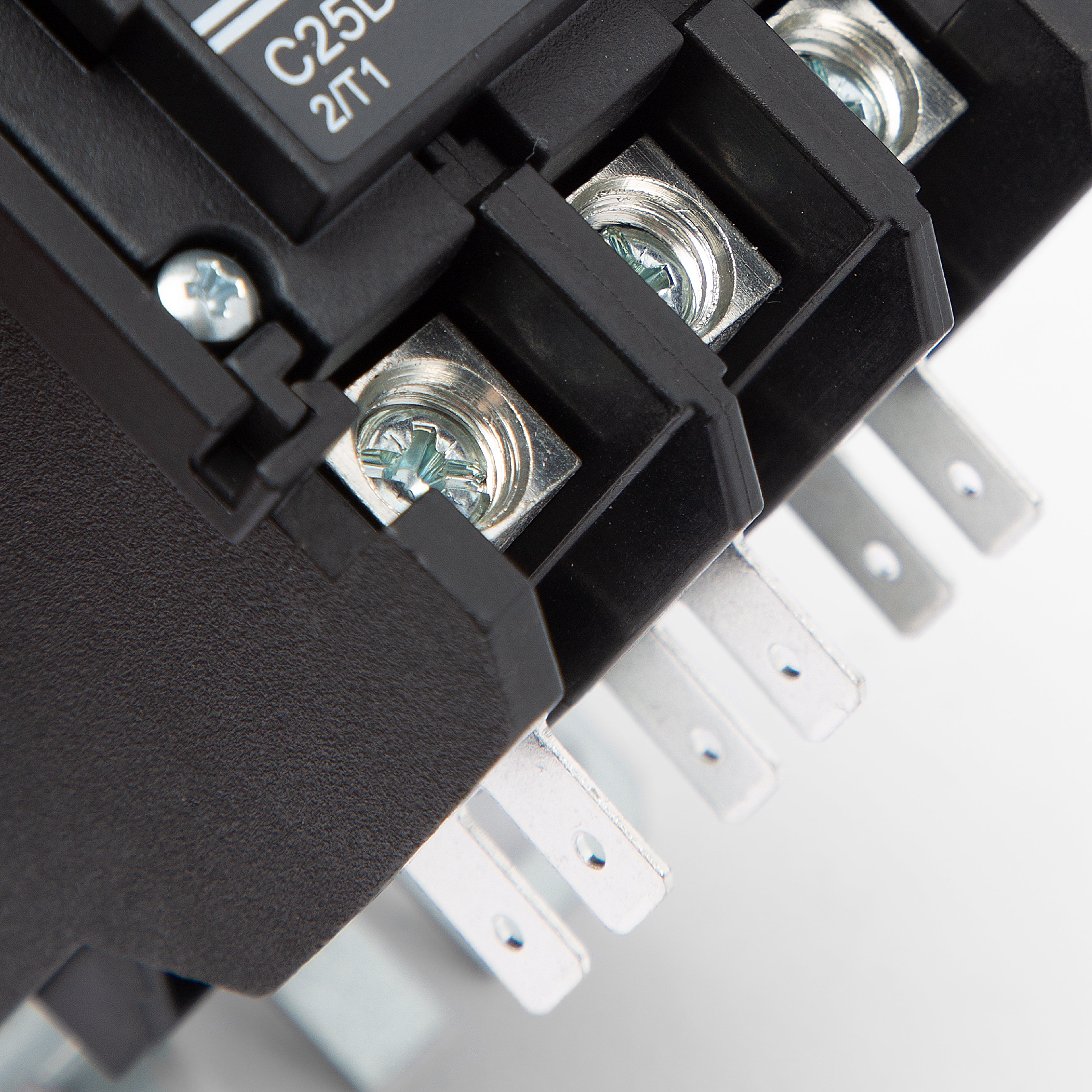

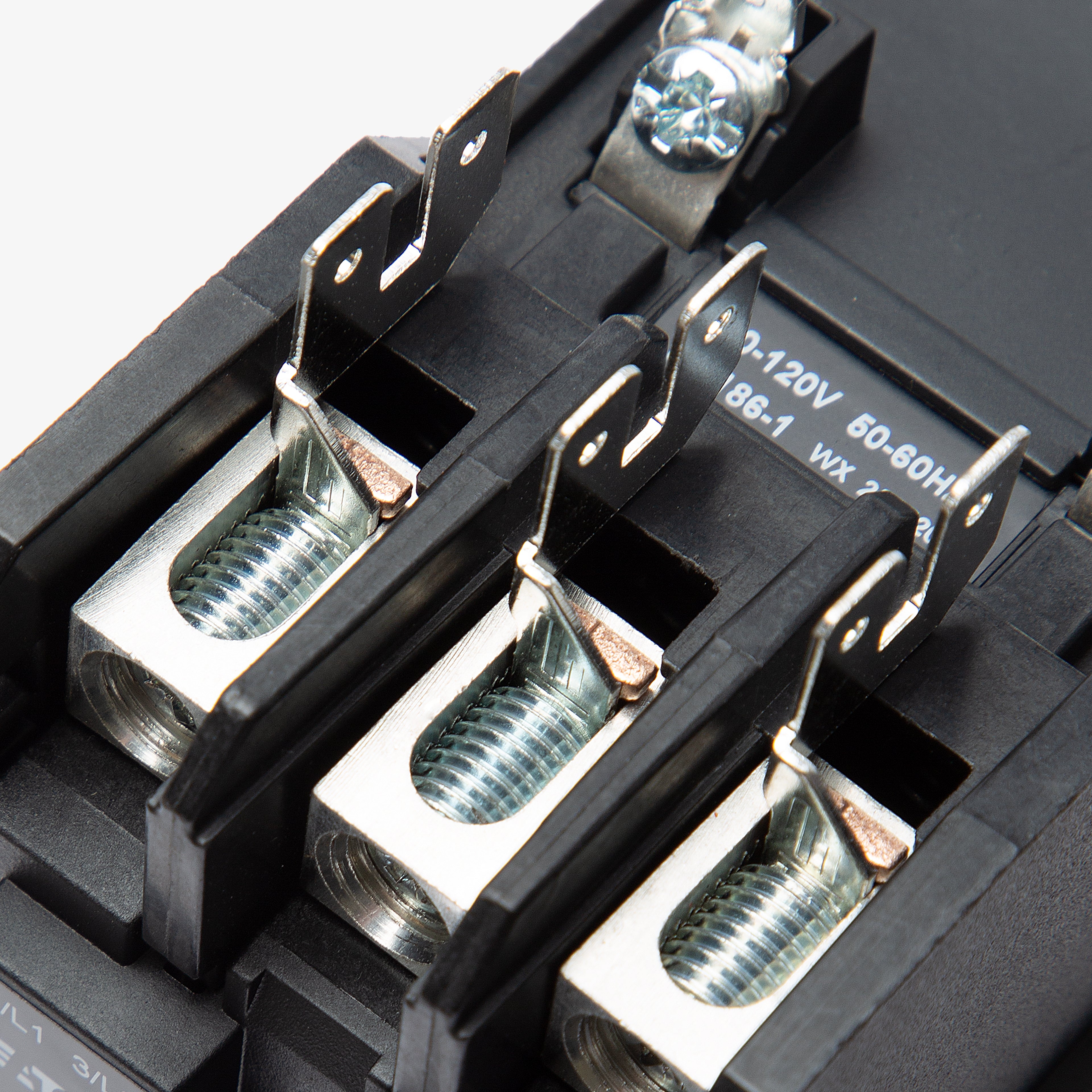

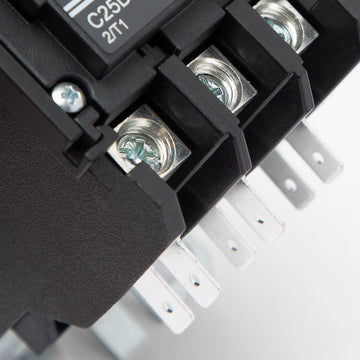

| Terminal Connection | Box Lug, Quick Disconnect |
| Length (in) | 3.35 |
| Width (in) | 2.4 |
| Height (in) | 3.75 |
| For Use With | Cutler Hammer Definite Purpose Motor Control Systems |
| Action | Non-Reversing |
|---|
| Approval | CSA, UL, CE |
|---|---|
| Standards | RoHS |
| Temperature Rating | -13 to 158 °F |
| Series | C25 |
|---|---|
| Brand | Eaton |
| MPN | C25DNJ350A |
| UPC | 782116300723 |
