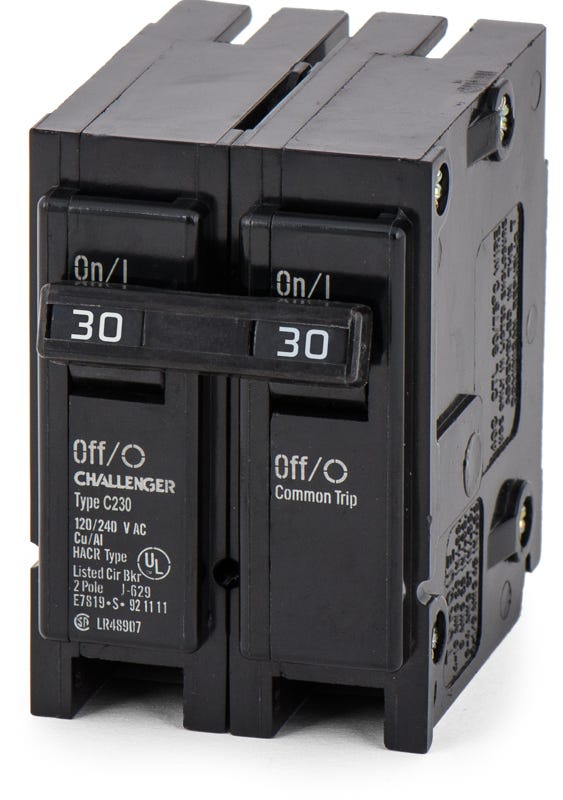

Eaton / Challenger C230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Quantity
Eaton / Challenger C230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Description
Providing exact-fit compatibility for discontinued electrical systems, the C230 ensures safe power distribution. This 30-amp, two-pole breaker supports residential and commercial applications without requiring expensive panelboard upgrades. It seamlessly installs into Challenger Type C, Westinghouse, and Eaton BR load centers using a standard plug-on connection. The BR230 is the recommended modern replacement.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Part Number | C230-R |
| Series | C |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type C Load Centers, Eaton Type BR Load Centers, Westinghouse Type BR Load Centers |
| Wire Gauge | 14 AWG - 4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | UL 489 |
|---|---|
| Approval | HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
5 answersCan I install the Challenger C230 in a modern Eaton load center?
Yes. The C230 is compatible with Eaton Type BR load centers, as well as legacy Challenger Type C and Westinghouse Type BR panels.
What is the modern replacement for the Challenger C230?
The Eaton BR230 is the direct, UL-listed replacement for the Challenger C230. Eaton acquired the Challenger line and manufactures the BR series to replace Type C breakers.
What are the terminal torque specifications for this breaker?
For the box lug terminals, torque to 20 in-lbs for 14 to 10 AWG, 25 in-lbs for 8 AWG, and 27 in-lbs for 6 to 4 AWG wire.
Is the Challenger C230 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this designation.
Is it safe to use Challenger Type C breakers in a Westinghouse panel?
Yes, provided the Westinghouse panel is specifically listed to accept Type BR or Type C breakers. Always verify the panel's label for approved breaker types before installation.
