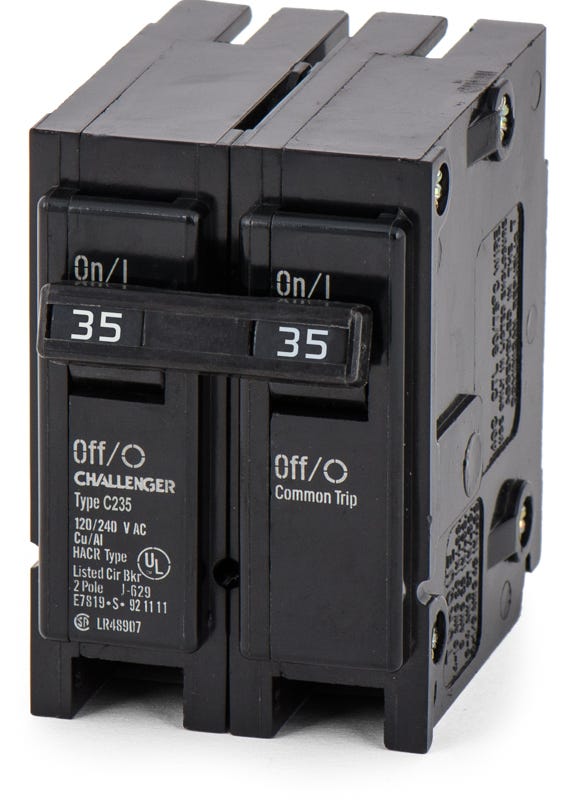

Eaton / Challenger C235 Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
Quantity
Eaton / Challenger C235 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Challenger C235 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Challenger |
|---|---|
| Part Number | C235 |
| Series | Type C |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type C Load Centers, Eaton Type BR Load Centers, Westinghouse Type BR Load Centers |
| Wire Gauge | #14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Quantity
Eaton / Challenger C235 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Challenger |
|---|---|
| Part Number | C235-R |
| Series | Type C |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type C Load Centers, Eaton Type BR Load Centers, Westinghouse Type BR Load Centers |
| Wire Gauge | #14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Description
Maintaining older residential power systems requires precise component matching, and this 35-amp plug-on unit delivers exact compatibility for Challenger Type C panels. It functions as a reliable alternative to the BR235 or UBITB235, ensuring safe operation in existing setups. The thermal-magnetic trip mechanism provides standard 10kAIC protection for 120/240V circuits. Contractors frequently utilize this HACR-rated model when servicing vintage Eaton BR or Westinghouse BR load centers.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Part Number | C235-R |
| Series | Type C |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type C Load Centers, Eaton Type BR Load Centers, Westinghouse Type BR Load Centers |
| Wire Gauge | #14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Product FAQs
6 answersCan I use the Challenger C235 in a modern Eaton BR load center?
Yes. Eaton acquired the Challenger line, and Type C breakers are fully interchangeable with Eaton Type BR breakers. They are UL listed for use in Eaton BR, Bryant, and Westinghouse load centers.
What is the modern direct replacement for the Challenger C235?
The modern equivalent manufactured by Eaton is the BR235. Because Eaton integrated the Challenger line into their Type BR family, the BR235 serves as the exact replacement for older C235 units.
Is this breaker compatible with Square D or Siemens electrical panels?
No. The Challenger C235 features a specific plug-on mounting design that is only UL listed for Challenger Type C, Eaton Type BR, and Westinghouse Type BR load centers. It will not safely fit or operate in Square D, Siemens, or GE panels.
Can the C235 be used as a back-fed main breaker?
Yes, this plug-on breaker can function as a back-fed main breaker in a compatible load center, provided it is secured with an approved hold-down retainer kit as required by the National Electrical Code.
Does the C235 provide ground fault or arc fault protection?
No, the C235 is a standard thermal-magnetic breaker. It provides long-time overload and instantaneous short-circuit protection but does not include GFCI or AFCI capabilities.
Does this breaker provide HACR protection?
Yes, the C235 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific type of branch circuit protection.
