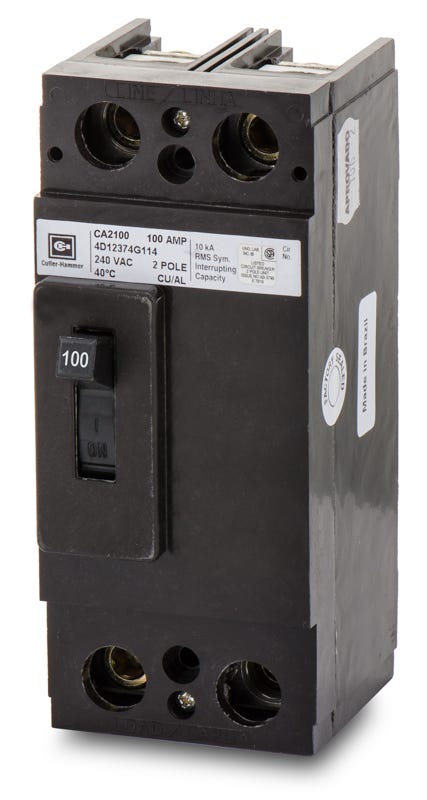

Eaton / Cutler-Hammer CA2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer CA2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CA2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2100 |
| Series | CA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CA2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2100-R |
| Series | CA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description
Engineered for commercial and industrial applications, the Eaton CA2100 is a 2-pole, 100A molded case circuit breaker. It provides essential overcurrent protection for aging electrical systems requiring standard unit-mount configurations. This C-Frame breaker installs into legacy Westinghouse CDP, FDP, and Pow-R-Line panelboards. It serves as a substitute for CC2100 models and is officially replaced by the newer EHD2100 series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2100 |
| Series | CA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat is the modern replacement for the CA2100 circuit breaker?
The CA2100 is a legacy C-Frame breaker. If you need a modern equivalent for panel upgrades or replacements, the Eaton EHD2100 series serves as the official direct replacement.
Can the CA2100 replace older CC-frame breakers?
Yes, the CA2100 can be used as a direct substitute for legacy CC2100 circuit breaker models in existing electrical systems.
Which panelboards are compatible with the CA2100?
This unit-mount breaker is designed to install into classic Westinghouse CDP, FDP, and Pow-R-Line panelboards.
Are the trip settings on the CA2100 adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection functions, meaning the trip curve cannot be adjusted in the field.
How is the CA2100 breaker installed?
The CA2100 is a unit-mount breaker with a feed-thru connection type, designed to be bolted directly into the chassis of compatible commercial and industrial panelboards.
