Eaton / Cutler-Hammer CCV2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Quantity

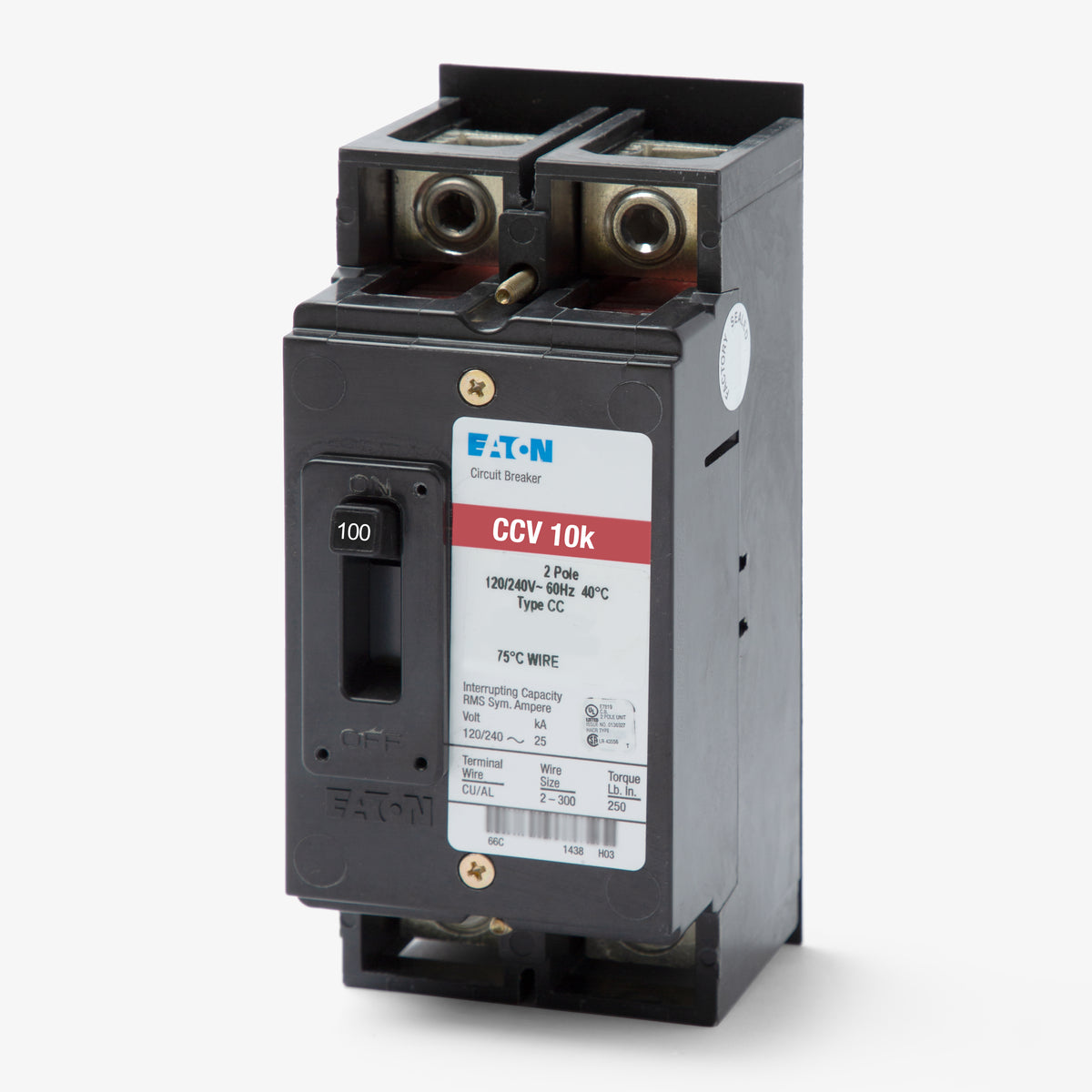

Eaton / Cutler-Hammer CCV2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for multi-tenant applications, the Eaton CCV2100 is a 2-pole, 100A tenant main circuit breaker. It provides dependable thermal-magnetic protection for residential and commercial metering centers. This bolt-on breaker mounts into Type ECC unit enclosures, as well as 1MP, 1MM, and 3MM modular meter stacks. It accepts 2/0 AWG to 300 kcmil wire and serves as a direct replacement for the legacy CC2100 breaker. Featuring a 10kAIC rating at 120/240V, it meets UL 489 and CSA standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCV2100 |
| Series | CCV |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Product FAQs
7 answersCan the CCV2100 be used as a tenant main breaker in multi-family metering centers?
Yes, it is specifically designed as a tenant main circuit breaker for residential and commercial metering centers. It bolts directly into Eaton 1MP, 1MM, and 3MM modular meter stacks, as well as Type ECC unit enclosures.
What is the direct replacement for the legacy Cutler-Hammer CC2100 breaker?
The CCV2100 is the direct, manufacturer-approved replacement for the obsolete CC2100 circuit breaker.
Is there a version of this 100A breaker with a higher interrupting rating?
Yes. While the CCV2100 is rated for 10kAIC at 240V, the CCVH2100 shares the exact same physical dimensions but offers a higher interrupting capacity of 25kAIC.
What does the X suffix mean on Eaton CCV breaker catalog numbers?
A catalog number with an X suffix, such as CCV2100X, indicates the breaker is supplied with load-side lugs only. The standard CCV2100 includes both line and load lugs installed from the factory.
Are the factory lugs on the CCV2100 rated for aluminum wire?
Yes, the standard line and load lugs are rated for both copper and aluminum conductors ranging from 2/0 AWG to 300 kcmil.
Can the CCV2100 be reverse fed for backfeed applications?
Eaton molded case breakers like the CCV series can only be reverse fed if they are factory sealed and do not have Line and Load markings printed on the cover. If the breaker cover is marked with Line and Load, it must not be reverse fed.
What are the physical dimensions of the CCV2100 breaker?
The breaker measures 7.7 inches in length, 4.5 inches in width, and 5.4 inches in height, with a weight of approximately 3 pounds.
