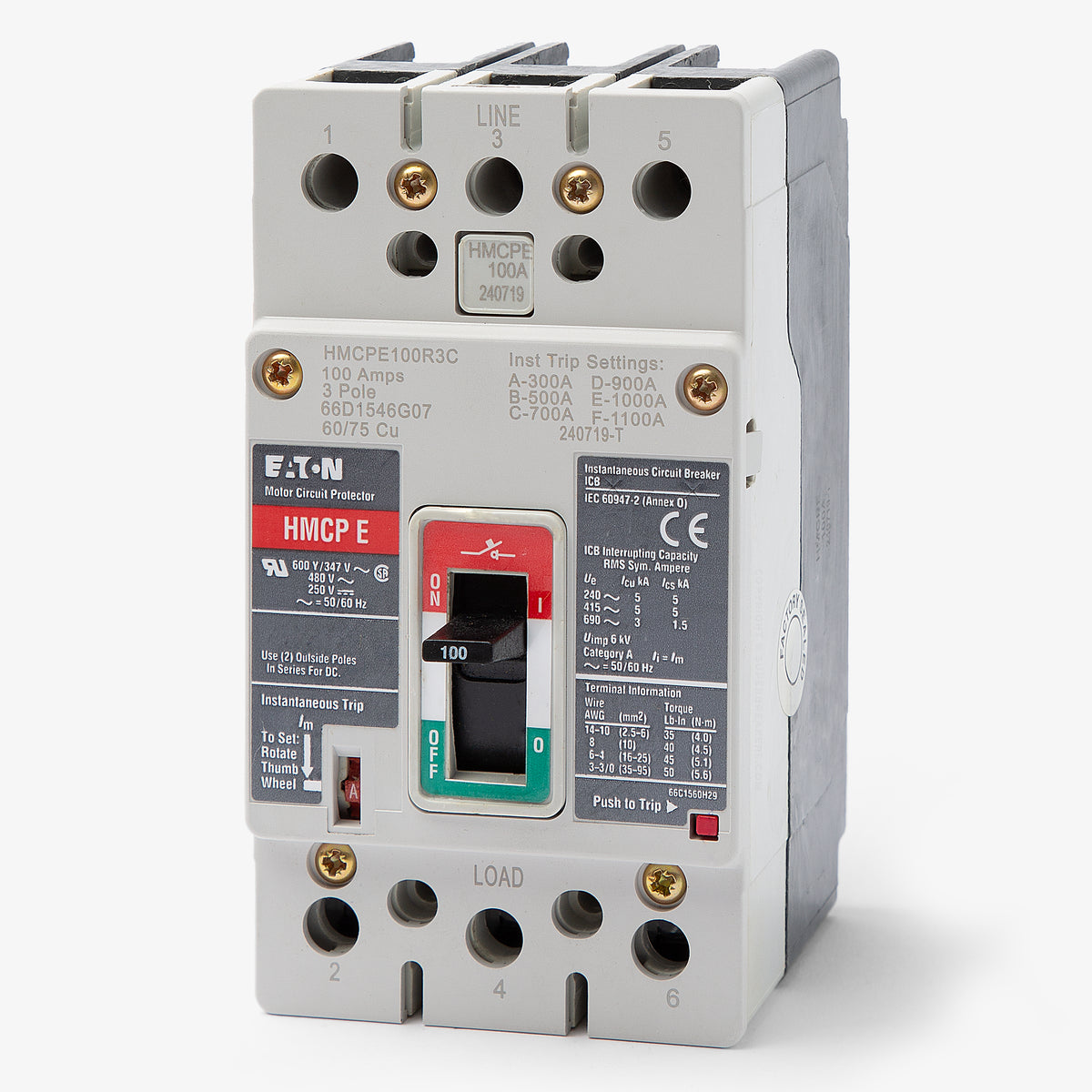

Eaton / Cutler-Hammer HMCPE100R3C Motor Circuit Protector
- 100A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer HMCPE100R3C - 100A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Eaton / Cutler-Hammer HMCPE100R3C - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCPE100R3C |
| Series | HMCPE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series G Motor Starters, Eaton Series G Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer HMCPE100R3C - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCPE100R3C-R |
| Series | HMCPE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series G Motor Starters, Eaton Series G Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
Description
Designed to safeguard industrial machinery, the HMCPE100R3C is a 100A, 3-pole Series G motor circuit protector. It offers magnetic-only trip functionality to handle motor inrush currents without nuisance tripping. This EG-frame unit installs into Eaton motor control centers and compatible panelboards. Rated to interrupt 65 kAIC at 480VAC, it features an adjustable trip range from 300A to 1000A and utilizes non-aluminum lugs to ensure secure, high-performance wire terminations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCPE100R3C |
| Series | HMCPE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series G Motor Starters, Eaton Series G Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
