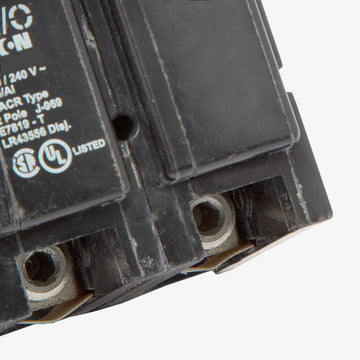

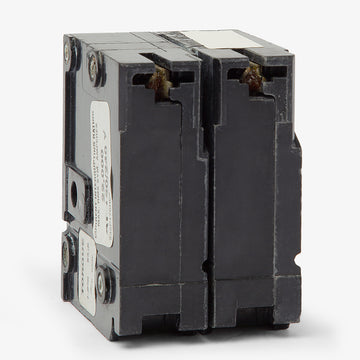

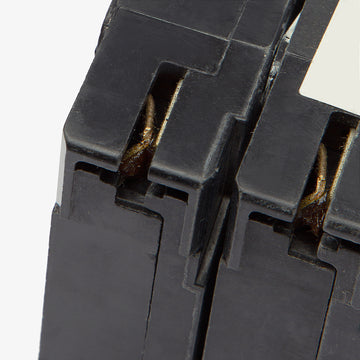

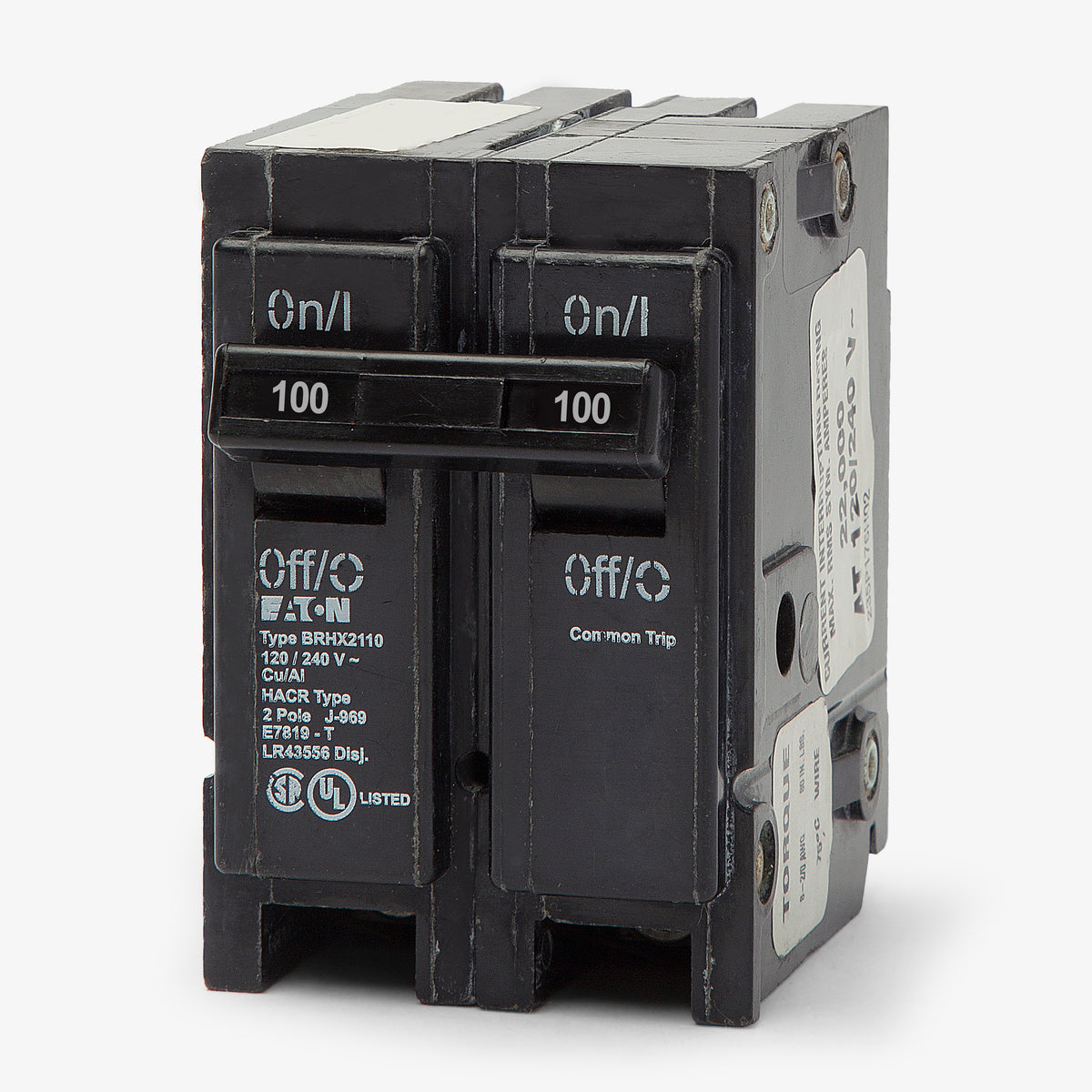

Eaton / Cutler-Hammer BRHX2100 Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRHX2100
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRHX2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRHX2100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
110A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Manufactured for residential and commercial applications, the Eaton BRHX2100 is a 100A, two-pole miniature circuit breaker. It utilizes thermal-magnetic trip technology to deliver consistent overload protection for heavy-duty branch circuits. This unit installs into standard Type BR load centers and Eaton group metering stacks. The plug-on design ensures a secure connection. Rated at 22 kAIC at 120/240VAC, this breaker offers high interrupting capacity and carries an HACR rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRHX2100 |
| Series | BRHX |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type BR Load Centers, Eaton Group Metering Stacks, Meter Breakers |
| Wire Gauge | #4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Tenant Main, Main Breaker |
Product FAQs
5 answersWhat enclosures and panels are compatible with the BRHX2100?
This breaker installs into standard Eaton Type BR load centers, meter breakers, and Eaton residential group metering stacks. It is frequently utilized in multi-family housing where compact group metering is required.
Why specify a BRHX series breaker instead of a standard BRH series?
The BRHX platform is engineered specifically for 3-tier series combination ratings. It allows a 65 kAIC rated main circuit breaker upstream to protect a 22 kAIC rated tenant main. This provides a compliant, cost-effective solution for multi-family group metering applications with high fault current requirements.
Can a BRH2100 be used as an alternative to the BRHX2100?
Yes, for standard 22 kAIC fully rated applications, Eaton recommends the BRH2100 as the standard alternative. However, if the project specifically requires a 3-tier series rating with a 65 kAIC upstream main in a group metering stack, the BRHX2100 must be used to maintain the UL series rating.
Is a hold-down kit required when installing this breaker?
A hold-down retainer kit, such as the BREQS125 for main lug only (MLO) load centers, is required by the NEC only if the breaker is being back-fed as a main breaker. This prevents the breaker from being accidentally removed while energized.
Is the trip unit on the BRHX2100 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit with non-interchangeable long-time and instantaneous (LI) trip functions.
