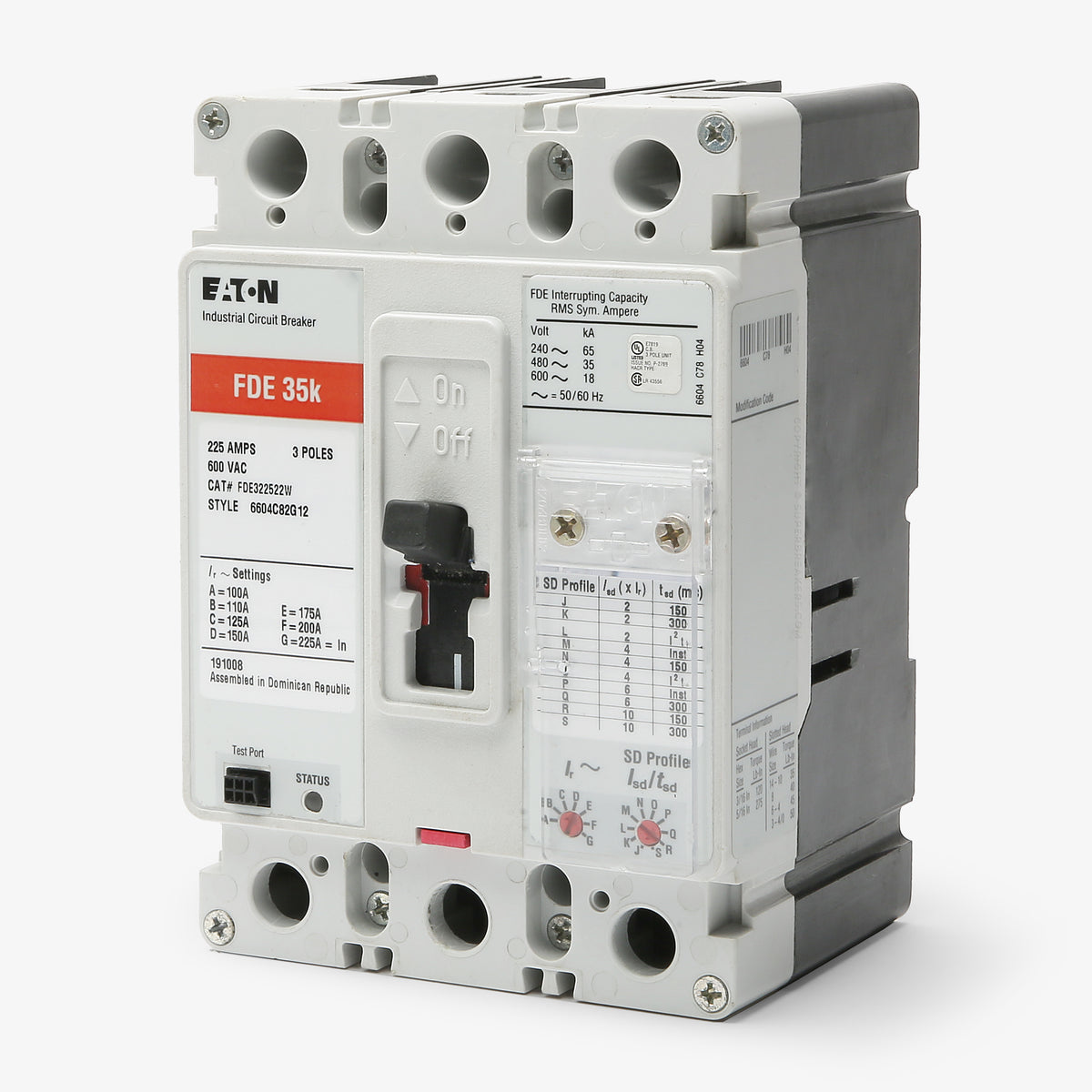

Eaton / Cutler-Hammer FDE310022 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity

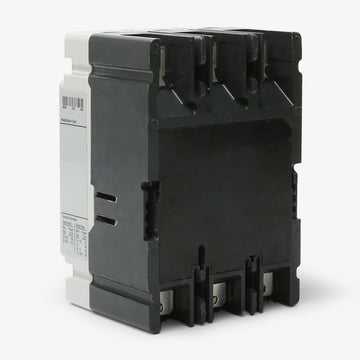

Eaton / Cutler-Hammer FDE310022 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for precise power distribution, this 100A Eaton F-Frame breaker utilizes advanced electronic trip technology. The three-pole device is designed to handle rigorous commercial environments with consistent reliability. Compatible with Series C panelboards, the bolt-on MCCB integrates seamlessly into existing Eaton infrastructure. Featuring a Digitrip 210 unit with LSI capabilities, it allows for fine-tuned coordination and accurate response to fault conditions across complex networks.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDE310022 |
| Series | FDE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Frame Type | F |
|---|---|

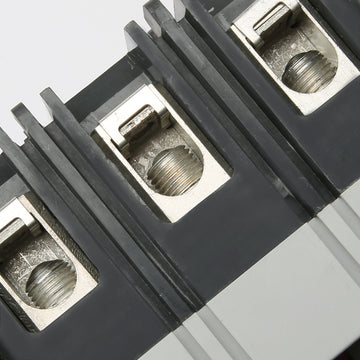

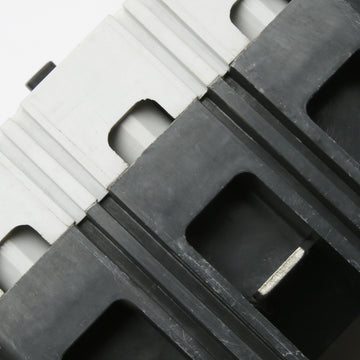

| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Terminals |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, True RMS Sensing |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the FDE310022?
This F-frame breaker is designed to mount in Eaton Series C panelboards, switchboards, and motor control centers. It fits the same physical footprint as standard FD-frame breakers.
What type of trip unit is equipped on the FDE310022?
It features a Digitrip 210 RMS electronic trip unit. This provides LSI (Long-Time, Short-Time, and Instantaneous) protection, allowing for fine-tuned coordination and accurate response to fault conditions.
Is the continuous current rating on the FDE310022 adjustable?
Yes, the Digitrip 210 electronic trip unit features a dial that allows the continuous current rating to be adjusted from 40A up to the maximum 100A frame capacity.
Can the FDE310022 be reverse fed?
Yes, Eaton Series C F-frame circuit breakers, including electronic FDE models, are suitable for reverse feed applications.
What is the difference between Eaton FD and FDE circuit breakers?
FD breakers use traditional thermal-magnetic trip units, while FDE breakers utilize advanced electronic trip units like the Digitrip 210. Both share the same physical F-frame dimensions and mounting hardware.
How can the trip unit on the FDE310022 be tested?
The Digitrip 210 electronic trip unit includes a built-in test port for secondary injection testing, allowing electricians to verify breaker performance and trip settings during maintenance.
