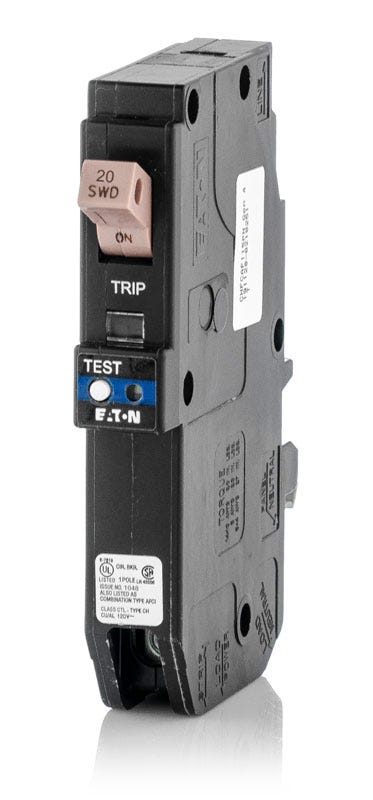

Eaton / Cutler-Hammer CHFAFGF120PN Dual Function Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFAFGF120PN
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFAFGF120PN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFAFGF120PN - 20A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFP120DF
20A Dual Function Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN120DF
20A Dual Function Miniature Circuit Breaker
Description
Part of Eaton's CH series, this 20A dual-function breaker delivers Combination Type arc-fault and ground-fault protection. Serving as an ideal solution for kitchen and laundry circuits, it meets mandatory dual NEC compliance. Engineered for Eaton CH plug-on neutral load centers, it connects to the neutral bar without a pigtail wire. This catalog number is superseded by the newer CHFP120DF. Featuring a 10kAIC rating at 120VAC, it includes a trip flag and an LED diagnostic system.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Trip Flag |
| Standards | HACR Rated, UL 1699, UL 489, UL 943 |
| Approval | UL, UL 1699, UL 489, UL 943 |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated, Self-Test |
Product FAQs
6 answersWhat is the difference between the CHFAFGF120PN and the CHFP120DF?
The CHFP120DF is Eaton's direct, newer generation replacement for the CHFAFGF120PN. Both are 20A, 1-pole dual-function breakers designed for CH plug-on neutral load centers.
Can I install this plug-on neutral breaker in an older, non-PON Cutler-Hammer CH load center?
No. Plug-on neutral (PON) breakers lack a pigtail wire and require a compatible Eaton CH PON load center with a specialized neutral bar to function correctly.
How do I read the LED diagnostic blink codes if this breaker trips?
The red LED will blink a specific number of times to indicate the fault. One blink indicates a series arc, two blinks for a parallel arc, three for an overload, four for overvoltage, five for a ground fault, and six for a self-test failure.
Why is the red LED on my dual-function breaker staying solidly lit after installation?
Eaton has identified that a constantly illuminated red LED on some CH dual-function breakers is a cosmetic issue. It does not indicate a fault or affect the breaker's ability to protect against arc and ground faults.
What does dual function mean for NEC compliance?
A dual-function circuit breaker provides both Combination Type Arc-Fault Circuit Interrupter (AFCI) and Class A 5mA Ground-Fault Circuit Interrupter (GFCI) protection in a single device. This meets NEC requirements for circuits that require both types of protection, such as those in kitchens and laundry rooms.
Can I connect two wires to the load terminal of this breaker?
Yes, the box lug terminal is rated to accept either one 14-8 AWG wire or two 14-10 AWG wires. Both copper and aluminum conductors are supported.
