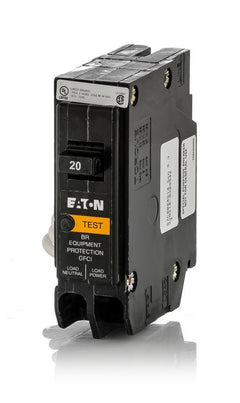

Eaton / Cutler-Hammer GFEP120 GFEP Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
GFEP120
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFEP120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFEP120 - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFEP Miniature Circuit Breaker
20A GFEP Miniature Circuit Breaker
Description
Part of the BR family, the Eaton GFEP120 delivers 30mA ground fault equipment protection for 20A circuits. It safeguards heat tracing and machinery where a 5mA personnel GFCI might cause nuisance tripping. This plug-on breaker features a pigtail neutral connection, making it compatible with standard Eaton and Cutler-Hammer Type BR load centers. It is the direct predecessor to the newer BRN120EP series. Rated at 10 kAIC for 120VAC systems, the unit is HACR and SWD rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GFEP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
The Eaton GFEP120 provides Ground Fault Equipment Protection with a 30mA trip threshold. Standard GFCI breakers trip at 5mA for personnel protection. This 30mA rating prevents nuisance tripping on equipment like heat tracing, snow melting systems, or dedicated machinery.
Which load centers are compatible with the GFEP120 circuit breaker?
This breaker is designed for Eaton Type BR load centers. It is also UL approved for use in legacy Westinghouse, Challenger, Bryant, and Cutler-Hammer BR series panels.
How is the neutral connected on the GFEP120?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be routed and secured directly to the neutral bar in your panel for the ground fault protection to function correctly.
Does the GFEP120 replace older Cutler-Hammer equipment protection breakers?
Yes, this unit directly replaces older Cutler-Hammer and Bryant 20A single-pole GFEP breakers with the same BR footprint. Note that Eaton has also introduced the BRN120EP as a newer, compact-body alternative.
Can I use the GFEP120 for residential bathroom or kitchen outlets?
No. The National Electrical Code requires 5mA Class A GFCI protection for personnel in bathrooms, kitchens, and similar areas. This 30mA GFEP breaker is strictly for equipment protection and does not meet the code requirements for personnel safety.
