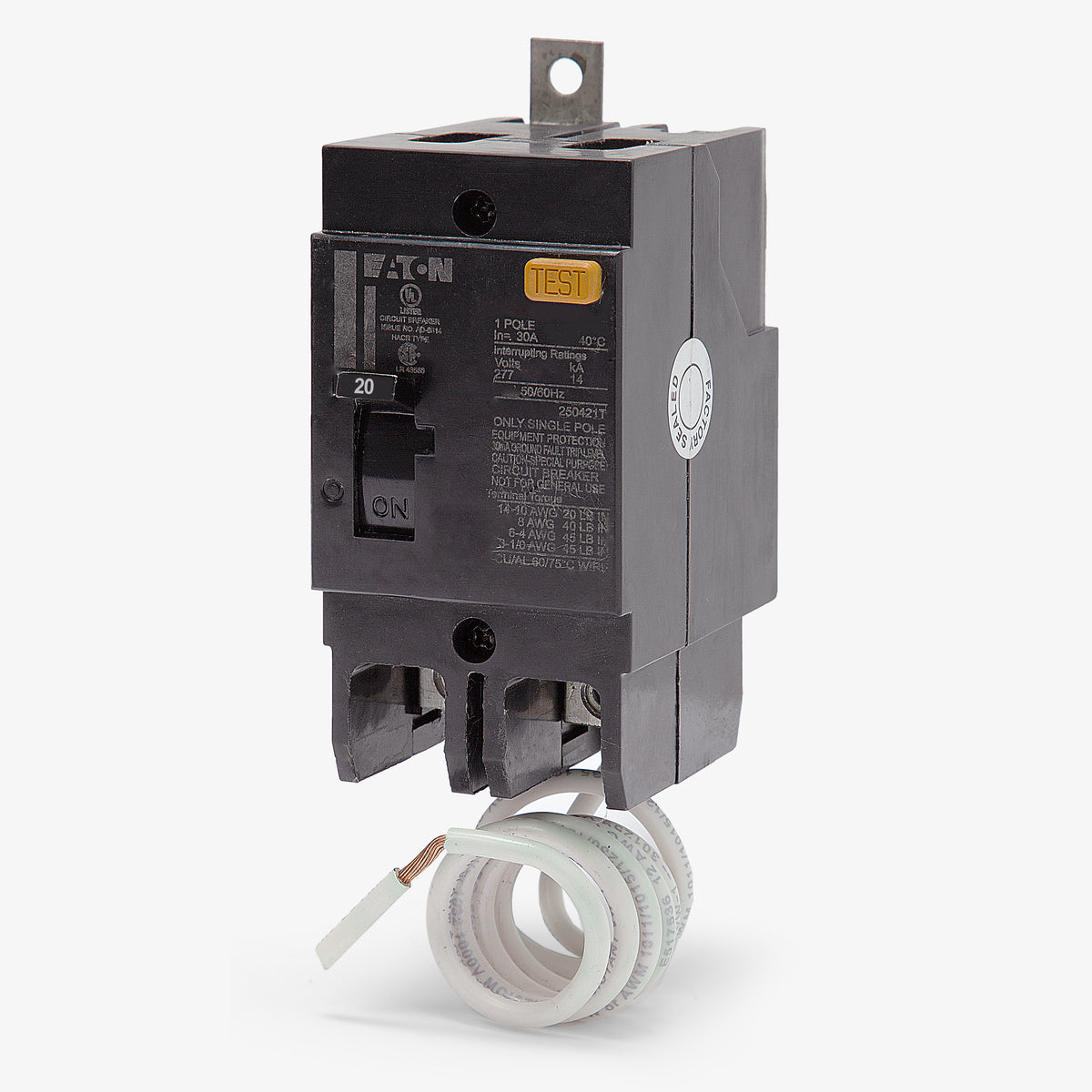

Eaton / Cutler-Hammer GHBGFEP1020 GFEP Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer GHBGFEP1020 - 20A GFEP Molded Case Circuit Breaker
New
Quantity
Description
Designed to prevent equipment damage from low-level electrical faults, the Eaton GHBGFEP1020 features a 30mA ground-fault trip threshold. This 1-pole, 20A molded case circuit breaker utilizes a fixed thermal-magnetic trip unit to deliver reliable long-time and instantaneous protection. It installs securely into Eaton Pow-R-Line (PRL2a, PRL3a) and Series C panelboards via a bolt-on connection. Rated for 14 kAIC at 277VAC, this G-Frame breaker is HACR and SWD rated for versatile applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards (PRL2a, PRL3a), Eaton Series C Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersWhat is the ground fault trip sensitivity for this breaker?
The GHBGFEP1020 provides Ground Fault Equipment Protection (GFEP) with a 30mA trip sensitivity level. It is designed to protect machinery and equipment from damaging arcing faults and is not intended for the 5mA personnel protection required of Class A GFCIs.
How many panel spaces does this single-pole breaker require?
Although it operates as a 1-pole 20A breaker, the GHBGFEP1020 physically requires two pole spaces in the panelboard. The additional space is necessary to accommodate the internal ground fault detection electronics.
What panelboards accept the GHBGFEP1020 breaker?
This G-frame breaker is designed to bolt directly into Eaton Pow-R-Line panelboards, specifically the PRL2a and PRL3a series, as well as Eaton Series C panelboards.
Will the ground fault detection operate on a 120V or 208V circuit?
No. The internal ground fault circuitry is designed specifically for 277VAC systems and requires a minimum of approximately 235VAC to power up. If applied at lower voltages, the breaker will only function as a standard thermal-magnetic overcurrent device and will not detect ground faults.
How do I wire the neutral connection for this breaker?
This breaker features a pigtail neutral wire that must be routed and connected to the neutral bar of the panelboard. This connection provides the necessary reference and power for the internal ground fault monitoring circuitry to function correctly.
What does the LIG trip function indicate on the GHBGFEP1020?
The LIG designation means this breaker is equipped with Long-Time (thermal overload), Instantaneous (magnetic short-circuit), and Ground-Fault trip functions. Both the thermal and magnetic protection levels are fixed, while the equipment ground fault protection triggers at a pre-set 30mA threshold.
