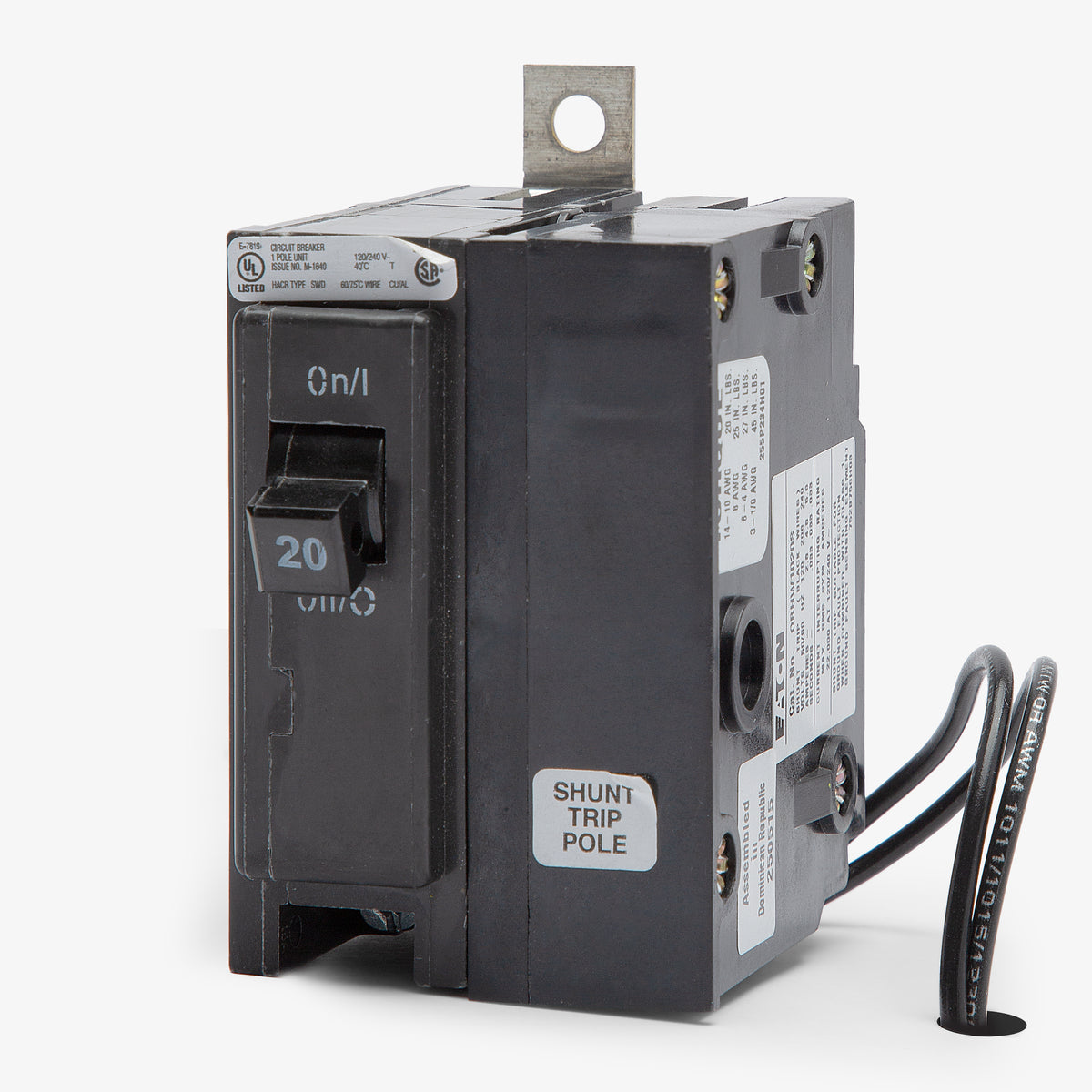

Eaton / Cutler-Hammer QBHW1020S Miniature Circuit Breaker
- 20A
- 1 Pole

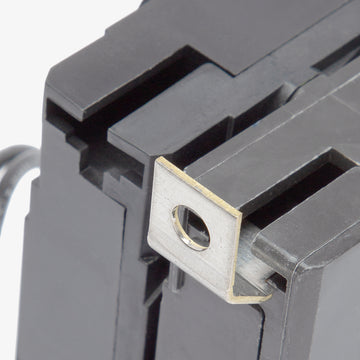

- Bolt-On
Quantity
Eaton / Cutler-Hammer QBHW1020S - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Delivering advanced control, the Eaton QBHW1020S is a single-pole, 20-amp miniature circuit breaker. It is specifically designed for commercial and industrial applications requiring remote shutdown capabilities. This Quicklag series breaker features a bolt-on mounting design for seamless integration into Eaton Pow-R-Line panelboards. It utilizes box lugs that accept 14-4 AWG wire sizes.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBHW |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|

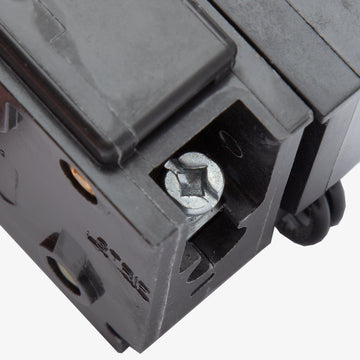

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat does the S suffix mean in the QBHW1020S catalog number?
The S suffix indicates this breaker includes a factory-installed shunt trip. This allows the breaker to be tripped remotely using a 120V, 208V, or 240V AC control signal.
Does the shunt trip on the QBHW1020S require additional panel space?

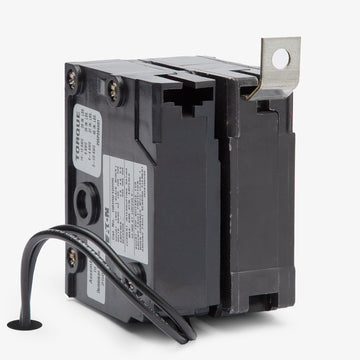

Yes. The factory-installed shunt trip module is attached to the right-hand side of the breaker. Because of this, the 1-pole breaker will occupy two pole spaces in your panelboard.
Which panelboards are compatible with the QBHW1020S?
This bolt-on breaker is designed for Eaton Pow-R-Line panelboards, such as the PRL1a and PRL2a series, that accept BAB or QBHW frame breakers.
How does the QBHW series differ from standard BAB breakers?
Both are bolt-on Quicklag breakers that fit the same panels, but the QBHW series features a higher interrupting rating of 22kAIC. Standard BAB breakers are rated at 10kAIC.
Is the QBHW1020S rated for switching fluorescent lighting loads?
Yes, standard 15A and 20A Eaton Quicklag breakers carry an SWD (Switching Duty) rating, making them suitable for controlling 120V fluorescent lighting circuits.
Is this breaker HACR rated for HVAC applications?
Yes, the QBHW1020S is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific protection.
