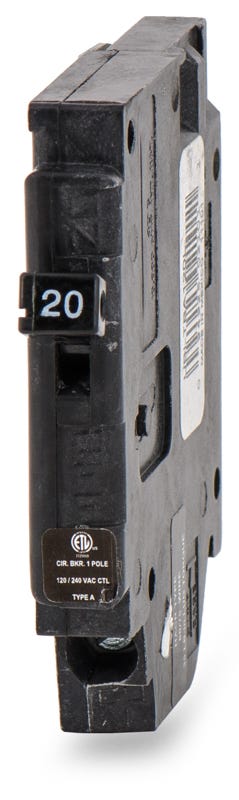

Eaton / Crouse-Hinds TBA120 UBIL - 20A 1 Pole Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Quantity
Eaton / Crouse-Hinds UBITBA120L - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Part of the UBITBA classified series, this 1-pole 20-amp miniature breaker delivers reliable thermal-magnetic protection for residential systems. Engineered as a drop-in replacement, it substitutes legacy A120, MH120, and MP120 breakers. The unit installs into Thomas & Betts Type A, Crouse-Hinds Type MH, and Murray Type MP load centers. A 1/2-inch wafer design maximizes available panel space while the left clip ensures proper bus connection. It is fully HACR rated for HVAC applications.Specifications
| Brand | Eaton / Crouse-Hinds |
|---|---|
| Part Number | TBA120-R |
| Series | UBITBA |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type A Load Centers, Crouse-Hinds Type MH Load Centers, Murray Type MP Load Centers, Thomas & Betts Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Left Clip Mounting (Factory Configured) |
|---|---|
| Standards | UL 489 |
| Approval | ETL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersWhich load centers are compatible with the UBITBA120L breaker?
This plug-on breaker is classified for use in Challenger Type A, Crouse-Hinds Type MH, Murray Type MP, and Thomas & Betts Type A load centers.
What does the L designation mean on the UBITBA120L?
The L indicates a left-side mounting clip. Because these are half-inch thin breakers, panels often require a specific left clip or right clip (UBITBA120R) depending on the physical slot position being populated.
Can I use this to replace obsolete Challenger or Crouse-Hinds breakers?
Yes, the UBITBA series is manufactured as a direct, safety-agency-listed replacement for older Challenger Type A and Crouse-Hinds Type MH circuit breakers.
Are UBITBA classified replacement breakers safety certified?
Yes, these replacement breakers are ETL listed to UL Standard 489 for molded case circuit breakers, ensuring they meet current safety requirements for use in specified older panels.
