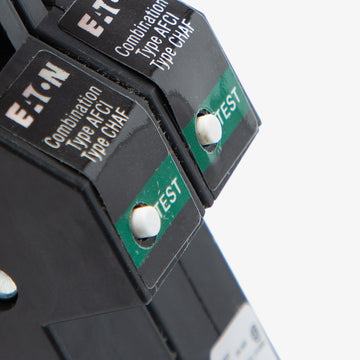

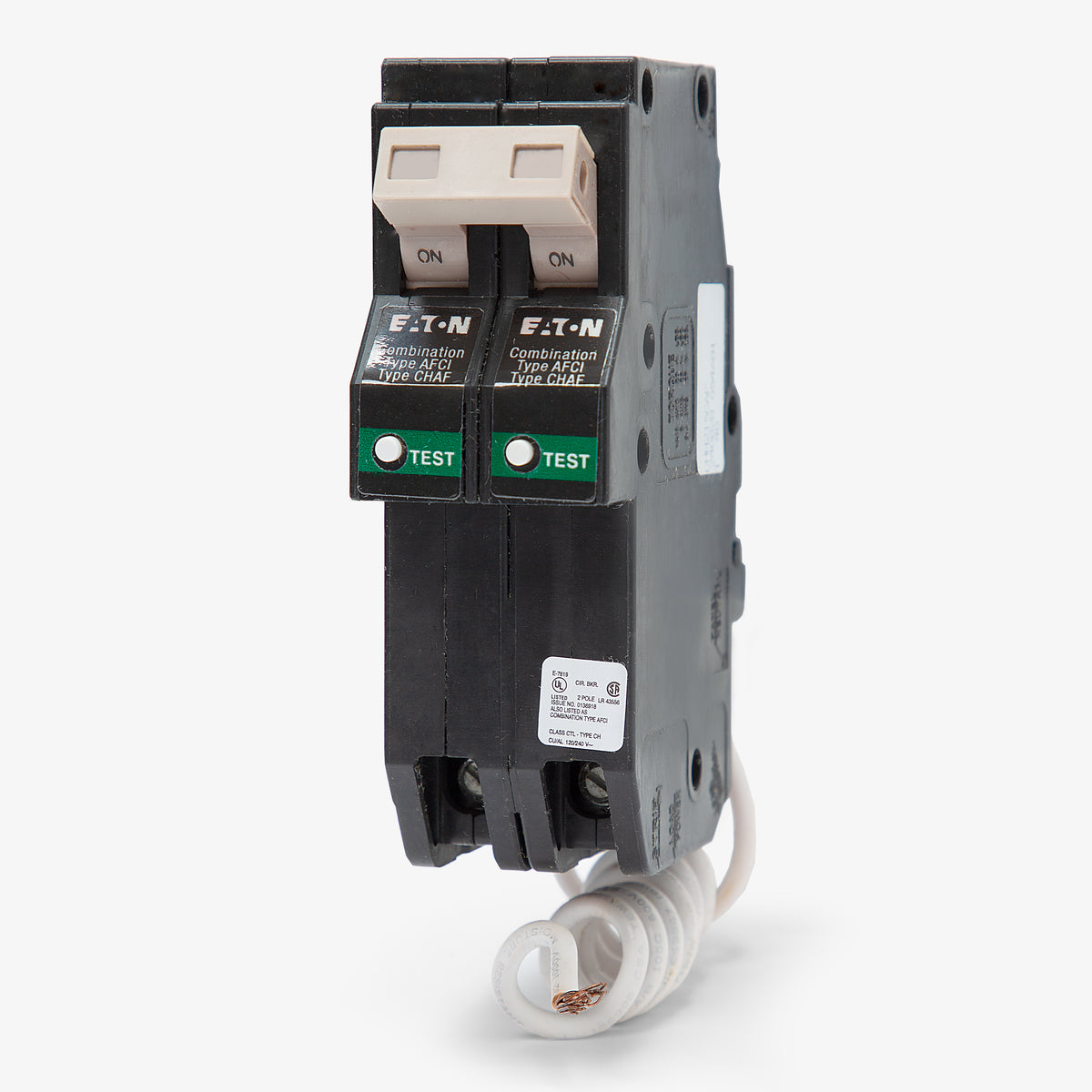

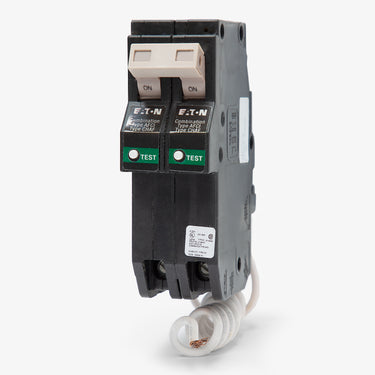

Eaton / Cutler-Hammer CHN215CAF AFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHN215CAF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Description
Rated for 15 amps at 120/240VAC, the Eaton CHN215CAF provides two-pole combination arc-fault protection for residential and light commercial applications. This thermal-magnetic breaker delivers a 10kAIC interrupt rating and includes a pigtail neutral wire for reliable installation. It mounts into Eaton CH load centers and Type CH plug-on neutral panels, replacing the older CH215CAF. The unit features a trip-to-center handle and an LED trip indicator to quickly diagnose fault conditions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHN215CAF |
| Series | CHN |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 5, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, LED Trip Indicator, Self-Test |
Product FAQs
7 answersWhat panels are compatible with the CHN215CAF circuit breaker?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It occupies two 3/4-inch spaces in the panel.
Can I install this pigtail neutral breaker in a Type CH plug-on neutral load center?

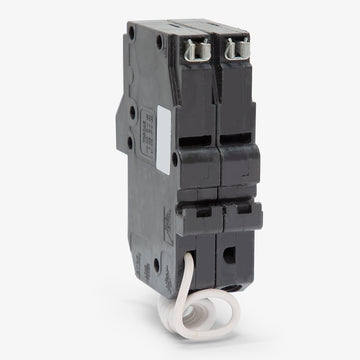

Yes. While this breaker features a pigtail neutral connection that must be manually terminated at the neutral bar, it is fully compatible with both standard and plug-on neutral Type CH load centers. The pigtail does not interfere with the plug-on neutral rail.
Is the CHN215CAF a direct replacement for the CH215CAF?
Yes, the CHN215CAF replaces the older CH215CAF catalog number. It provides the same 2-pole combination arc fault (CAFCI) protection for Type CH panels.
How does the LED trip indicator function on this breaker?
The built-in LED indicator displays specific trip codes to help electricians diagnose the cause of a fault. These codes are stored in the breaker memory to simplify troubleshooting arc faults versus standard overloads.
How can I tell if the breaker has tripped versus being manually turned off?

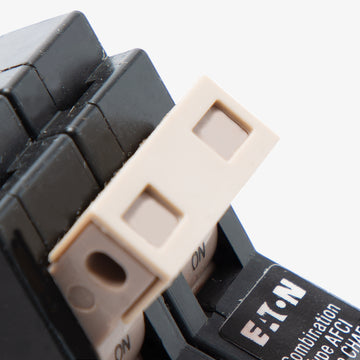

The CHN215CAF features a trip-to-center handle position and a trip flag indicator. This allows you to easily differentiate between a tripped state and a breaker that has been manually switched off.
Does this 2-pole AFCI breaker feature a common trip mechanism?
Yes, it includes an internal common trip connection. If a fault is detected on either leg, both poles will open simultaneously to disconnect power to the entire circuit.
What is the difference between standard AFCI and combination AFCI (CAFCI) protection?
Combination AFCI breakers like this model detect both high-current parallel arcing faults (line-to-neutral or line-to-ground) and persistent low-current series arcing faults down to 5 amps, offering more comprehensive fire hazard mitigation.
