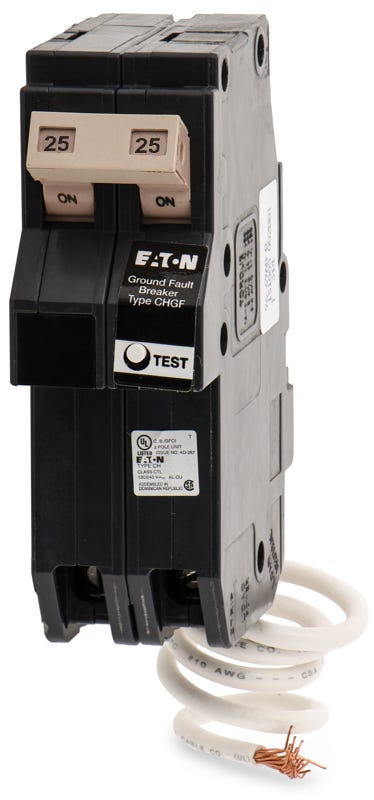

Eaton / Cutler-Hammer CH225GFT GFCI Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH225GFT
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH225GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH225GFT - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Delivering 5mA Class A personnel protection, the CH225GFT incorporates self-test diagnostics to ensure continuous safety compliance. It mounts into standard 3/4-inch Eaton CH load centers, utilizing a pigtail neutral connection for reliable ground-fault detection. Meeting NEC requirements for wet or damp locations, this two-pole thermal-magnetic device provides both overload and short-circuit defense alongside its primary life-safety function.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH225GFT |
| Series | CH |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Self-Test |
Product FAQs
8 answersWill the CH225GFT fit in a Cutler-Hammer BR series panel?
No. The CH225GFT is designed exclusively for Type CH load centers. It is not interchangeable with BR series panels or panels from other manufacturers.
Can I use this breaker in an older Cutler-Hammer CH panel?
Yes. Eaton and Cutler-Hammer CH series breakers are fully interchangeable. The CH225GFT will fit any standard 3/4-inch Type CH load center.
How does the neutral connection work on the CH225GFT?
This breaker features a pigtail neutral. The coiled white wire must be connected directly to the panel neutral bus bar to power the ground fault sensing circuitry.
Does a straight 240V load without a neutral wire still require the pigtail connection?
Yes. The pigtail neutral must be connected to the panel neutral bar to supply 120V power to the internal ground fault sensing circuit of the breaker, regardless of whether the load itself utilizes a neutral.
What is the ground fault trip threshold for this breaker?
The CH225GFT provides Class A personnel protection, meaning it is designed to trip when it detects a ground fault current of 5mA.
Does the CH225GFT include a self-test feature?
Yes. This breaker incorporates self-test diagnostics that routinely verify the ground fault protection circuitry is functioning correctly to ensure continuous safety compliance.
Is the Eaton CH225GFT the same as the Cutler-Hammer CH225GFT?
Yes. Eaton acquired Cutler-Hammer, and the CH225GFT catalog number remains identical. They are the exact same breaker and are fully interchangeable.
What is the difference between the CH225GFT and CH225EPD?
The CH225GFT provides 5mA Class A personnel protection. The CH225EPD is an Equipment Protection Device designed to trip at a 30mA threshold.
