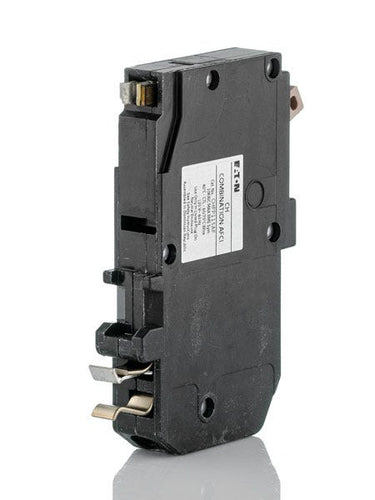

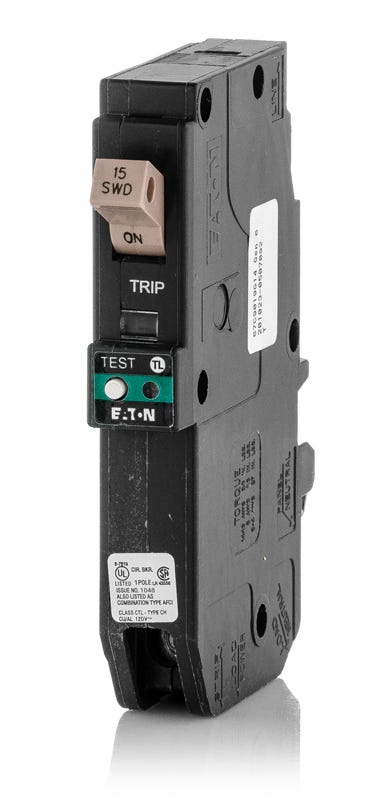

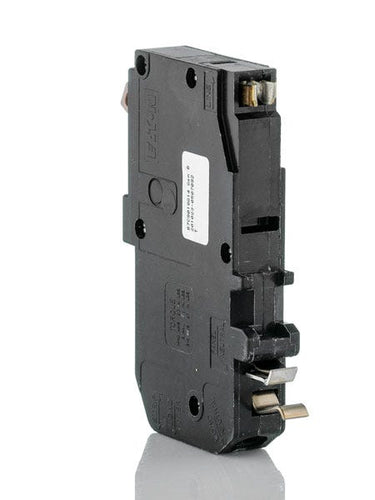

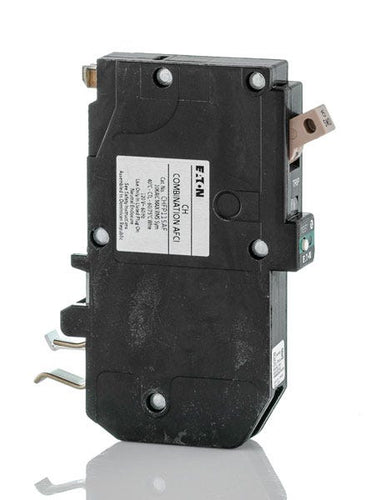

Eaton / Cutler-Hammer CHFP115DF Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHFP115DF - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Description
Built for efficient installations, the CHFP115DF combines arc-fault and ground-fault protection into a single 15A device. The plug-on neutral design eliminates the pigtail wire, reducing gutter clutter. This 1-pole breaker installs into Eaton CH plug-on neutral load centers. It replaces older models like the CHFPAFGF115 and CHFAFGF115PN. Operating at 120V with a 10 kAIC rating, it features a short body profile, self-test capabilities, and an LED indicator to identify trip causes.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Plug-On Neutral Pigtail Elimination |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
7 answersCan I install the Eaton CHFP115DF in any CH series panel?
No. The CHFP115DF features a plug-on neutral design and must be installed in an Eaton CH Plug-On Neutral load center. It will not fit older CH panels that require a pigtail connection.
Will this breaker fit in an Eaton BR or Square D panel?
No. The CHFP115DF is specifically designed for Eaton CH series load centers. CH breakers have a 3/4-inch width per pole, which is incompatible with 1-inch formats like Eaton BR or Square D Homeline.
How does the plug-on neutral connection work on the CHFP115DF?
The breaker clips directly onto the neutral bar in a compatible Eaton CH Plug-On Neutral panel. This eliminates the need to wire a separate neutral pigtail, reducing gutter clutter and speeding up installation.
What does the red LED on the CHFP115DF indicate?
The red LED is a diagnostic tool that blinks a specific number of times to indicate the cause of the most recent trip, such as an arc fault or ground fault. If the LED remains solidly lit without tripping, Eaton notes this is a cosmetic firmware variation and does not affect the breaker's protective functions.
What does Dual Function mean for this circuit breaker?
A dual function breaker combines both Arc Fault Circuit Interruption (AFCI) and Ground Fault Circuit Interruption (GFCI) into a single device. This provides protection against electrical fires caused by arcing and shock hazards caused by ground faults, meeting NEC requirements for areas like kitchens and laundry rooms.
What is the pigtail equivalent of the CHFP115DF?
If your panel does not support plug-on neutral breakers, you will need the pigtail version, which is catalog number CHFN115DF.
Does the CHFP115DF replace older Eaton dual function breakers?
Yes, the CHFP115DF replaces older Eaton CH plug-on neutral dual function models, including the CHFPAFGF115 and CHFAFGF115PN.
