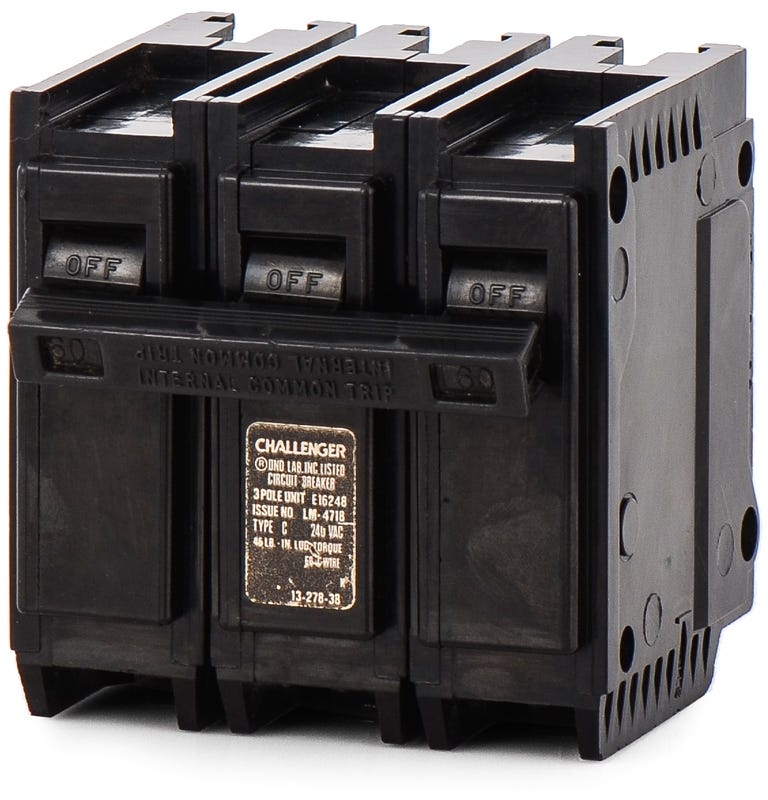

Eaton / Challenger C360 Miniature Circuit Breaker
- 60A
- 3 Pole
- Plug-On
Quantity
Eaton / Challenger C360 - 60A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Description
Managing demanding three-phase loads, this 60-amp device offers robust thermal-magnetic protection for commercial environments. It ensures stable operation across various 240VAC distribution networks. Designed to maintain older electrical infrastructure, it mounts into Challenger Type C and Westinghouse BR panelboards without modifications. Facility managers frequently utilize this exact fitment, though the BR360 remains a valid substitute.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Part Number | C360-R |
| Series | C |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type C Load Centers, Eaton Type BR Load Centers, Westinghouse Type BR Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | UL 489 |
|---|---|
| Approval | HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
4 answersCan I install the Challenger C360 in an Eaton BR load center?
Yes. Eaton acquired Challenger and integrated their product lines. This breaker is UL listed for use in Eaton Type BR, Westinghouse Type BR, and Challenger Type C load centers.
What is the modern replacement for the Challenger C360?
The Eaton BR360 is the direct modern equivalent. Eaton manufactures the BR line to replace legacy Challenger C series breakers, making the BR360 fully compatible and UL listed for the same panelboards.
How much panel space does the C360 require?
This three-pole breaker requires three standard 1-inch spaces in your load center.
Is the C360 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with compatible heating, air conditioning, and refrigeration equipment.
