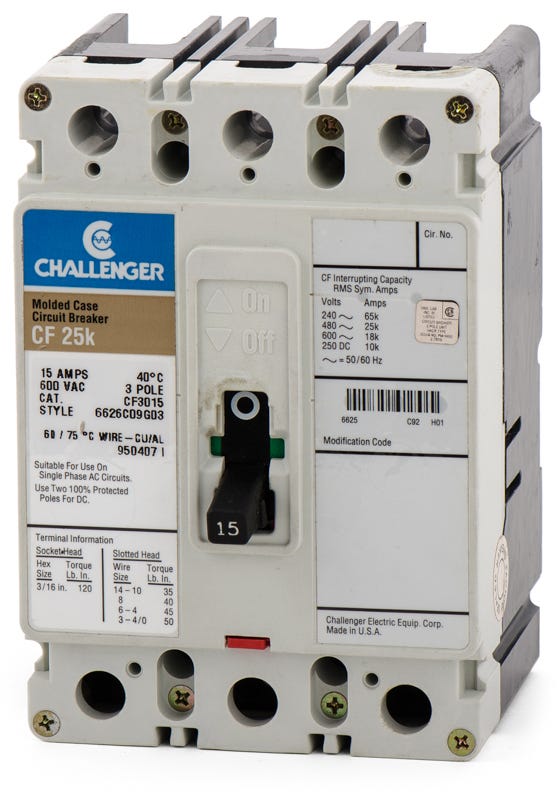

Eaton / Challenger CF3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Quantity
Eaton / Challenger CF3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy CF frame series, the Eaton CF3015 is a 3-pole, 15A molded case circuit breaker built for commercial and industrial applications. It delivers reliable thermal-magnetic protection for systems up to 600VAC. Designed for seamless integration, this unit mount breaker installs into older Challenger, Eaton, and Westinghouse panelboards. It serves as an exact replacement for the FD3015, ensuring a proper fit without modification kits.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Part Number | CF3015-R |
| Series | CF |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Challenger Panelboards, Eaton Panelboards, Westinghouse Panelboards |
| Wire Gauge | #14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan I install the CF3015 in a modern Eaton load center?
The CF3015 is a legacy CF frame breaker designed specifically for older commercial Challenger, Westinghouse, and Eaton Cutler-Hammer panelboards. It will not fit in standard residential Eaton load centers that require BR or CH type breakers.
What type of wire can I use with the CF3015 lugs?
The standard lugs accept 14 AWG to 1/0 AWG wire. You can use either copper or aluminum conductors, provided they meet the temperature ratings and specifications of your panelboard and local electrical codes.
What is the current Eaton replacement for the legacy Challenger CF3015?
The Eaton FD3015 is the direct replacement for the CF3015. It is an F-frame breaker that fits the same mounting footprint in legacy panelboards without requiring any modification kits.
Does the CF3015 plug onto the busbar?
No, this is a unit mount, bolt-on circuit breaker. It requires physical bolted connections to the panelboard bus and does not snap or plug into place.
Is the CF3015 suitable for direct current applications?
Yes, while primarily used in AC systems up to 600VAC, this breaker is also fully rated for DC applications up to 250VDC with a 10kA interrupting capacity.
Are the trip settings on the CF3015 adjustable?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) settings. Neither the overload nor the short-circuit trip points can be adjusted in the field.
