Eaton / Challenger D50373-3 Molded Case Switch
Quantity
Core Specs
See full specs

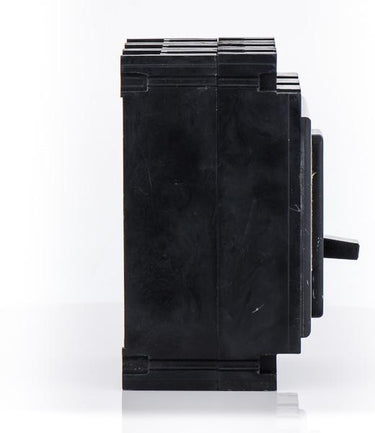

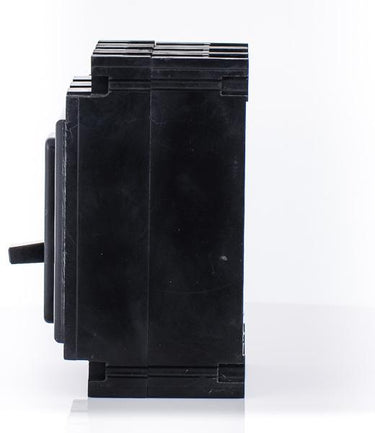

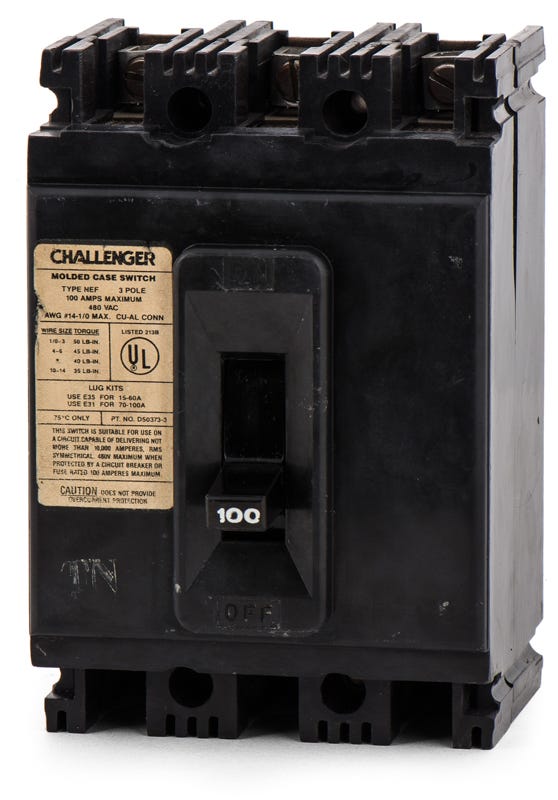

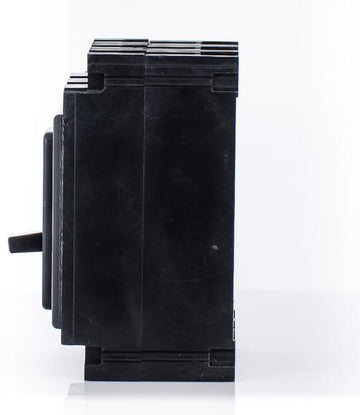

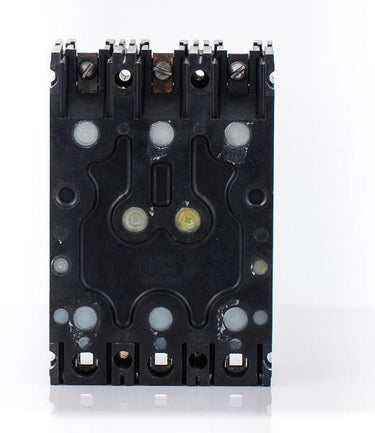

Eaton / Challenger D50373-3 - 100A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Part of the legacy NEF series, the Eaton D50373-3 serves as a 100A non-automatic molded case switch for commercial and industrial applications. It provides manual switching and circuit isolation rather than overcurrent protection. This 3-pole, bolt-on disconnect mounts into Challenger, Westinghouse, and Eaton Pow-R-Line C panelboards. It serves as an exact drop-in replacement for discontinued systems, requiring no adapters to install.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Part Number | D50373-3-R |
| Series | NEF |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Challenger Panelboards, Eaton Pow-R-Line C Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 1087 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect) |
