Eaton / Cutler-Hammer BR270ST Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BR270ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR270ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

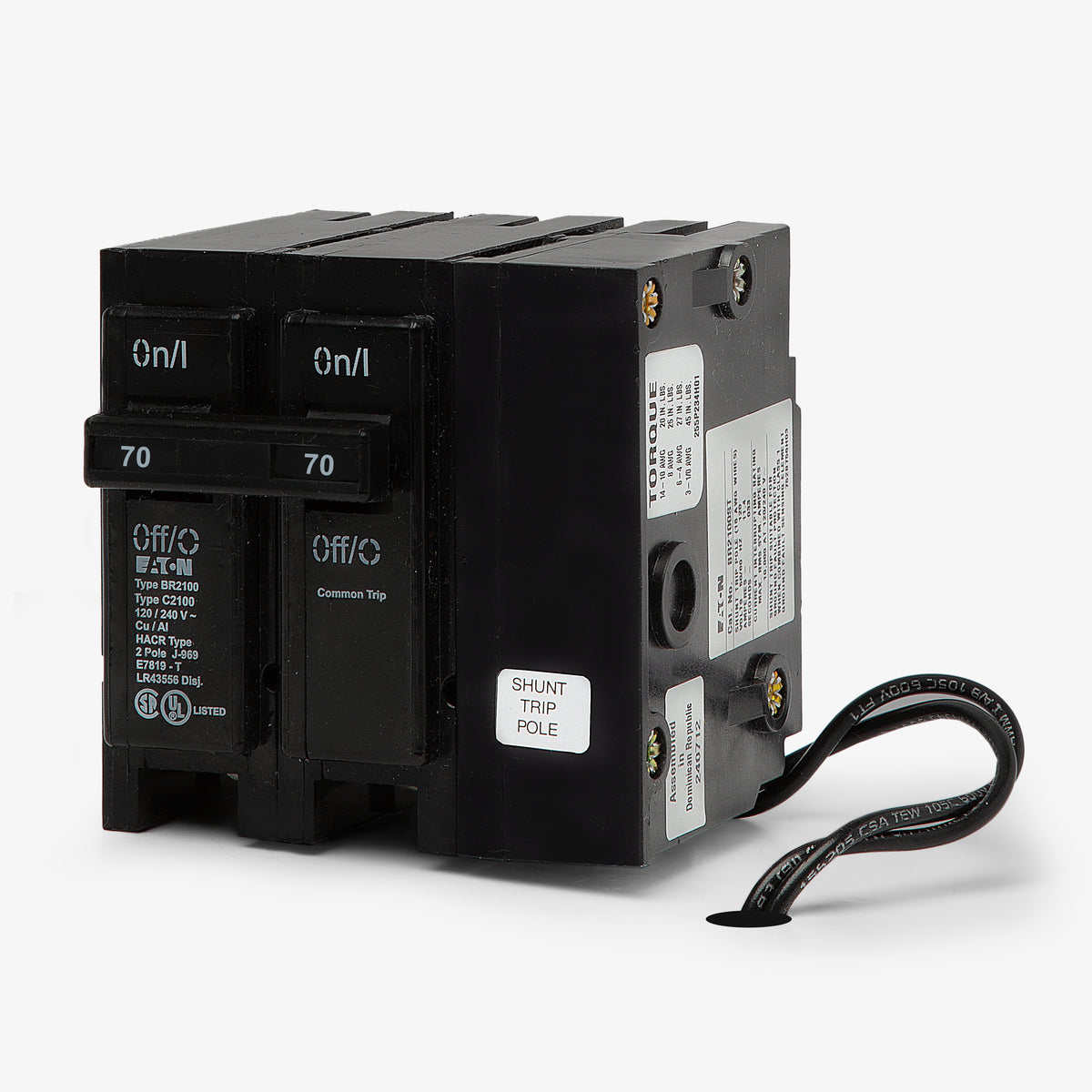

Eaton / Cutler-Hammer BR270ST - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description

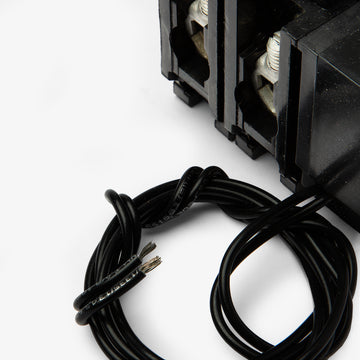

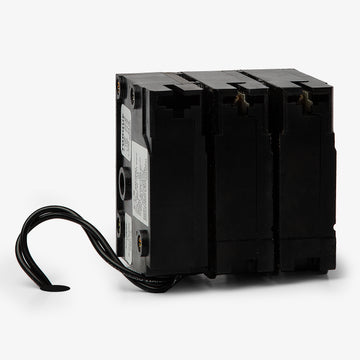

Engineered for reliable remote shutdown applications, the Eaton BR270ST is a 70A, 2-pole miniature circuit breaker. It features a factory-installed 120/240VAC shunt trip, allowing the breaker to be tripped remotely using an external switch or safety relay. This plug-on breaker requires three inches of panel space and mounts into Eaton or legacy Bryant Type BR load centers. Delivering a 10kAIC rating, it provides standard thermal-magnetic protection alongside its remote trip functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR270ST |
| Series | BR |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | Federal Specification W-C-375, UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated, Requires 4 Pole Spaces |
Product FAQs
6 answersWhat panels are compatible with the BR270ST circuit breaker?
This breaker is designed for Eaton and Cutler-Hammer Type BR load centers. It is also compatible with legacy Bryant panels that accept Type BR plug-on breakers.
How many panel spaces does the BR270ST require?
The BR270ST requires three 1-inch panel spaces. The 2-pole breaker takes up two spaces, and the factory-installed shunt trip requires one additional space.
Can I add a shunt trip to a standard 70A BR breaker in the field?
No, shunt trips cannot be field-installed on Eaton BR series miniature circuit breakers. You must purchase a model with a factory-installed shunt trip, such as the BR270ST.
How does the shunt trip function on the BR270ST?
The factory-installed shunt trip allows the breaker to be opened remotely. When voltage is applied to the shunt trip coil via an external switch, relay, or emergency stop system, it mechanically trips the breaker to disconnect power.
Is the BR270ST interchangeable with Square D Homeline or Siemens QP breakers?
No. While they share a 1-inch per pole footprint, Type BR breakers are not UL listed for use in Square D, Siemens, or GE load centers. They must only be installed in compatible Eaton, Cutler-Hammer, or Bryant panels.
What does the ST suffix indicate on this Eaton breaker?
The ST suffix designates that the circuit breaker includes a factory-installed shunt trip mechanism for remote shutdown capabilities.
