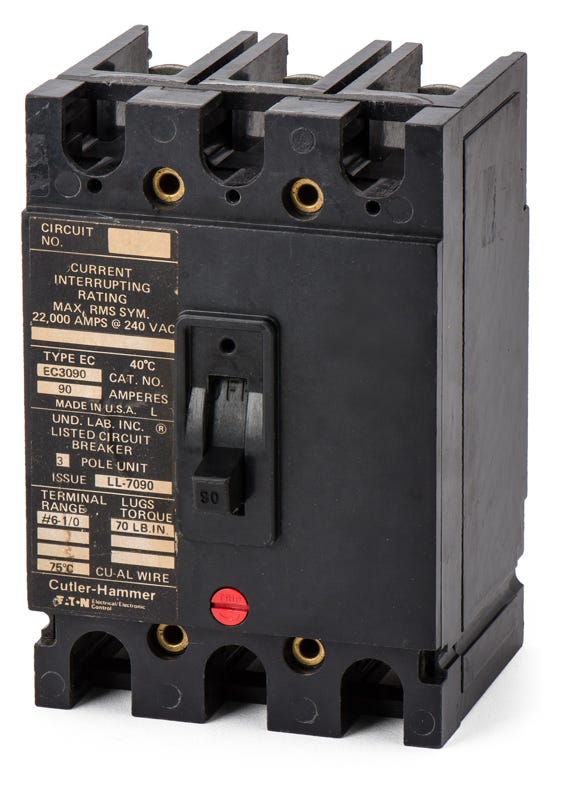

Eaton / Cutler-Hammer EC3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EC3090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EC3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EC3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy Westinghouse E-Frame family, this 90A Eaton Cutler-Hammer MCCB provides reliable power distribution for commercial and industrial facilities. It is specifically designed to mount into older CS5, MP40, MP100, MP200 panelboards, and EE switchboards. As an obsolete EC series unit, it can be substituted with the modern EHD3090. Rated for 10 kAIC at 240VAC, the breaker features fixed thermal-magnetic trip units and includes load-side lugs for immediate wire termination.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EC3090-R |
| Series | EC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer CS5 Panelboards, MP40 Panelboards, MP100 Panelboards, MP200 Panelboards, EE Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
