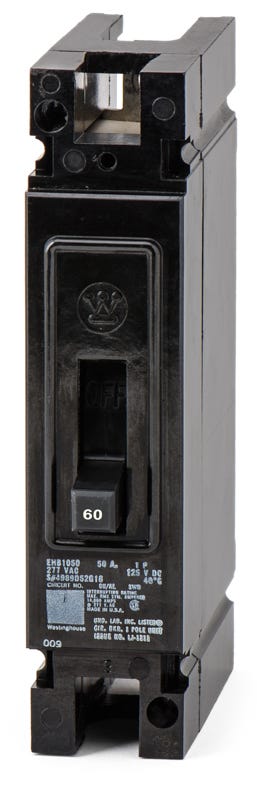

Eaton / Cutler-Hammer EHB1060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EHB1060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for 277VAC commercial systems, the EHB1060 is a 60A molded case circuit breaker from Eaton's legacy E-Frame family. This bolt-on unit mounts into Eaton Pow-R-Line C and vintage Westinghouse panelboards. It is officially replaced by the EHD1060 for modern upgrades. Featuring a 14kAIC rating at 277V, it includes fixed long-time and instantaneous trip functions. The HACR-rated design ensures safe operation for HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB1060 |
| Series | EHB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug Terminals |
| Standards | UL 489, CSA C22.2 No. 5.1, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
9 answersWhat panelboards are compatible with the EHB1060 circuit breaker?
This bolt-on breaker is designed for use in current Eaton Pow-R-Line C panelboards as well as legacy Westinghouse F-Frame panelboards.
Is there a modern replacement for the legacy EHB1060?
Yes, Eaton officially replaced the legacy EHB series with the EHD series. The EHD1060 serves as the direct modern replacement for this breaker.
Will this breaker replace an older Westinghouse EHB1060?
Yes. Eaton acquired the Westinghouse distribution equipment line. An Eaton or Cutler-Hammer EHB1060 is the exact same form and fit as a vintage Westinghouse breaker with the same catalog number.
Is the EHB1060 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment loads.
How does the EHB1060 connect to the panelboard bus?
It features a bolt-on connection type, meaning it physically bolts directly to the panelboard busbars rather than snapping into place.
Can the EHB1060 be used in DC circuits?
Yes, in addition to its 120/277VAC rating, this breaker is rated for 125VDC applications with a 10kA interrupting capacity.
What size wire do the lugs on the EHB1060 accept?
The standard load-side lugs on this breaker are designed to accept wire gauges ranging from 14 AWG up to 1/0 AWG.
Are the trip settings adjustable on the EHB1060?
No, this breaker features a fixed thermal magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Will the EHB1060 trip if the handle is held in the ON position?
Yes, it features a trip-free mechanism. This safety feature ensures the breaker will still open the circuit during an overload or short circuit, even if the handle is physically restricted.
