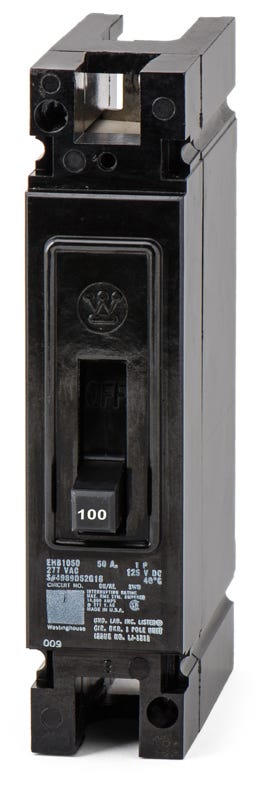

Eaton / Cutler-Hammer EHB1100 Molded Case Circuit Breaker
- 100A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EHB1100 - 100A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Serving as a 100A solution, this 1-pole E-Frame MCCB provides overcurrent protection for 277VAC commercial systems using fixed thermal-magnetic trip elements. Engineered for bolt-on installation, it mounts into Eaton Pow-R-Line 4B and legacy Westinghouse panelboards. Facilities can substitute this unit with the modern EHD1100. The breaker features a 14kAIC rating at 277VAC to safely clear faults. Its HACR designation ensures compliance when protecting heavy-duty HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB1100 |
| Series | EHB |
| Amperage | 100A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 4B Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lug Terminals |
| Standards | UL 489, CSA C22.2 No. 5.1, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards accept the EHB1100 circuit breaker?
This E-Frame breaker is designed to bolt directly into Eaton Pow-R-Line 4B panelboards as well as legacy Westinghouse panelboards.
Is the Eaton EHB1100 still in active production?
The EHB series is a legacy product line that has been phased out by the manufacturer. For a modern replacement, facilities can substitute this unit with the Eaton EHD1100 molded case circuit breaker.
What is the required wire size for the EHB1100 terminals?
The factory lugs on this breaker accept wire gauges from 14 AWG up to 1/0 AWG. Always verify that the wire material and size match the load requirements and are torqued to the manufacturer specifications.
How does the thermal-magnetic trip unit operate on the EHB1100?
The breaker features fixed Long-Time and Instantaneous (LI) trip functions. The thermal component responds to sustained overcurrents by heating a bimetallic strip, while the magnetic component reacts instantly to high-level short circuits.
Is the EHB1100 rated for direct current (DC) systems?
Yes, while primarily used in 277VAC commercial systems, this breaker is also rated for 125VDC applications, providing a 10kA interrupting capacity for DC control circuits and loads.
Is the EHB1100 suitable for HVAC applications?
Yes, this breaker carries an HACR designation, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment loads.
What precautions are necessary when installing the EHB1100?
Installation must be performed by a qualified electrician. Because this is a bolt-on breaker, the panelboard must be completely de-energized before mounting the unit to the busbar to prevent arc flash hazards and ensure a secure mechanical connection.
