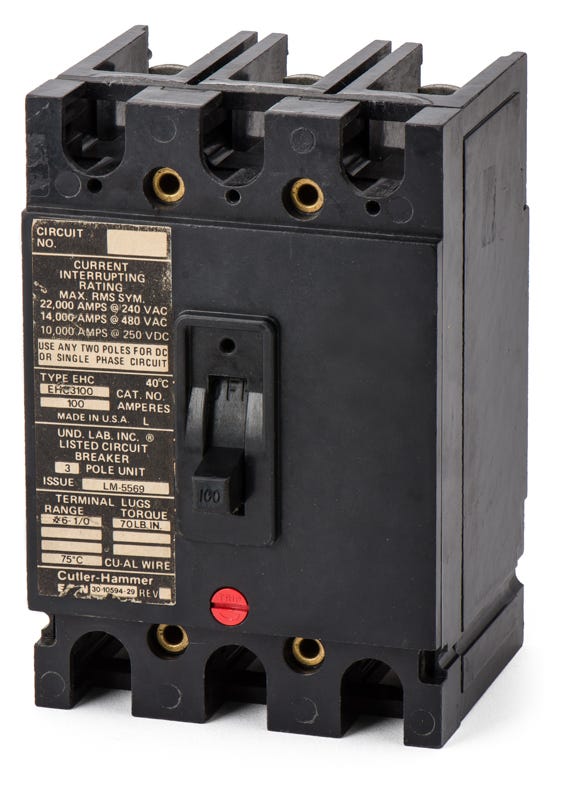

Eaton / Cutler-Hammer EHC3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHC3100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHC3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHC3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Operating as a core component of the Series C family, the Eaton EHC3100 is a 100A molded case circuit breaker. It delivers consistent protection for commercial networks. The three-pole breaker features a robust bolt-on design, integrating into Eaton Series C panelboards. For modern upgrades, this unit is cross-referenced with the EHD3100. It provides a 14 kAIC interrupting rating at 480VAC to safely clear faults. The breaker also includes an HACR rating for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHC3100-R |
| Series | EHC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhat equipment is compatible with the EHC3100 breaker?
The EHC3100 is designed for use in Eaton and Cutler-Hammer Series C panelboards, switchboards, and motor control centers that accept F-Frame bolt-on breakers.
What is the direct replacement or cross-reference for the EHC3100?
The EHD3100 is the standard modern cross-reference for the EHC3100. Both are 100A, 3-pole, F-Frame breakers with identical physical dimensions and a 14kAIC rating at 480VAC.
What wire sizes do the standard lugs on the EHC3100 accept?
The factory load-side lugs on this breaker accommodate wire ranging from 14 AWG up to 1/0 AWG.
Is the EHC3100 rated for use in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for DC applications, providing up to a 10kA interrupting capacity at 250VDC.
Are accessories interchangeable between the EHC3100 and other Series C F-Frame breakers?
Yes. Because the EHC3100 is built on the standard Eaton Series C F-Frame platform, it shares physical dimensions and accepts the same internal accessories, such as shunt trips and auxiliary switches, as EHD, FD, and HFD breakers.
How does the EHC3100 mount into the panelboard?
This is a bolt-on circuit breaker. It secures directly to the panelboard bus using bolted connections rather than snapping into place, providing a secure, vibration-resistant installation.
What type of trip functions does the EHC3100 provide?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions (LI). This provides standard overload and short-circuit protection.
